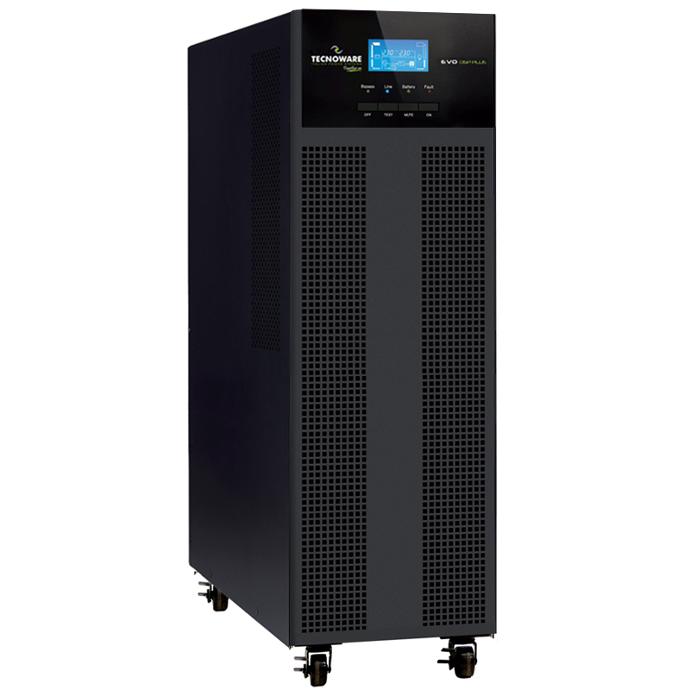

Power Rating: The EVO DSP PLUS 6.0 delivers 6 KVA (kilovolt-amperes) with a power factor of 0.9. This means it can handle a substantial load while maintaining high efficiency.
Technology: It operates using On-Line Double Conversion technology (VFI-SS-111), ensuring seamless power delivery even during fluctuations or outages.
Efficiency: With an impressive 94% efficiency, it minimizes energy wastage and keeps your critical systems running smoothly.
Input and Output:
Input Voltage: Accepts a wide input voltage range: 176Vac to 300Vac (for 50% to 100% load) and 110Vac to 300Vac (for loads up to 50%). This flexibility allows compatibility with various power sources.
Output Voltage: Provides a stable output at 230Vac (selectable frequency: 50Hz or 60Hz).
Voltage Regulation: Maintains output voltage within ±1% for linear loads (both in On-Line and Battery mode).
Crest Factor: The UPS can handle peak loads with a 3:1 crest factor.
Battery System:
The EVO DSP PLUS 6.0 comes equipped with 16 12VDC 7.2AH batteries. These batteries ensure uninterrupted power during outages.
Battery Charging: The microprocessor-controlled battery charging system optimizes battery life and performance.
Backup Time Extension: If you need longer backup time, you can extend it by adding additional battery boxes (optional).
Physical Specifications:
Dimensions: The UPS fits neatly into a standard 19-inch rack. It measures approximately 43.8 cm (width) x 13.3 cm (height) x 58 cm (depth) (3U size).
Weight: The UPS itself weighs 18 kg.
Audible Noise: Generates less than 48 dBA at a distance of 1 meter.
Additional Features:
Management Software: The included TecnoManager software is compatible with various operating systems, including Windows, Mac OS X, Unix, and Linux.
Static Bypass: Ensures seamless transition to bypass mode if needed.
Certifications: The EVO DSP PLUS 6.0 is CE-certified, meeting safety and performance standards.
