- TECNOWARE UPS EVO DSP PLUS 6.0 - PF 1 - 16 12VDC 7.2AH BATTERIES

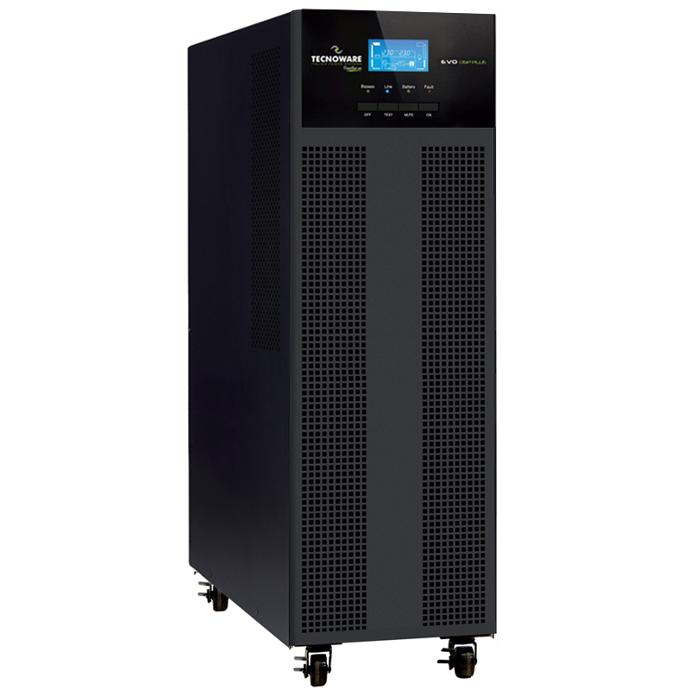

TECNOWARE UPS EVO DSP PLUS 6.0 - PF 1 - 16 12VDC 7.2AH BATTERIES
https://www.dotearth.ae/shop/tecnoware-ups-evo-dsp-plus-6-0-pf-1-16-12vdc-7-2ah-batteries-1656 https://www.dotearth.ae/web/image/product.template/1656/image_1920?unique=93be0e7
(0 review)
The EVO DSP PLUS 6.0 is a robust uninterruptible power supply (UPS) designed for critical applications where reliability and efficiency are paramount.
Brand: TECNOWARE |
Warranty: 1 Year |
Name:
TECNOWARE UPS EVO DSP PLUS 6.0 - PF 1 - 16 12VDC 7.2AH BATTERIES
Power and Efficiency:
- Power Rating: The EVO DSP PLUS 6.0 delivers 6 KVA (kilovolt-amperes) with a power factor of 0.9. This means it can handle a substantial load while maintaining high efficiency.
- Technology: It operates using On-Line Double Conversion technology (VFI-SS-111), ensuring seamless power delivery even during fluctuations or outages.
- Efficiency: With an impressive 94% efficiency, it minimizes energy wastage and keeps your critical systems running smoothly.
Input and Output:
- Input Voltage: Accepts a wide input voltage range: 176Vac to 300Vac (for 50% to 100% load) and 110Vac to 300Vac (for loads up to 50%). This flexibility allows compatibility with various power sources.
- Output Voltage: Provides a stable output at 230Vac (selectable frequency: 50Hz or 60Hz).
- Voltage Regulation: Maintains output voltage within ±1% for linear loads (both in On-Line and Battery mode).
- Crest Factor: The UPS can handle peak loads with a 3:1 crest factor.
Battery System:
- The EVO DSP PLUS 6.0 comes equipped with 16 12VDC 7.2AH batteries. These batteries ensure uninterrupted power during outages.
- Battery Charging: The microprocessor-controlled battery charging system optimizes battery life and performance.
- Backup Time Extension: If you need longer backup time, you can extend it by adding additional battery boxes (optional).
Physical Specifications:
- Dimensions: The UPS fits neatly into a standard 19-inch rack. It measures approximately 43.8 cm (width) x 13.3 cm (height) x 58 cm (depth) (3U size).
- Weight: The UPS itself weighs 18 kg.
- Audible Noise: Generates less than 48 dBA at a distance of 1 meter.
Additional Features:
- Management Software: The included TecnoManager software is compatible with various operating systems, including Windows, Mac OS X, Unix, and Linux.
- Static Bypass: Ensures seamless transition to bypass mode if needed.
- Certifications: The EVO DSP PLUS 6.0 is CE-certified, meeting safety and performance standards.
