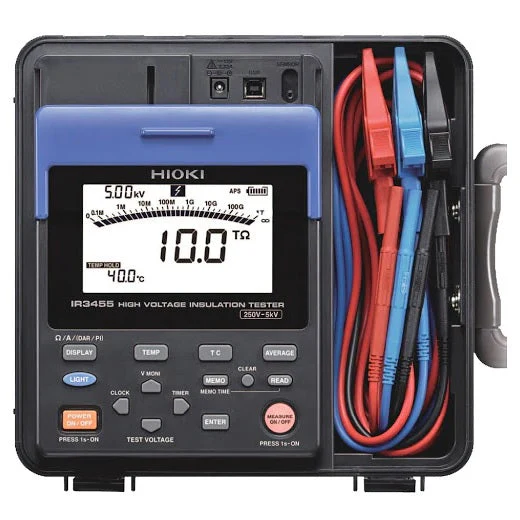

High Voltage Insulation Testing: Tests insulation resistance up to 5kV, ideal for high-voltage equipment and systems.
Wide Measurement Range: Measures insulation resistance from 10 MΩ to 10 TΩ, covering a broad spectrum of applications.
Diagnostic Capabilities: Includes various test modes such as IR, DAR (Dielectric Absorption Ratio), and PI (Polarization Index) for in-depth insulation analysis.
Fast Charging & Discharging: Rapidly charges and discharges capacitive loads, improving testing efficiency.
Safety Features: Designed with robust safety features, including interlock and discharge functions, ensuring operator safety during high-voltage testing.
Data Logging & Connectivity: Stores measurement data and offers connectivity options (e.g., USB) for easy data transfer and analysis.
Large, Clear Display: Features a large, backlit LCD for easy reading of measurements, even in challenging environments.
Rugged & Portable Design: Durable construction for field use and portable design for convenient on-site testing.
Applications: Suitable for testing transformers, cables, motors, generators, and other high-voltage equipment.
Technical Specifications:
Test Voltage Levels: 250V, 500V, 1kV, 2.5kV, and 5kV
Insulation Resistance Range: 10MΩ to 10TΩ
Short-Circuit Current: 5mA max
Voltage Measurement Range: Up to 600V AC/DC
Accuracy: ±5% of reading ±2 digits
Polarization Index (PI) & Dielectric Absorption Ratio (DAR): Automatic calculation
Auto Discharge Function: Ensures operator safety by automatically discharging residual voltage
LCD Display: Large backlit screen for easy readability in various lighting conditions
Data Storage: Capable of storing up to 1000 measurement results
Safety Rating: CAT IV 600V (IEC 61010-1 compliant)
Power Supply: 8 x AA alkaline batteries or external AC adapter
Operating Temperature: -10°C to 50°C
