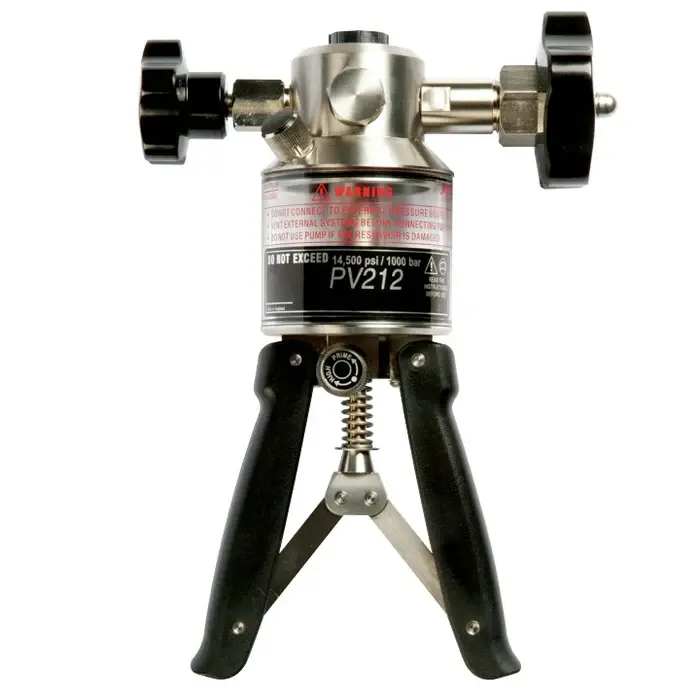

Key Technical Specifications:
Pressure range: 0 to 1000 bar (0 to 15,000 psi) for
the “‑23” variant.
Working fluid compatible with distilled water or mineral oil
(seal kits available for aggressive fluids)
Reservoir capacity: Transparent 100 cc (allowing fill during
operation)
Materials of construction: Series 300 stainless steel,
brass, nickel plated brass, Pyrex™ (or equivalent), PTFE, nitrile, polyurethane
Dual‑stage pump mechanism with priming/high‑pressure
selector valve for quicker high‑pressure generation with reduced operator
effort
Built‑in vernier fine adjustment for precise pressure
control even at high pressures
Pressure connection: standard ¼″ NPT female or corresponding
BSP adaptor versions
Dimensions: 23 cm × 16 cm × 7 cm (9″ × 6.25″ × 2.75″)
Weight: approximately 1.6 kg (3.5 lb) for the 1000 bar
version
Working temperature range: ‑30 °C to +80 °C (‑22 °F to
176 °F) when using standard fluids
Available optional pressure relief valve accessory for over‑pressure
protection of connected instrumentation.
