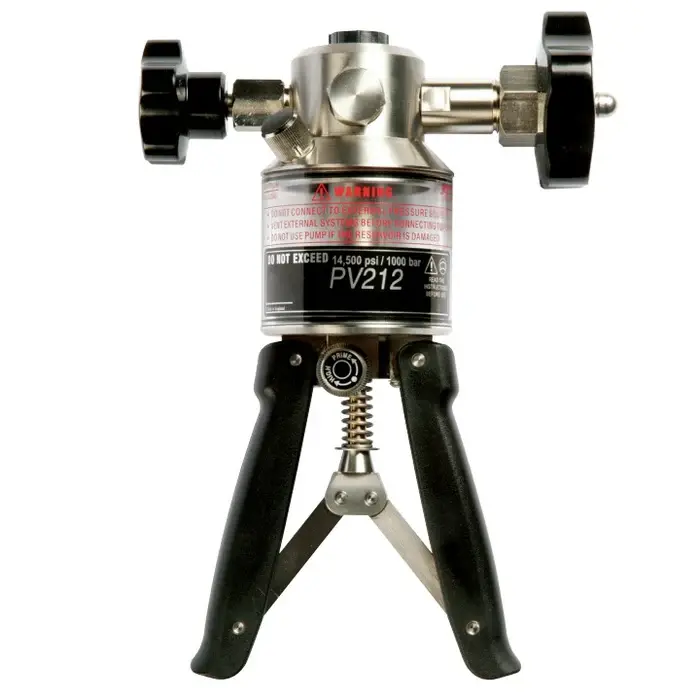

Druck PV212 Hydraulic Hand Pump (1000bar/15000psi)

Druck PV212 Hydraulic Hand Pump (1000bar/15000psi)

https://www.dotearth.ae/web/image/product.template/2312/image_1920?unique=37ecc58
(0 review)

Model No: PV212

7,199.00 AED 7199.0 AED 7,199.00 AED 7,289.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Druck
Warranty: 1 Year

Share

Key Features:

Massive Pressure Capability up to 1,000 bar (15,000 psi): Built for demanding calibration tasks and high-pressure systems.

Dual-Stage Pump Mechanism: Features a selector valve for fast priming plus efficient high-pressure generation with reduced effort.

Fine-Control Vernier Adjustment & Pressure Release: Allows precise pressure regulation even at high levels; built-in vernier control for fine tuning.

Transparent 100 cc Reservoir Compatible with Multiple Fluids: Enables visual fluid level monitoring; compatible with distilled water or mineral oil etc.

Ergonomic, Field-Ready Design: Lightweight construction, scissor-action pump handle, durable build – ideal for field calibration setups.

Over-Pressure/Relief Valve Option: Offers additional safety when using connected instrumentation, protecting against overpressurization.

Broad Accessory Compatibility: Works with a range of hoses, adaptors (NPT/BSP), and seal kits for different calibration setups and fluid media.

Rapid Generation of High Pressure: Designed to reach high calibration pressures quickly, helping reduce setup time on site.

Stainless Steel / Robust Construction: Built to withstand demanding environments, suitable for industrial and calibration laboratories.



Key Technical Specifications:

Pressure range: 0 to 1000 bar (0 to 15,000 psi) for the “‑23” variant.

Working fluid compatible with distilled water or mineral oil (seal kits available for aggressive fluids)

Reservoir capacity: Transparent 100 cc (allowing fill during operation)

Materials of construction: Series 300 stainless steel, brass, nickel plated brass, Pyrex™ (or equivalent), PTFE, nitrile, polyurethane

Dual‑stage pump mechanism with priming/high‑pressure selector valve for quicker high‑pressure generation with reduced operator effort

Built‑in vernier fine adjustment for precise pressure control even at high pressures

Pressure connection: standard ¼″ NPT female or corresponding BSP adaptor versions

Dimensions: 23 cm × 16 cm × 7 cm (9″ × 6.25″ × 2.75″)

Weight: approximately 1.6 kg (3.5 lb) for the 1000 bar version

Working temperature range: ‑30 °C to +80 °C (‑22 °F to 176 °F) when using standard fluids

Available optional pressure relief valve accessory for over‑pressure protection of connected instrumentation.
