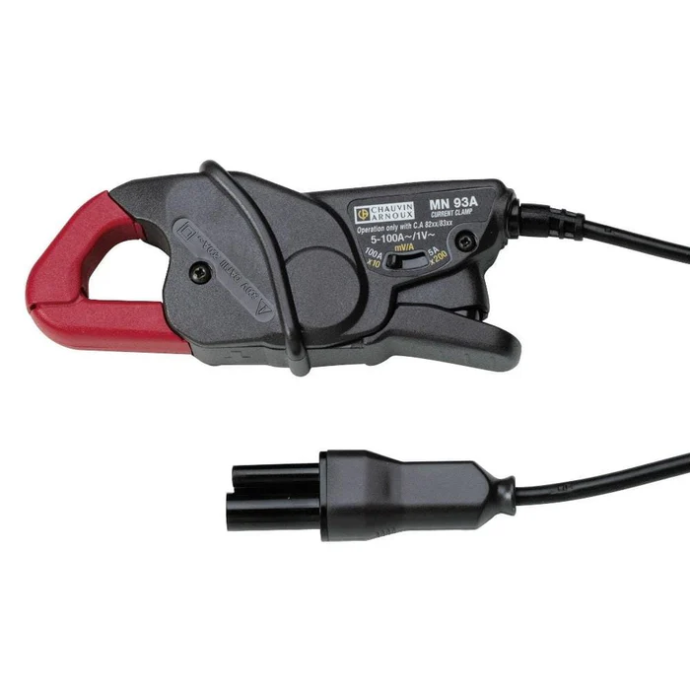

Chauvin Arnoux MN93A AC Current Probe

https://www.dotearth.ae/web/image/product.template/1996/image_1920?unique=c0c659b
(تقييم 0)

979.00 AED 979.0 AED 979.00 AED غير شامل ضريبة القيمة المضافة 999.00 AED

979.00 AED غير شامل ضريبة القيمة المضافة 999.00 AED

غير متوفر للبيع

    هذه التركيبة غير موجودة.

    تواصل معنا
    العلامة التجارية: Chauvin Arnoux
    Warranty: 1 Year


    الاسم: Chauvin Arnoux MN93A AC Current Probe

    ​Key Features:

    • High Bandwidth: Enables accurate measurements of fast-changing AC currents, making it ideal for applications involving high-frequency signals.
    • Non-Contact Measurement: Allows for safe and convenient current measurements without physical contact with the conductor.
    • Wide Measurement Range: Covers a broad range of AC current values, accommodating various measurement needs.
    • Compact and Lightweight: Easy to handle and maneuver in tight spaces.
    • Rugged and Durable: Built to withstand tough jobsite conditions with a durable construction.
    • High Accuracy: Ensures precise and reliable current readings, crucial for critical applications.
    • Compatible with Oscilloscopes: Easily integrates with oscilloscopes for detailed signal analysis and troubleshooting.


    ​Key Technical Specifications:

    Current Measurement Range

    • AC Current: 0.005A to 100A RMS.
    • Accurate for measuring low to medium AC currents in various applications.

    Output Signal

    • Voltage Output: 1mV/A, 10mV/A, or 100mV/A.
    • Compatible with multimeters, oscilloscopes, and other data acquisition instruments.

    Frequency Range

    • Range: 40Hz to 10kHz.
    • Reliable performance for standard and high-frequency applications.

    Jaw Opening Size

    • Maximum Conductor Diameter: 20mm (0.79 inches).
    • Designed for use with small to medium-sized cables.

    Accuracy

    • Basic Accuracy: ±1% of reading.
    • Delivers consistent and precise measurements for professional-grade results.

    Safety Compliance

    • 600V CAT III / 300 V CAT IV: Ensures user safety in electrical and industrial environments.

    Operating Conditions

    • Temperature Range: -10°C to 50°C (14°F to 122°F).
    • Durable design for reliable operation in varying environmental conditions.

    Compact and Lightweight Design

    • Lightweight and ergonomic for easy handling during long measurement tasks.
    • Ideal for fieldwork and portable applications.

    Power Supply

    • Powered by the connected measuring device, eliminating the need for external batteries.
