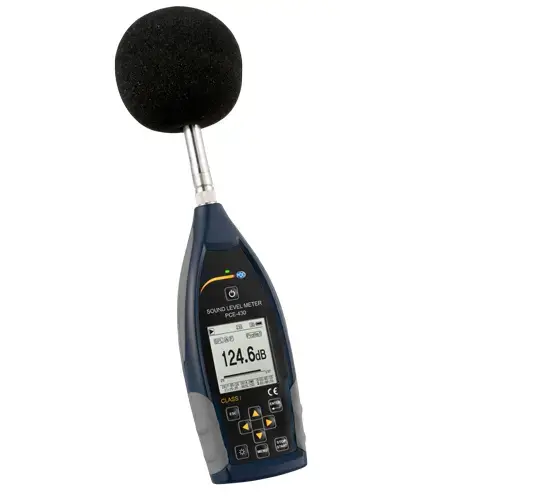

PCE-430 Class 1 Sound Level Meter With 1/1 Octave Band Filter

https://www.dotearth.ae/web/image/product.template/2296/image_1920?unique=abf4d8e
(0 review)

Model No: PCE-430

7,829.00 AED 7829.0 AED 7,829.00 AED 7,899.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: PCE
Warranty: 6 Months

Share

Key Features:

Class 1 Accuracy & Standards Compliance

  • Designed to meet Class 1 accuracy requirements under standards such as IEC 61672‑1:2013, IEC 60651:1979 and IEC 60804:2000.
  • Fully compliant with professional acoustic measurement applications to ensure reliable and repeatable noise data.

Built-in 1/1 Octave Band Filter (Optional 1/3 Octave Upgrade)

  • Includes an integrated 1/1 octave band filter for frequency selective measurement — essential for analysing noise sources, machine noise or environmental acoustics.
  • Optional upgrade to 1/3 octave band filtering for higher resolution frequency analysis.

Wide Measurement Range & Low Inherent Noise

  • Sound pressure level measurement range: from approximately 22 dB(A) up to around 136 dB(A) (depending on configuration).
  • Low inherent noise microphone and electronics ensure accuracy even at low SPL levels.

Multiple Frequency- & Time-Weighting Options

  • Supports A, B, C and Z frequency weightings, enabling versatile measurement for different standards and applications (environmental noise, industrial noise, product certification).
  • Time-weighting options include Fast (F), Slow (S) and Impulse (I) response modes.

Data Logging, Graphical Display & Connectivity

  • Built-in data logger with adjustable measurement interval (from 1 s up to 24 h) and memory (via micro SD card) for continuous monitoring.

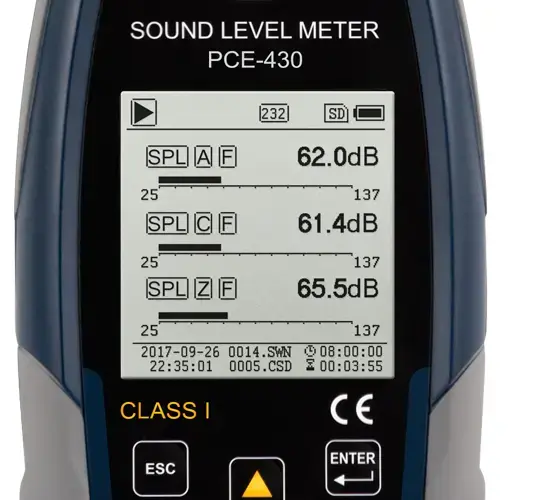

  • Large, illuminated LCD display shows numeric SPL, real-time sound curves/graphs and octave band results for clear visualisation.
  • USB interface (and possibly other ports) for data export and connection to PC software for analysis.

Professional Features for Field & Lab Use

  • Hand-held portable design suited for field measurements across industrial noise assessments, environmental surveys, building acoustics and more.
  • Additional features such as adjustable alarm levels, microphone options and optional accessories enhance versatility.


Key Technical Specifications:

Accuracy: Class 1 conforming to standards such as IEC 61672-1:2013, IEC 60651:1979, IEC 60804:2000, ANSI S1.4-1983 and ANSI S1.43-1997.

Measuring (Sound Pressure) Range: 22 … 136 dB(A) typical.

Overall Frequency Response: 3 Hz … 20 kHz.

Frequency Analysis:

  • 1/1-Octave Band Filter: 8 Hz … 16 kHz.
  • Optional 1/3-Octave Band Filter Upgrade: 6.3 Hz … 20 kHz.

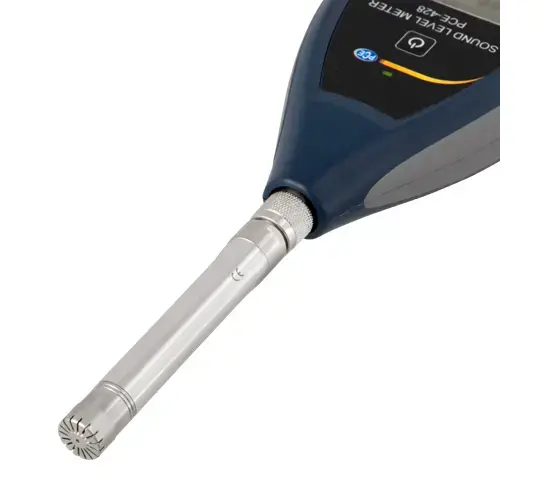

Microphone:

  • Type: ½″ condenser microphone, Class 1.
  • Sensitivity: 40 mV/Pa.
  • Frequency Response: 3 Hz … 20 kHz.
  • Connector: TNC; Power supply via ICCP standard.

Frequency Weightings: A, B, C, Z.

Time Weightings: Fast (F) 125 ms, Slow (S) 1 s, Impulse (I) 35 ms.

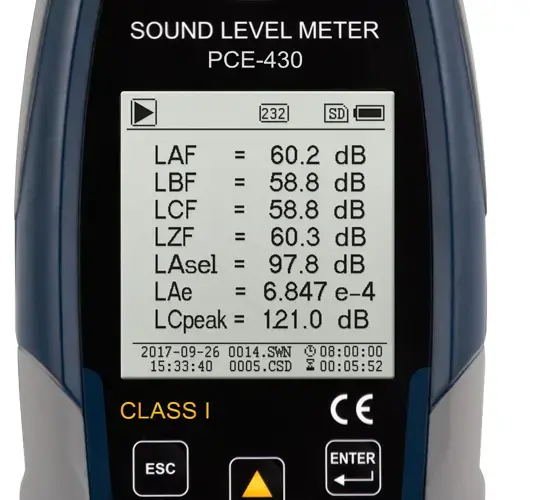

Output / Measuring Functions:

  • LXY (SPL)
  • LXeq
  • LXYSD, LXSEL, LXE
  • LXYmax / LXYmin
  • LXPeak
  • LXN (statistics 1-99 %)
    (“X” = frequency weighting A/B/C/Z, “Y” = time weighting F/S/I)

Inherent Noise:

  • Microphone: 19 dB(A), 25 dB(C), 31 dB(Z)
  • Electronics: 13 dB(A), 17 dB(C), 24 dB(Z)

AD Converter / Sampling:

  • Resolution: 24 bit.
  • Sample Rate: Standard 48 kHz; LN Mode 20 ms.

Display & Memory:

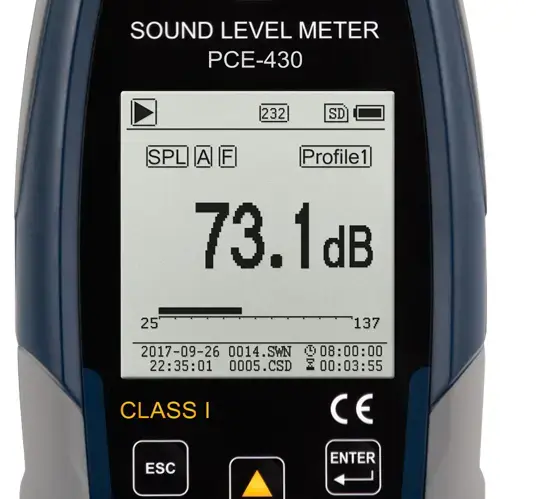

  • Display: 160×160 pixel back-lit LCD including numerical, bar-graph and graphical sound curves.
  • Memory: 4 GB Micro SD card standard.

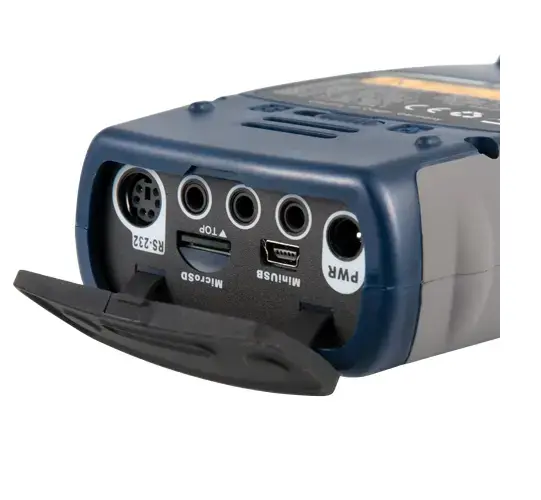

Interfaces: USB (mass-storage & software readable) and RS-232.

Voltage/Analog Outputs: AC 5 V RMS; DC 10 mV per dB.

Power Supply:

  • 4 × 1.5 V AA batteries
  • 12 V / 1 A power adapter
  • 5 V / 1 A USB power input

Battery Life: Minimum 10 h continuous use.

Standards Compliance: GB/T 3785.1-2010, GB/T 3785.2-2010, IEC 60651:1979, IEC 60804:2000, IEC 61672-1:2013, ANSI S1.4-1983, ANSI S1.43-1997.

Logging Interval: 1 s … 24 h (adjustable).

Alarm Function: User-adjustable alarm level.
