  3. Extech EX330: 12 Function Mini MultiMeter + Non-Contact Voltage Detector
قائمة أسعار عامة

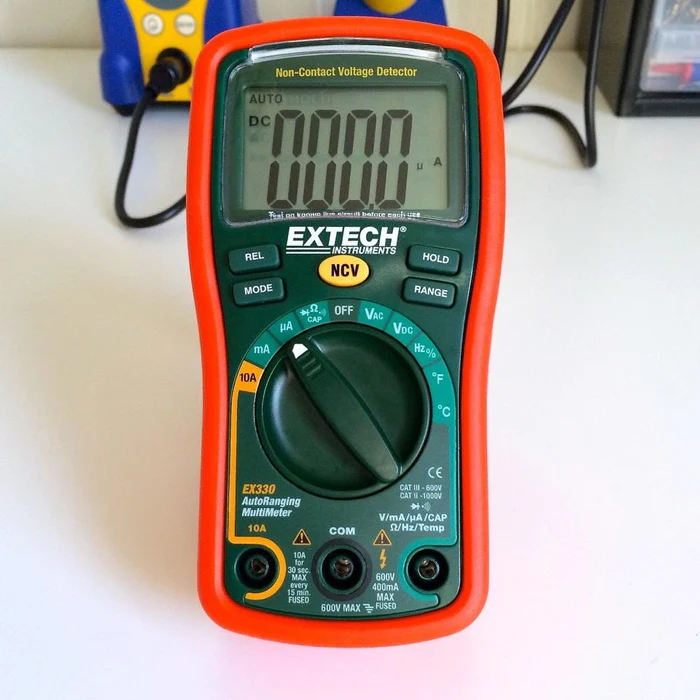

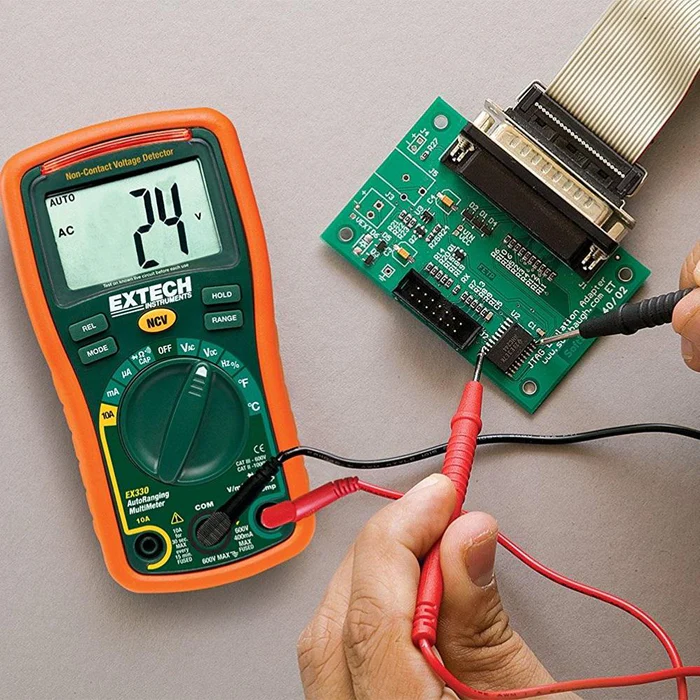

Extech EX330: 12 Function Mini MultiMeter + Non-Contact Voltage Detector

https://www.dotearth.ae/web/image/product.template/1914/image_1920?unique=2b7c1e4
(مراجعة 0 )

281.00 AED 281.0 AED 281.00 AED 299.00 AED

Not Available For Sale

  • العلامة التجارية
  • Warranty

هذه التركيبة غير موجودة.

تواصل معنا
العلامة التجارية: Extech Instruments
Warranty: 1 Year

مشاركة

Key Features:

  • 12 Essential Functions: Measures AC/DC voltage, AC/DC current, resistance, continuity, diode test, capacitance, frequency, duty cycle, and temperature.

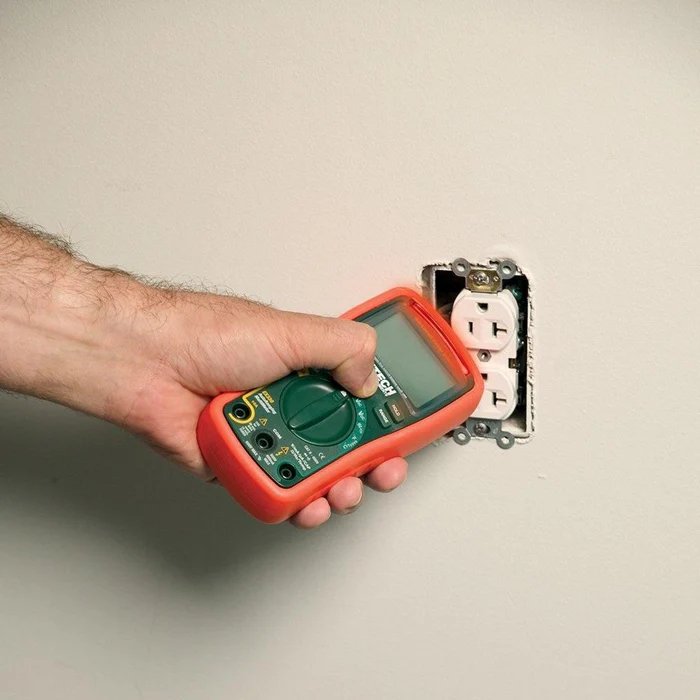

  • Non-Contact Voltage Detection: Quickly and safely detects the presence of AC voltage without physical contact, improving safety.
  • Autoranging: Automatically selects the appropriate measurement range for optimal readings.
  • Large, Backlit LCD Display: Ensures easy readability in various lighting conditions.
  • Data Hold Function: Freezes readings on the display for easy recording.
  • Low Battery Indicator: Alerts the user when the battery needs replacement.
  • Rugged and Durable: Designed to withstand drops and other impacts, making it suitable for field use.
  • Affordable: Offers excellent value for its price and comprehensive feature set.


​Key Technical Specifications:

  • DC Voltage:
    • Resolution: 0.1mV
    • Range: 600.0mV to 600.0V
    • Accuracy: ±0.5% ±2 digits
  • AC Voltage:
    • Resolution: 0.1V
    • Range: 6.00V to 600.0V
    • Accuracy: ±1.2% ±5 digits
  • DC Current:
    • Resolution: 0.1µA
    • Range: 60.00µA to 10.00A
    • Accuracy: ±1.0% ±3 digits
  • AC Current:
    • Resolution: 0.1mA
    • Range: 600.0µA to 10.00A
    • Accuracy: ±1.5% ±5 digits
  • Resistance:
    • Resolution: 0.1Ω
    • Range: 60.00Ω to 40.00MΩ
    • Accuracy: ±1.0% ±3 digits
  • Capacitance:
    • Resolution: 1nF
    • Range: 20.00nF to 20.00µF
    • Accuracy: ±3.5% ±5 digits
  • Frequency:
    • Resolution: 0.01Hz
    • Range: 0.001Hz to 40MHz
    • Accuracy: ±0.5% ±5 digits
  • Duty Cycle:
    • Resolution: 0.1%
    • Range: 0.1% to 99.9%
    • Accuracy: ±0.5% ±5 digits
  • Temperature:
    • Resolution: 0.1°C
    • Range: -20.0°C to +70.0°C
    • Accuracy: ±2.0°C
  • Diode Test:
    • Voltage: Approx. 2.0V
  • Continuity Test:
    • Audible and visual indication
  • Non-Contact Voltage Detection:
    • Detection range: 90V to 1000V AC
  • Safety:
    • CAT III 600V, CAT IV 300V
    • IEC 61010-1
