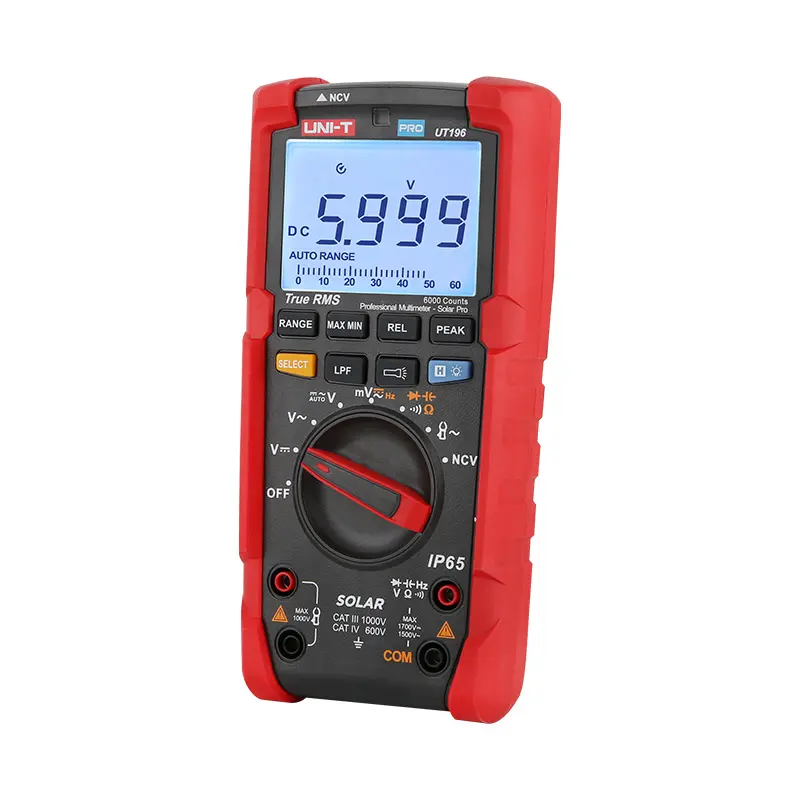

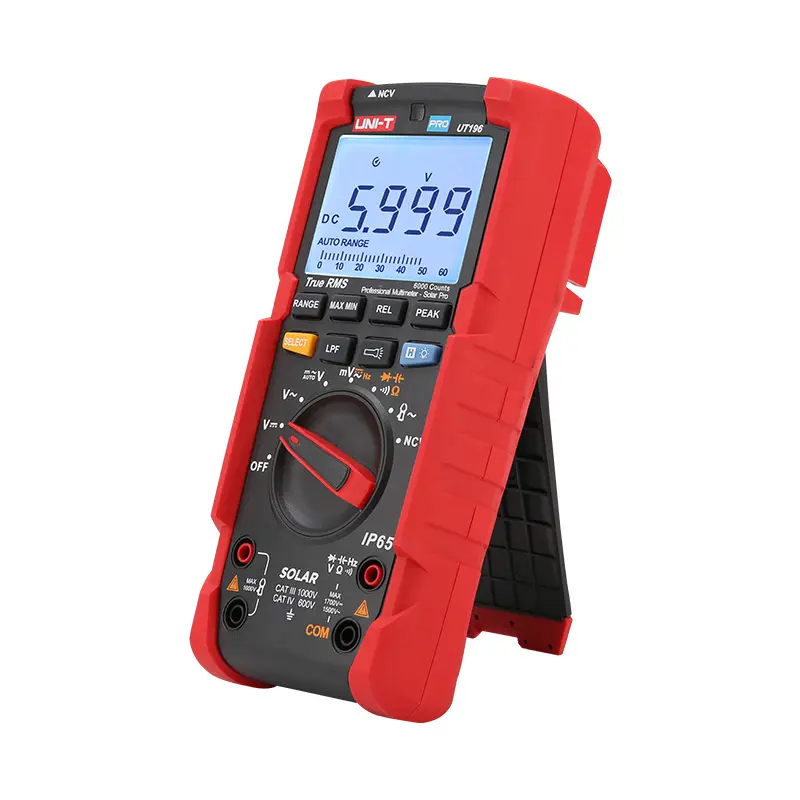

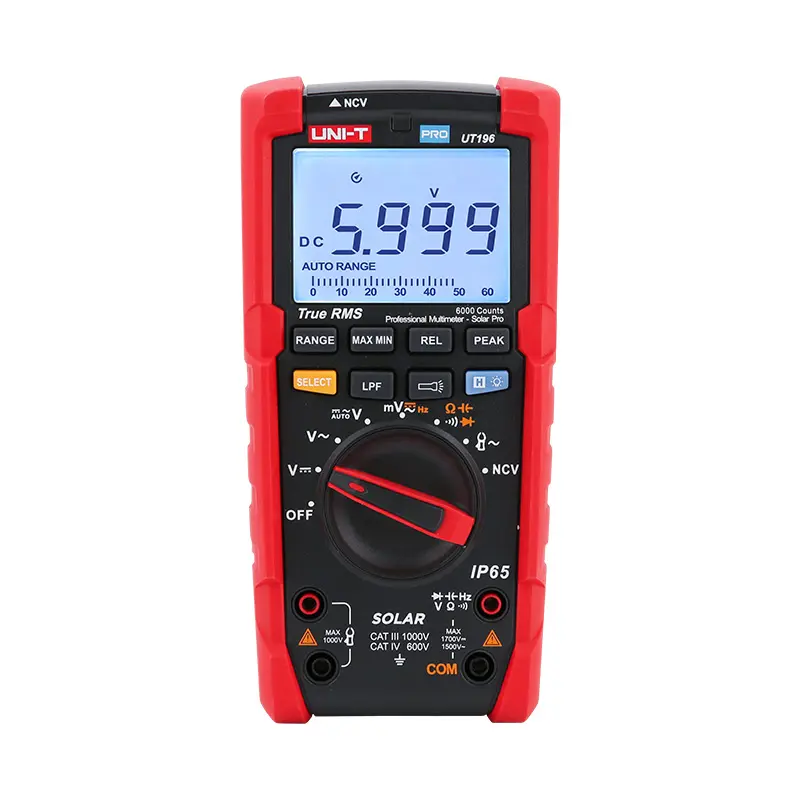

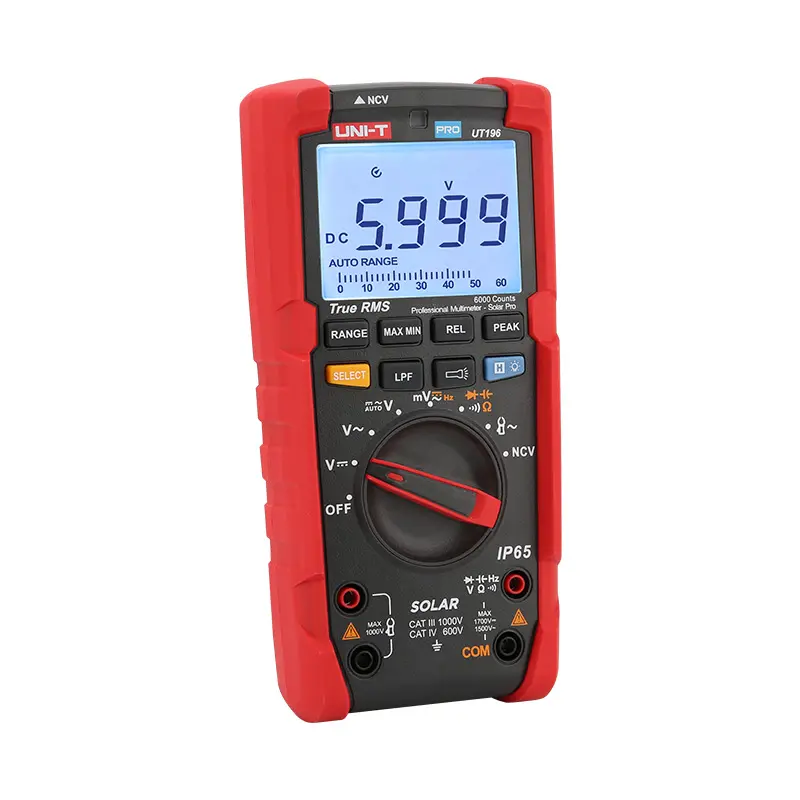

UT196 1700V DC True RMS Professional Multimeter – Solar Pro

Name: CABLETIME AOC Cable
Brand: CABLETIME
Availability: InStock

This combination does not exist.

Brand: UNI-T

KEY FEATURES:

● True RMS

● Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind

● IP65 protection

● CAT III 1000V, CAT IV 600V

● Analog bar

● Frequency response：45Hz~1kHz

● Low-pass filter function

● Low impedance mode

● Built-in flashlight, bright backlight and visual alarm

KEY SPECIFICATIONS:

Specifications of UT196 1700V DC True RMS Professional Multimeter – Solar Pro

Specifications	Range	UT196
DC voltage(V)	1700V	±(0.2%＋5)
AC voltage(V)	1500V	±(0.8%＋3)
Frequency (Hz)	1MHz	±(0.08%+4)
Resistance(Ω)	60MΩ	±(0.8%＋2)
Capacitance (F)	60mF	±(1.9%+5)
Features
Display count		6000
True RMS		√
Dual display		√
Auto range		√
NCV		√
Diode test		√
Continuity		√
Relative mode		√
Max/Min		√
Peak hold		√
Low pass filter(LPF)		√
Audible visual indication		√
Low battery indication	＜7.5V approximately	√
Data hold		√
Analog bar graph		√
Auto power off	Approximately 15 minutes	√
Flashlight		√
IP rating		IP65
Drop test		2m
Safety rating	CAT III 1000V, CAT IV 600V
General Characteristics

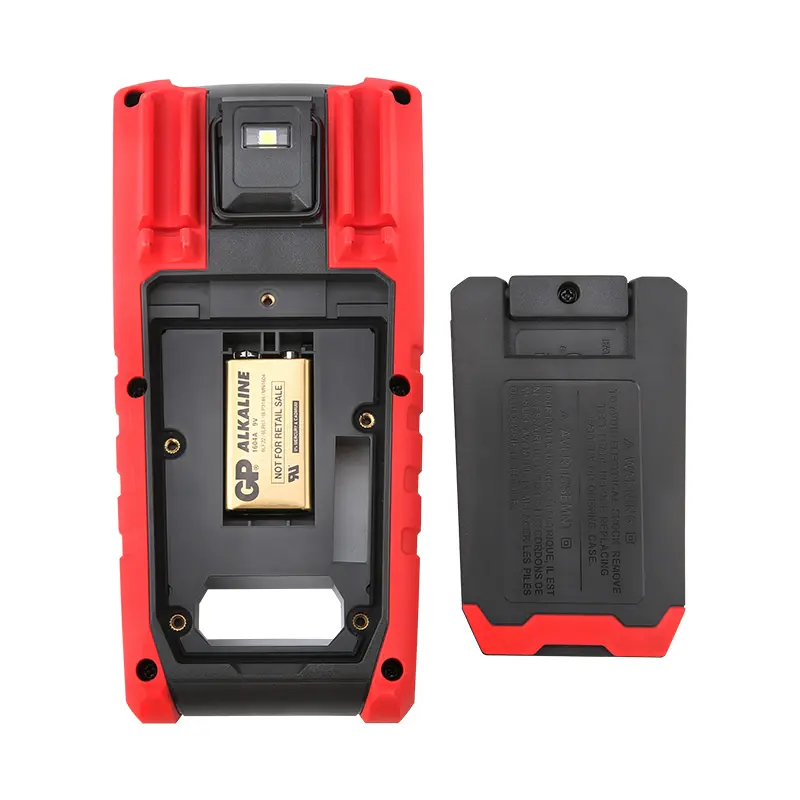

Power	9V battery
Product color	Red+Gray
Product net weight	485g
Product size	195 x 95 x 58mm
Standard accessories	English manual, test leads, battery.
Standard individual packing	Gift box,carrying bag.
Standard quantity per carton	10 pcs
Standard carton measurement	480×370×195mm
