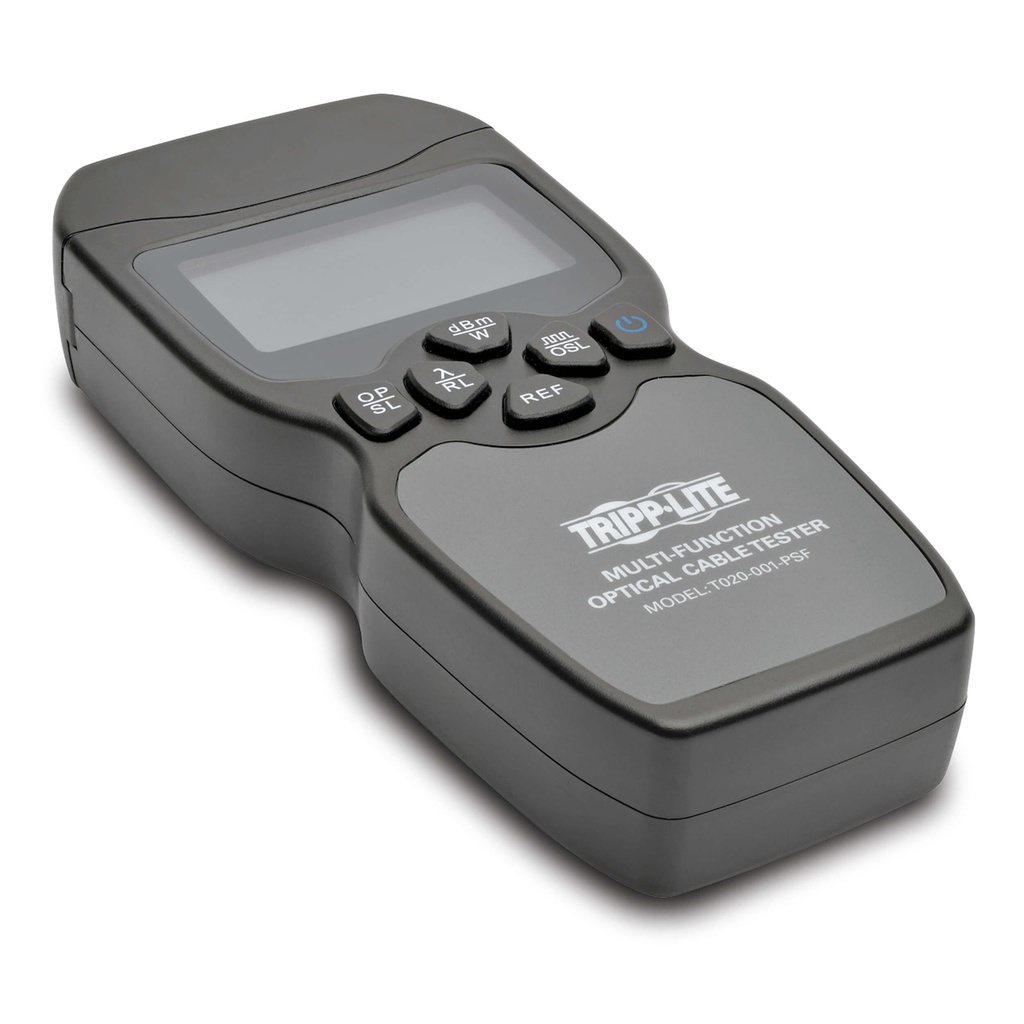

Tripp Lite T020-001-PSF Fiber Optic Cable Tester

1. All-in-One Unit Tests Fiber Optic Cables:

   • The T020-001-PSF is an essential tool for cable installers or anyone working in telecom or LAN environments.
   • It allows you to test fiber optic cables for:
     • Breaks
     • Insertion loss
     • Optical power loss up to 20 km.

2. Combination Power Meter, Light Source, and Visual Fault Locator:

   • The T020-001-PSF combines three essential functions in one unit:
     • Power Meter: Supports wavelengths of 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, and 1625 nm.
     • Light Source: Supports wavelengths of 1310 nm and 1550 nm.
     • Visual Fault Locator: Features multiple frequency settings for continuous and flashing modes.

3. Connector Compatibility:

   • FC connectors are included, and optional SC, ST, and LC adapters are available.
   • This versatility allows you to test a wide range of fiber cables commonly installed in today’s network infrastructures.

4. Easy-to-Read LCD Interface:

   • Displays power loss measurement data, wavelength, frequency, battery capacity, and battery charge status.
   • Ensures clear visibility during testing.

5. Battery-Powered and Auto-Off Function:

   • Powered by included AA batteries.
   • The auto-off function preserves battery power when not in use.

6. Convenient Carrying Case:

   • The T020-001-PSF can be stored away in its handy carrying case.

Remember, this tester simplifies connectivity, saves time, and ensures reliable fiber optic cable testing.

• Model: T020-001-PSF
• Type: Multi-Function Optical Fiber Cable Tester with Power Meter, Light Source, and Visual Fault Locator
• Functions:
  • Power Meter:
    • Supports wavelengths of 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, and 1625 nm.
    • Measures optical power loss.
  • Light Source:
    • Supports wavelengths of 1310 nm and 1550 nm.
    • Provides light for testing fiber optic cables.
  • Visual Fault Locator:
    • Features multiple frequency settings for continuous and flashing modes.
    • Locates visual faults in the cable.
• Connector Compatibility:
  • FC connectors included.
  • Optional SC, ST, and LC adapters available.
• Testing Range:
  • Tests fiber optic cables for breaks, insertion loss, and optical power loss up to 20 km.
• LCD Interface:
  • Easy-to-read LCD displays measurement data, wavelength, frequency, battery capacity, and charge status.
• Power Source:
  • Powered by included AA batteries.
  • USB Micro-B port for charging rechargeable batteries.
• Auto-Off Function:
  • Preserves battery power when not in use.
• Carrying Case:
  • Convenient storage and portability.

This versatile tester simplifies connectivity, saves time, and ensures reliable fiber optic cable testing.
