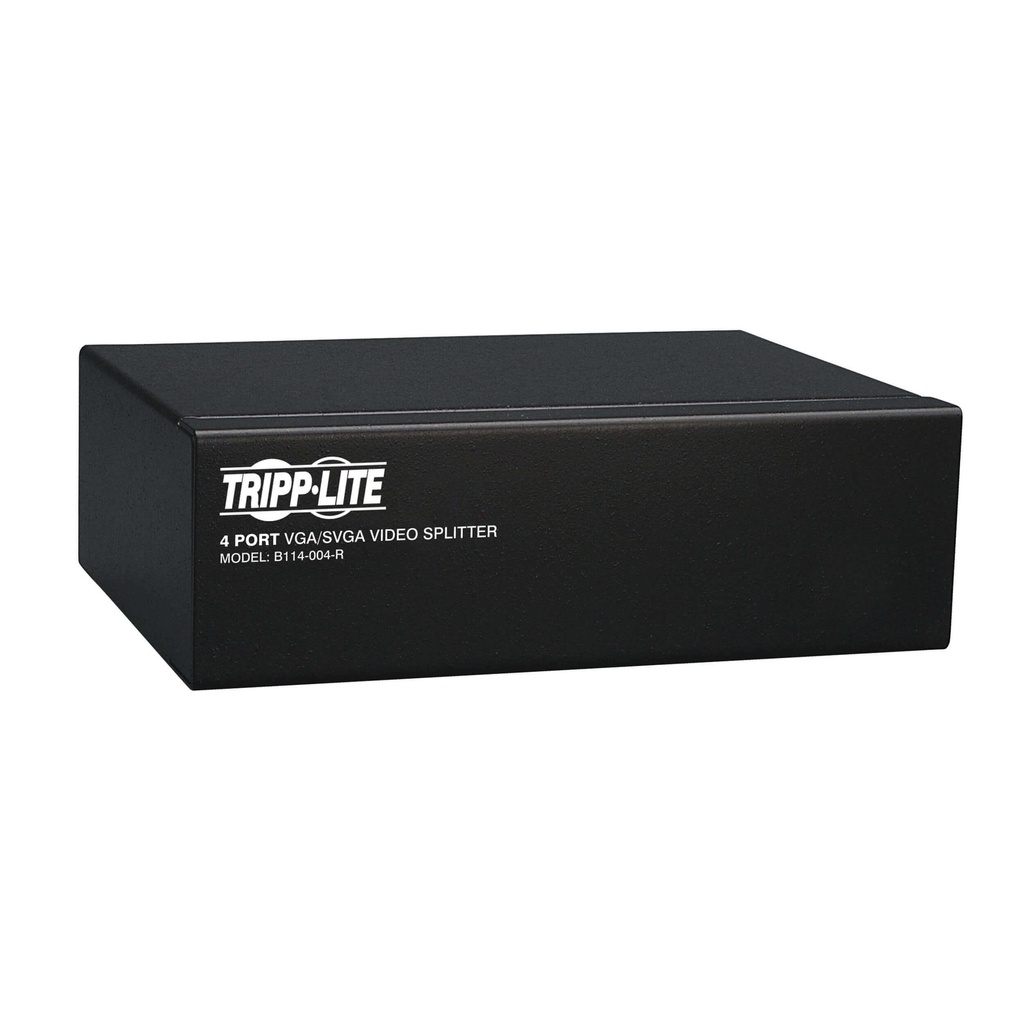

TRIPP LITE SPLITTER 4PORT VGA(HD15) WITH SIG. BOOSTER M/4XF B114-004-R

https://www.dotearth.ae/web/image/product.template/1505/image_1920?unique=96f217c
(0 review)

209.00 AED 209.0 AED 209.00 AED

Not Available For Sale

This combination does not exist.

Contact Us

Share

  • Simultaneously display video on up to 4 VGA/SVGA monitors
  • Ideal for video presentations or sharing information with multiple users
  • A built-in booster allows a video signal (up to 2048 x 1536 @ 60Hz) to be transmitted up to 210-ft. (64 m) from the source
  • The splitter can be located up to 25-ft. (7.62 m) from the connected computer, and up to 185-ft. (56.38 m) from the connected monitors
  • 350Mhz Bandwidth Support
  • Cascade up to 3 levels of B114-004-R splitters together to increase the number of connected monitors
  • Rugged, fully shielded metal housing


OVERVIEW
UPC Code037332014276
Product TypeSplitter
TechnologyVGA/SVGA
Host ConnectorHD15 (MALE)
VIDEO
Max Supported Video Resolution2048 x 1536 @ 60Hz
Max. Distance (Between any 2 Units)246 ft. (75m)
Max Number of Ports (Entire Chain)64
INPUT
AC Power Adapter Plug(s)NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A)100-240V / 50/60Hz / 0.4A
AC Power Adapter Output Specs (V / A)9V / 1A
AC Power Adapter Cord Length (ft.)5
AC Power Adapter Cord Length (m)1.5
Voltage Compatibility (VAC)100; 110; 120; 125; 127; 200; 208; 220; 230; 240
Product Length (in.)5.2
Product Length (ft.)0.43
POWER
Power Source TypeAC Adapter
AC AdapterInput: 100-240V, 50/60Hz, 0.3A; Output: 9V, 1A, 5 ft.
DC Barrel PlugOD: 5.5 x 2.1 x 12mm, Positive Pin, Negative Sleeve
Power Consumption (Watts)1.8
CONNECTIONS
Number of Ports4
Side A - Connector 1HD15 (MALE)
Side B - Connector 1(4) HD15 (FEMALE)
Connector PlatingNickel
Input x Output1 x 4
Daisy-chainable / CascadableYes
Daisy-chainable / Cascadable DetailsUp to 3 Levels
USER INTERFACE, ALERTS & CONTROLS
LED IndicatorsGreen (Power)
PHYSICAL
ColorBlack
Material of ConstructionSteel
Cable Length (m)0.00
Shipping Dimensions (hwd / cm)6.10 x 14.48 x 25.15
Shipping Weight (kg)0.73
Unit Packaging TypeBox
Unit Weight (kg)0.45
ENVIRONMENTAL
Operating Temperature Range32° to 122°F (0° to 50°C)
Storage Temperature Range-4° to 140°F (-20° to 60°C)
Relative Humidity0% to 80% RH, Non-Condensing
BTUs  6.1 BTU/Hr
COMMUNICATIONS
Signal Range (m)64
EDID Compatible  Yes
PORT EXPANSION
Daisy-chainable or CascadableCascadable
FEATURES & SPECIFICATIONS
MST Support  No
Driver RequiredNo
STANDARDS & COMPLIANCE
External Power Supply CertificationsFCC; UL; cUL; RoHS
Product ComplianceRoHS; CE (Europe); REACH; FCC (USA)
WARRANTY & SUPPORT
Product Warranty Period (Worldwide)3-year limited warranty
