KEY FEATURES:

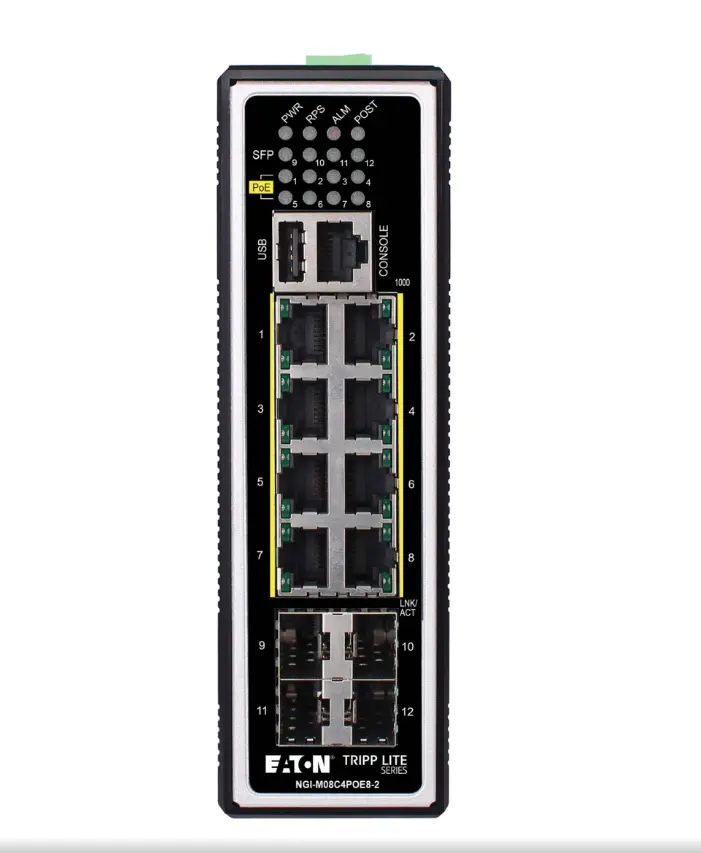

8-Port Managed Gigabit Ethernet Switch Connects Your
Network Devices to a LAN
This space-saving switch transmits data over a Gigabit Ethernet network. Eight
auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to
the devices designated to receive it, which improves the efficiency and
potential throughput of the network. The NGI-M08C4POE8-2 also features four GbE
SFP slots for uplinking data to other switches via optical fiber or copper.
LEDs indicate when the switch is powered on and which Ethernet ports are
showing activity.
PoE+ Ports Deliver Power to Devices Without Access to AC
Outlets
This managed switch features eight PoE ports capable of powering compatible PoE
devices, such as VoIP phones and IP surveillance cameras, without the expense
and effort of running separate power lines or installing the devices near an AC
outlet. The NGI-M08C4POE8-2 provides PoE+ compatibility up to 30W per port and
a PoE budget of 120W with 24VDC input or 240W with 48VDC input to satisfy your
demand for high-power network devices.
Protective Metal Housing Built to Last in Harsh
Environments
The compact NGI-M08C4POE8-2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to
industrial automation, government, military, oil and gas, mining,
power/utility, security, mining, factory and warehouse applications, as well as
other environments with space constraints and wide temperature ranges. The IP30
industrial-grade aluminum case withstands vibration, shock and free fall. It
can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius
(-40 to 167 degrees Fahrenheit).
Monitors and Controls Devices via CLI and Web
Configuration
The NGI-M08C4POE8-2 supports MAC address auto-learning and auto-aging for
efficient routing, as well as automatic MDI/MDI-X crossover detection for
plug-and-play functionality. It also supports QoS, IGMP snooping, SFP DDMI and
other device management features that fulfill the needs of high-performance
managed industrial networks. IEEE 802.3x flow control allows smooth
transmission of large files. The switch automatically shifts unused ports to an
energy-saving state without interrupting network connection.
Pre-Loaded with Standard Layer 2 Network Management
Software
This switch supports IGMP snooping in IPv4 to limit the flooding of multicast
traffic by dynamically configuring Layer 2 interfaces. Multicast traffic is
forwarded only to those interfaces associated with IP multicast devices.
Works with the Most Popular Web Browsers
The NGI-M08C4POE8-2 is browser-based and works independently from the connected
computer's operating system. Because switch compatibility is based on common
hardware standards, rather than system software dependencies, the
NGI-M08C4POE8-2 accommodates most platforms. Preferred web browsers include
Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Pre-Installed DIN Rail Clip Allows for Convenient
Installation

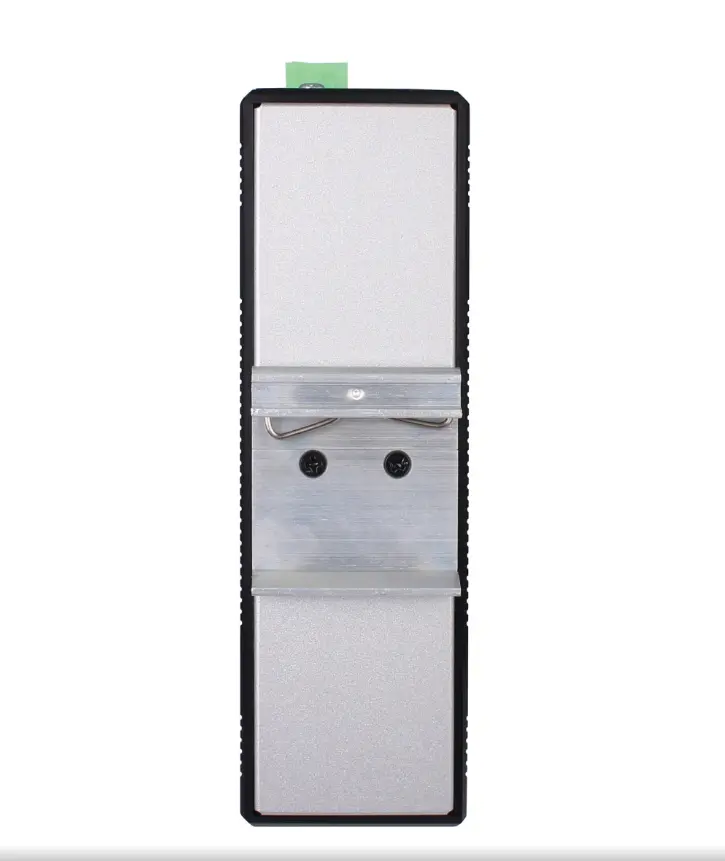

The switch may be DIN mounted using the pre-installed rail clip, which mounts
firmly to any standard 35 mm DIN rail. Providing seamless operation in the

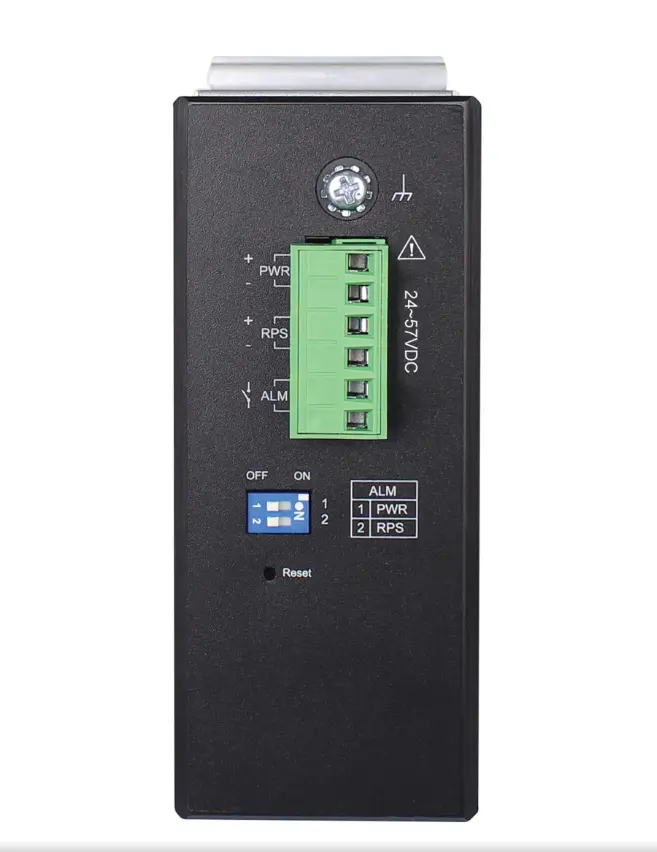

event of power dips or failures, the switch features redundant 6-pin 24–57VDC
terminal block power inputs to help prevent unnecessary downtime. When used
with two power sources, the switch also supports alarm relay contacts that you
can wire to your existing alarm circuit to notify you instantly when a power
disruption occurs.
TAA-Compliant for GSA Schedule Purchases
The NGI-M08C4POE8-2 is compliant with the Federal Trade Agreements Act (TAA),
which makes it eligible for GSA (General Services Administration) Schedule and
other federal procurement contracts.
