KEY FEATURES:

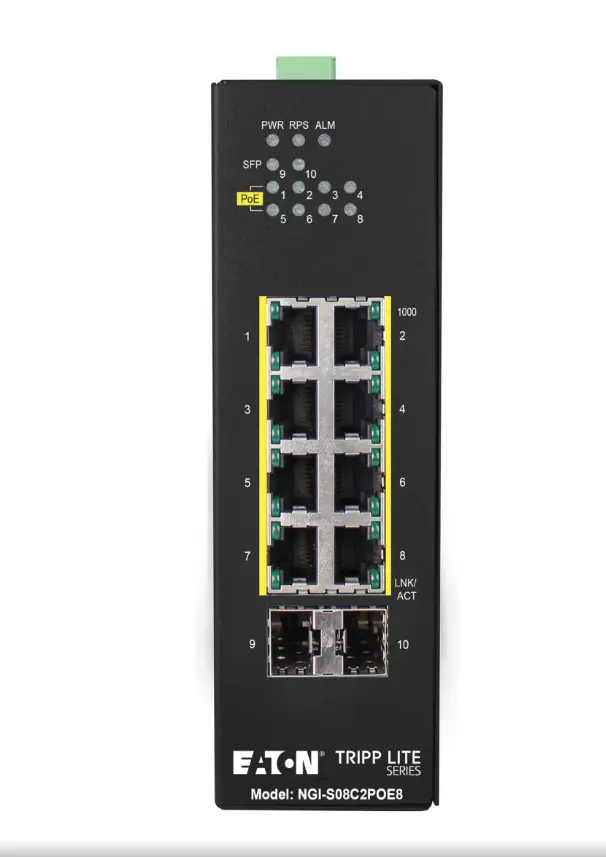

8-Port Smart Gigabit Ethernet Switch Connects Your
Network Devices to a LAN
This Lite Managed switch transmits both power and data over a Gigabit
Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports send data via
Cat5e/6/6a cable only to the devices designated to receive it, which improves
the efficiency and potential throughput of the network. The NGI-S08C2POE8 also
features two GbE SFP slots for uplinking data to other switches via optical
fiber or copper. LEDs indicate when the switch is powered on and which Ethernet
ports are showing activity.
PoE+ Ports Deliver Power to Devices Without Access to AC
Outlets
This smart switch features eight PoE ports capable of powering compatible
PoE appliances and devices, such as VoIP phones and IP surveillance cameras,
without the expense and effort of running separate power lines or installing
the devices near an AC outlet. The NGI-S08C2POE8 provides PoE+ compatibility up
to 30W per port and a PoE budget of 120W with 24VDC input or 240W with 48VDC
input to satisfy your demand for high-power network devices.
Protective Metal Housing Built to Last in Harsh
Environments
The hardened NGI-S08C2POE8 adds 10/100/1000 Mbps Gigabit Ethernet capacity
to industrial automation, security, government, military, oil and gas, mining
and outdoor applications that demand high bandwidth convergence, as well as
other environments with space constraints and wide temperature ranges. The IP30
industrial-grade aluminum case withstands vibration, shock and free fall. It
can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius
(14 to 140 degrees Fahrenheit).
Manages and Monitors Devices via Innovative Management
Platform
The Lite Managed switch’s user-friendly cloud-based platform helps you
manage your network via web interface. Three different features help you
monitor connected devices, real-time traffic and link information. The Wizard
is a set-up assistant that guides you step-by-step through initial management.
The Topology Map with visual connectivity diagram displays network
infrastructure and highlights link status. The Dashboard provides important
performance and traffic-related information. A tri-color scheme – red
(critical), yellow (alert), green (normal) – keeps you up to date on any
network irregularities.
Intelligent Connection Technology Ensures Plug-and-Play
Operability
The NGI-S08C2POE8 supports MAC address auto-learning and auto-aging for
efficient routing, as well as automatic MDI/MDI-X crossover detection for
plug-and-play functionality. It also supports QoS, IGMP snooping and other
device management features that fulfill the needs of high-performance managed
industrial networks. IEEE 802.3x flow control allows smooth transmission of
large files.
Works with the Most Popular Web Browsers
The NGI-S08C2POE8 is browser-based and works independently from the connected
computer's operating system. Because switch compatibility is based on common
hardware standards, rather than system software dependencies, the NGI-S08C2POE8
accommodates most platforms. Preferred web browsers include Google Chrome (on
both Windows and macOS) and Microsoft Edge (Windows only).
Pre-Installed DIN Rail Clip Allows for Convenient
Installation

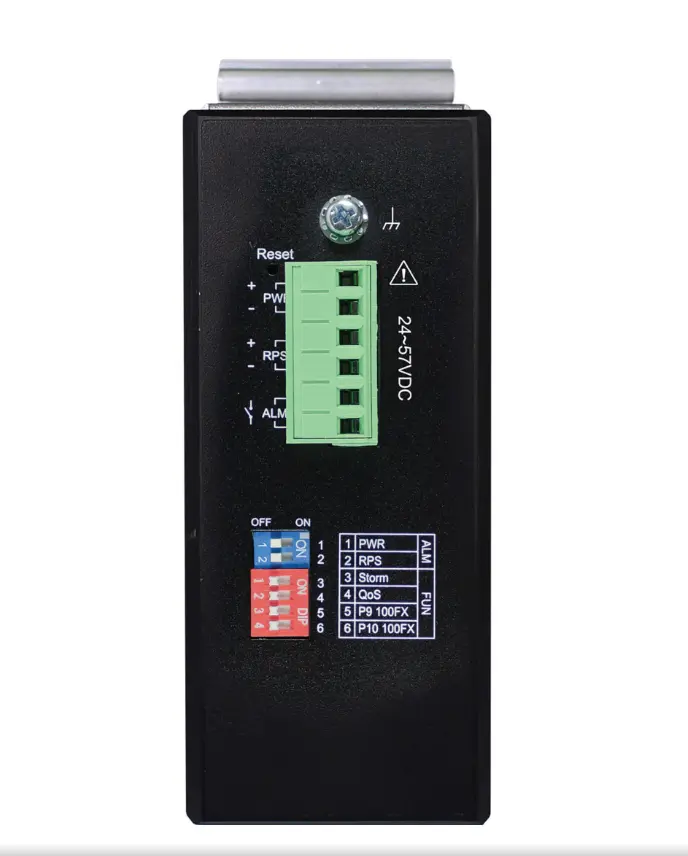

The switch may be DIN mounted using the pre-installed rail clip, which mounts
firmly to any standard 35 mm DIN rail. Providing seamless operation in the
event of power dips or failures, the switch features redundant power inputs to
help prevent unnecessary downtime. When used with two power sources, the switch
also supports alarm relay contacts that you can wire to your existing alarm
circuit to notify you instantly when a power disruption occurs.
TAA-Compliant for GSA Schedule Purchases
The NGI-S08C2POE8 is compliant with the Federal Trade Agreements Act (TAA),
which makes it eligible for GSA (General Services Administration) Schedule and
other federal procurement contracts.
