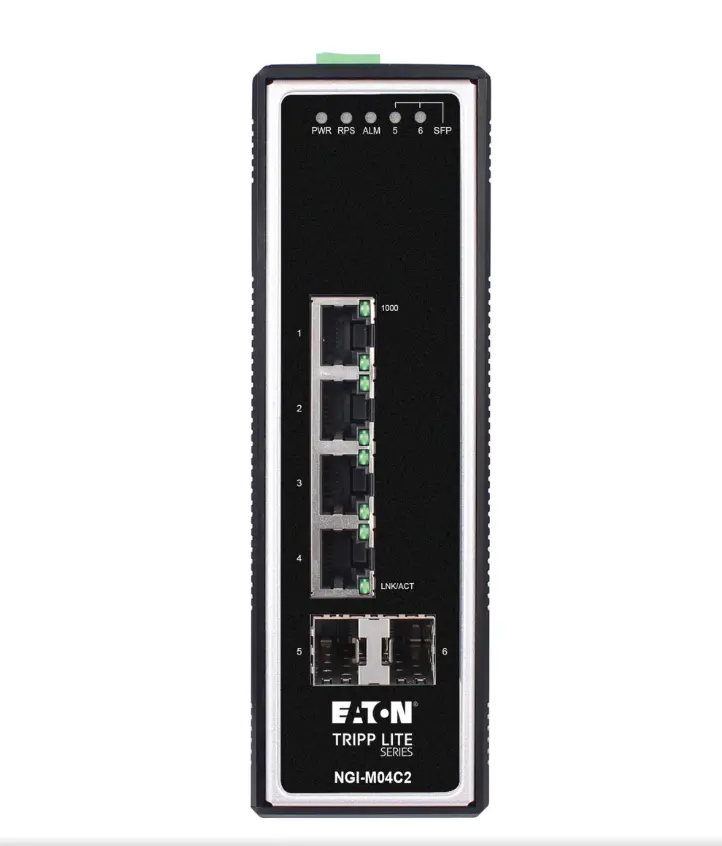

KEY FEATURES:
4-Port Managed Gigabit Ethernet Switch Connects Your
Network Devices to a LAN
This space-saving switch transmits data over a Gigabit Ethernet network. Four
auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a cable only to
the devices designated to receive it, which improves the efficiency and
potential throughput of the network. The NGI-M04C2 also features two GbE SFP
slots for uplinking data to other switches via optical fiber or copper. LEDs
indicate when the switch is powered on and which Ethernet ports are showing
activity.
Protective Metal Housing Built to Last in Harsh
Environments
The compact NGI-M04C2 adds 10/100/1000 Mbps Gigabit Ethernet capacity to
industrial automation, government, military, oil and gas, mining and outdoor
applications, as well as other environments with space constraints and wide
temperature ranges. The IP30 industrial-grade aluminum case withstands
vibration, shock and free fall. It can also operate in extreme temperatures
ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).
Monitors and Controls Devices via CLI and Web
Configuration
The NGI-M04C2 supports MAC address auto-learning and auto-aging for efficient
routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play
functionality. It also supports QoS, IGMP snooping, SFP DDMI and other device
management features that fulfill the needs of high-performance managed
industrial networks. IEEE 802.3x flow control allows smooth transmission of
large files.
Works with the Most Popular Web Browsers
The NGI-M04C2 is browser-based and works independently from the connected
computer's operating system. Because switch compatibility is based on common
hardware standards, rather than system software dependencies, the NGI-M04C2
accommodates most platforms. Preferred web browsers include Google Chrome (on
both Windows and macOS) and Microsoft Edge (Windows only).
Pre-Installed DIN Rail Clip Allows for Convenient
Installation
The device may be DIN mounted using the pre-installed rail clip, which mounts
firmly to any standard 35 mm DIN rail. Providing seamless operation in the
event of power dips or failures, the switch features redundant 6-pin 20–57VDC
terminal block power inputs to help prevent unnecessary downtime. When used
with two power sources, the switch also supports alarm relay contacts that you
can wire to your existing alarm circuit to notify you instantly when a power
disruption occurs.
TAA-Compliant for GSA Schedule Purchases
The NGI-M04C2 is compliant with the Federal Trade Agreements Act (TAA), which
makes it eligible for GSA (General Services Administration) Schedule and other
federal procurement contracts.
