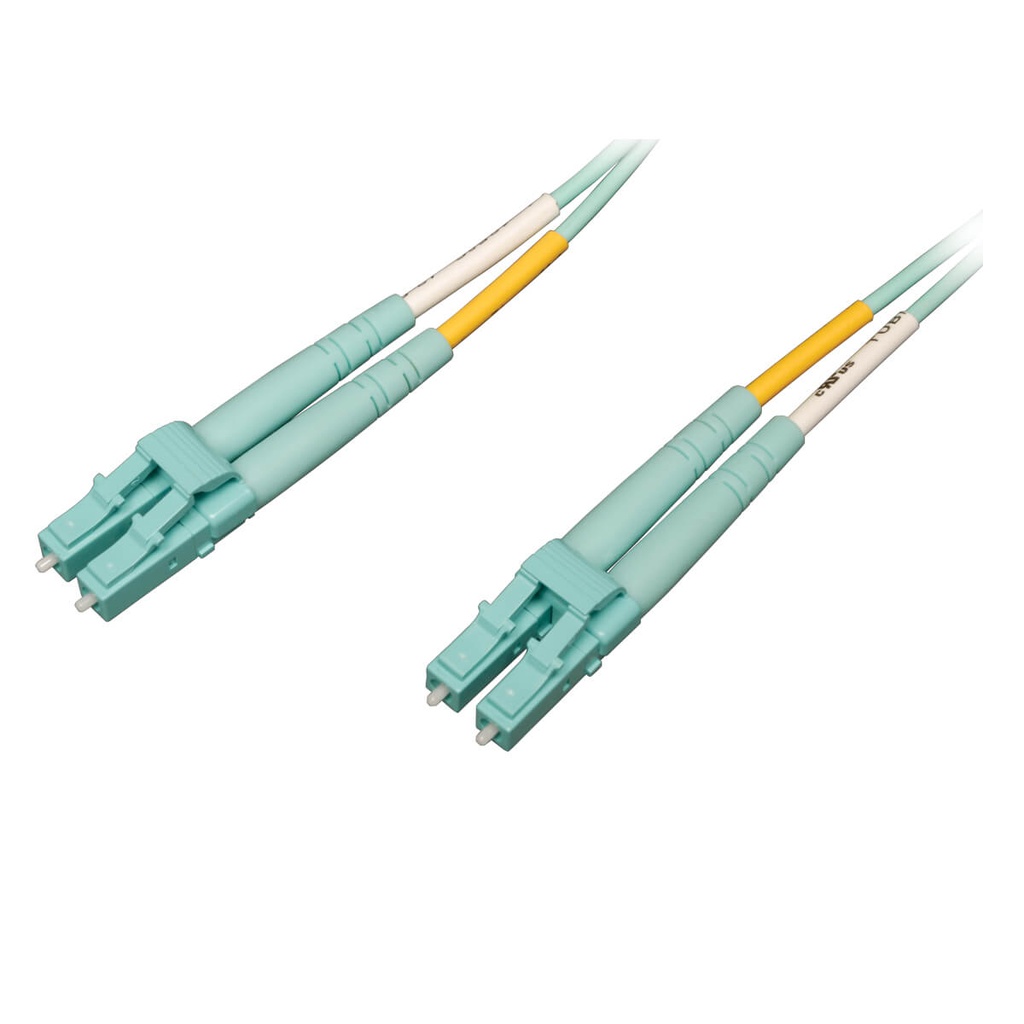

Tripp Lite N820-10M-OM4 Fiber Optic Cable Duplex MM 50/125 OM4 LC-LC 10M

​

1. OM4-Rated Cable for High-Speed Networks:

   • This cable is OM4-rated, making it suitable for high-speed networks.
   • It is recommended for 400 Gb speeds up to 100 meters at 850 nm wavelength.

2. Switchable Connector Ends:

   • The connector ends are switchable, allowing polarity conversion without tools or re-termination.
   • You can use stacked LC adapters to increase population density.

3. Backward Compatibility:

   • The cable is backward compatible with 40/100 Gb networks, facilitating future-proofing.

This fiber optic cable provides reliable connectivity for high-speed data transmission and ensures compatibility with both current and future network requirements.

• Model: N820-10M-OM4
• Type: Duplex Multimode 50/125 OM4 Fiber Patch Cable
• Fiber Type: 50/125 micron OM4-rated duplex (zipcord) fiber
• Jacket Material: Low-Smoke Zero Halogen (LSZH) Aqua jacket
• Cable Length: 10 meters (32.8 feet)
• Connectors:
  • Connector A: LC duplex (male)
  • Connector B: LC duplex (male)
• Ethernet Speed:
  • Supports 10Gb/100Gb Ethernet speeds up to 300 meters at 850 nm wavelength.
• Ideal Use Cases:
  • Suitable for high-speed networks, Fibre Channel (SAN) applications, and legacy LANs.
• IEEE Compliance:
  • Compliant with IEEE 802.3ae and TIA LOMMF standards.

This cable provides reliable connectivity for high-speed data transmission over short to medium distances.
