Key Features:
All-in-one digital manifold for
HVAC/R systems

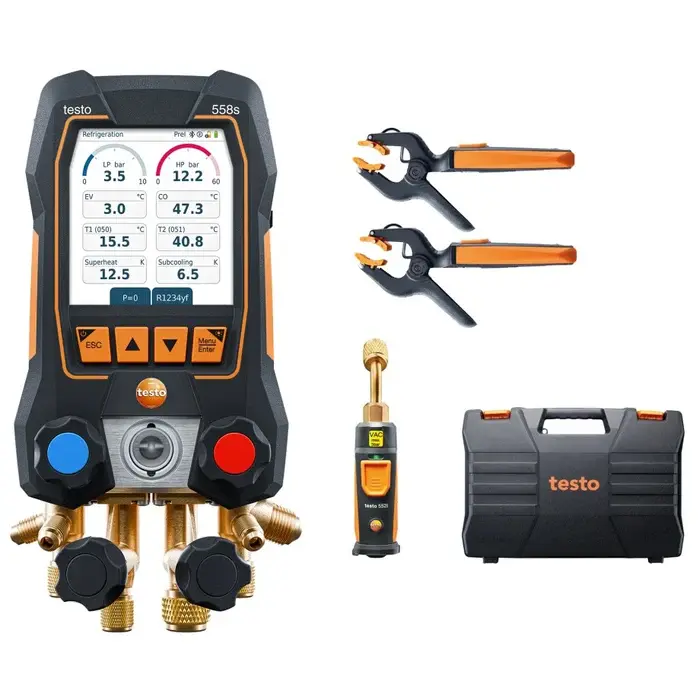

Incorporates the multifunction digital manifold plus wireless temperature
probes and a vacuum probe, enabling you to perform superheat/subcool,
evacuation, filling and tightness tests—all from one device.
Intuitive touchscreen interface
& smart connectivity

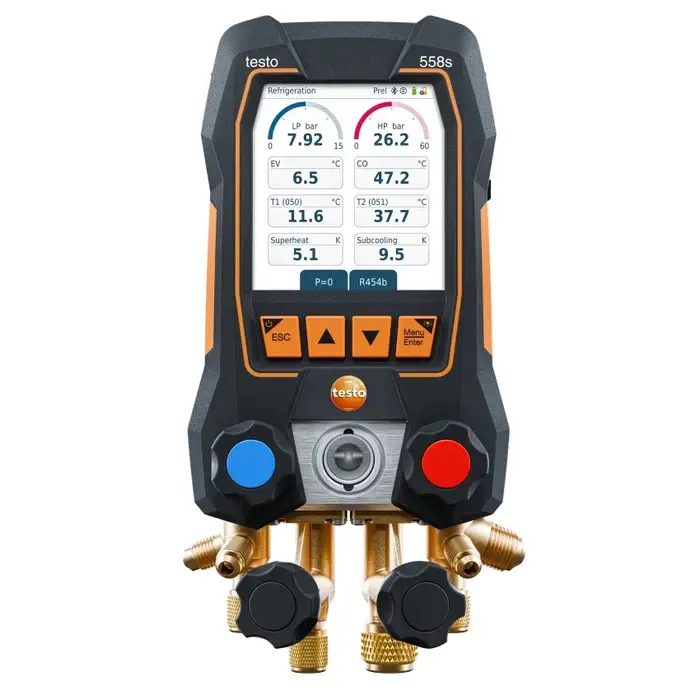

Features a large colour touchscreen with clear measurement graphs and trend
curves (30 min standard, upgradeable to 72 h) making system diagnostics fast
and intuitive.
Also supports classic keypad operation (useful when wearing gloves) and full
wireless connectivity via Bluetooth to the companion app.
Wide refrigerant compatibility
& safety
Supports over 96 refrigerants and is compatible with flammable refrigerants in
class A3 and A2L, making it future-proof and safe for modern HVAC/R systems.
High accuracy measurements
Offers pressure measurement accuracy to ± 0.25 % full scale, providing reliable
and precise data for system performance optimisation.
Robust, field-ready design
Built to endure tough job-site conditions with an IP54 protection rating and

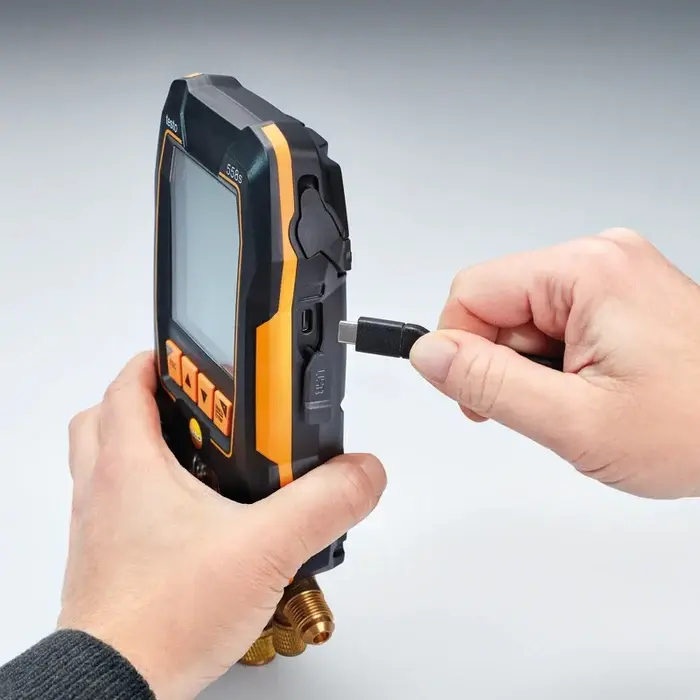

hybrid power system (USB-C rechargeable Li-ion + 3 AA batteries) ensuring the
unit is always ready for use.
Bluetooth range up to 150 m (in open space) enables flexible wiring and remote
monitoring.
Instant on-site reporting &
data management
Data logging, trend-curve visualisation and exporting via the free companion
app make it easy to document service jobs, hand over reports and keep digital
records.
Up-datable firmware &
future-proofing
Free OTA (over-the-air) updates allow new refrigerants and new features to be
added over time—so your tool stays relevant and doesn’t become outdated.
