Key Technical Specifications:
Sensor type NTC
Measuring range -50
to +250 °C
Accuracy ±1 digit ±1
°C (-50.0 to -30.1 °C)
±0.5 °C (-30.0 to
+99.9 °C)
±1% of m.v. (+100
to +250 °C)
Resolution 0.1
°C/°F/°R
Response time t99
= 10 s (measured
in moving liquid)
Sensor type Infrared
Measuring range -30 to +250 °C
Accuracy ±1 digit ±2.5 °C (-30.0 to -20.1 °C )
±2.0
°C (-20.0 to -0.1 °C )
±1.5 °C or ±1.5% of m.v.
(remaining range)
Resolution 0.1 °C
Measurement rate 0.5 s
Optics 10:1 + opening diameter of the sensor (12
mm)
Meas. spot marking 2
point laser
Spectral range 8 to 14 µm
Emissivity 0.10 to 1.00 (0.01 steps)
Laser marking on / off
General technical data
Measurement value temperature °C/°F/°R
Measurement mode Hold or auto hold (immersion probe)
Operating temperature -20 to +50 °C
Storage temperature -30 to +70 °C

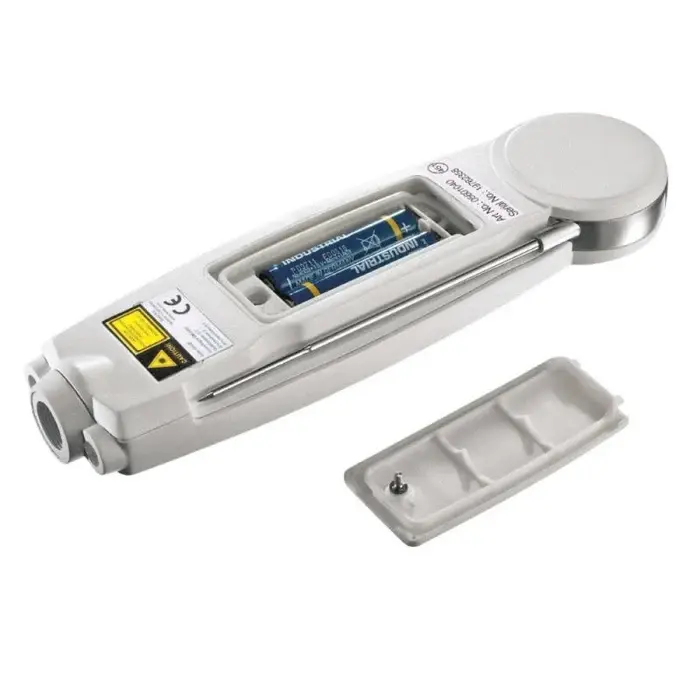

Battery type 2 AAA micro batteries
Battery life 10 h (at +25 °C)
Display LCD, single line, illuminated, with status
line (°C,°F,°R, battery, hold/auto hold, min, max, laser, measurement, emissivity)
Protection
class IP65
Dimensions 281 x 48 x 21 mm (probe folded out)
178
x 48 x 21 mm (probe not folded out)
Probe
length/diameter 106 mm / Ø 3 mm
Probe tip
diameter 32 mm / Ø 2.3 mm
Housing
material ABS / TPE / PC, diecast zinc, stainless steel
