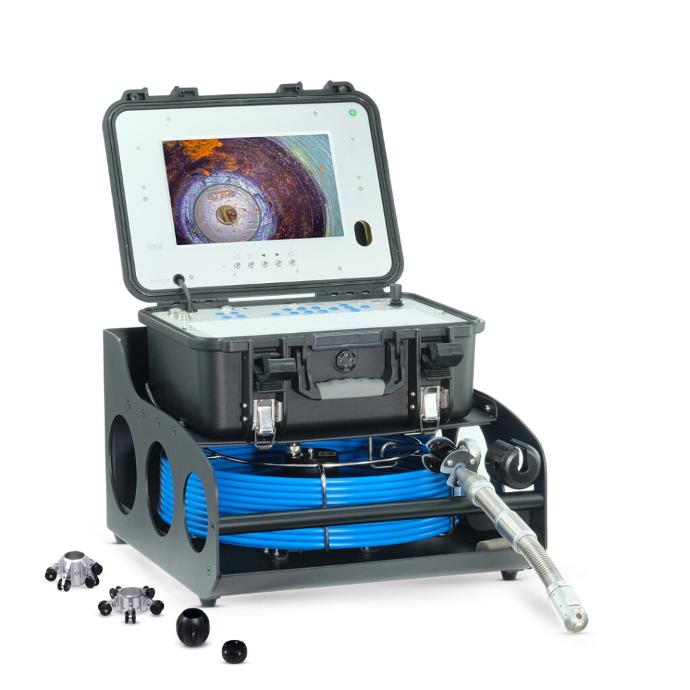

Tekneka VSA202-D8 Pipe Inspection Video Scope, 20 Meter Cable Length

Tekneka VSA202-D8 Pipe Inspection Video Scope, 20 Meter Cable Length

https://www.dotearth.ae/web/image/product.template/1978/image_1920?unique=fe54d81
(0 review)

23,700.00 AED 23700.0 AED 23,700.00 AED 25,800.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Tekneka
Warranty: 1 Year

Share

Key Features:

High-quality 10-inch super bright color LCD with sunshade cover

360° pan and 180° tilt function camera head with 2 LEDʼs

Joystick control to tilt 180° and pan 360° camera head & to reset camera position

20/30/40 meter strong fiberglass cable (Ø8mm) for better handling & stability

They have an IP68 rating for camera head (10m underwater)

Comes with a meter counter to identify the length of cable inside the pipe

Easy to export captured images & videos in USB and microSD card

Records videos with local audio at the same time & screen capture

6600mAh battery for longer life with magnificent performance

Camera skids: Ø30, Ø50 & Ø90mm

In-built keyboard, remote control & HDMI output option

Key Technical Specifications:

  • Model: VSA202-D8
  • Product Type: Pipe / Sewer Inspection Video Scope
  • Cable Length: 20 m (65.6 ft) fiberglass push rod
  • Cable Diameter: Ø8 mm
  • Application: Sewer inspection, drain inspection, pipeline diagnostics, duct inspection

Camera Specifications

  • Camera Head Diameter: Ø28 mm (1.1 in)
  • Image Sensor: 1/3″ CMOS sensor
  • Viewing Angle: Up to 180° wide viewing angle
  • Camera Rotation:
    • Pan: 360°
    • Tilt: 180°
  • Camera Lighting: 2 built-in white LEDs
  • Lens Protection: Sapphire glass lens cover
  • Depth of Field: Approx. 20 cm – 100 cm

Display & Recording

  • Monitor: 10-inch HD color LCD display with sunshade
  • Display Resolution: 1920 × 1080 HD
  • Video Resolution: 976 × 504 px effective pixels
  • Recording Functions:
    • Video recording with audio
    • Image capture (snapshot)
  • Data Storage: SD card (up to 32 GB)
  • Data Interface: USB 2.0 for data export

Cable & Inspection Features

  • Cable Material: High-strength fiberglass push rod
  • Distance Counter: Built-in pipe length counter (mm / ft)
  • Camera Control: Joystick control for pan/tilt movement and reset
  • Camera Skids: Ø30 mm, Ø50 mm, Ø90 mm

Protection & Durability

  • Camera Waterproof Rating: IP68 (up to 10 m underwater)
  • Carrying Case Rating: IP66
  • Camera Housing: Stainless steel body

Power & Battery

  • Battery Type: Rechargeable Li-ion battery
  • Battery Capacity: 6600 mAh
  • Operating Time: Up to 4 hours continuous use
  • Power Supply: 110 – 240V AC adapter

Environmental Conditions

  • Operating Temperature: -10°C to 50°C (14°F to 122°F)
  • Storage Temperature: -20°C to 60°C (-4°F to 140°F)
