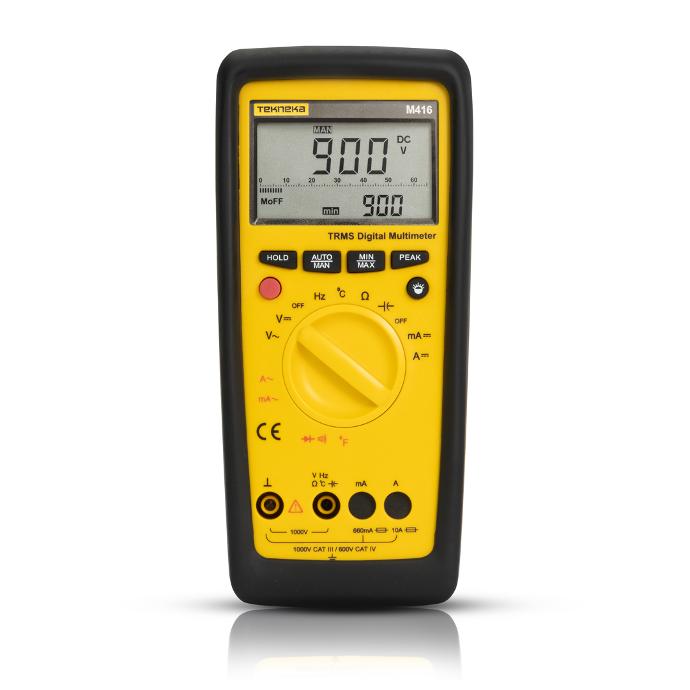

Tekneka M416 TRMS Digital Multimeter: Technical Specifications
Display:
- Type: LCD
- Backlight: Yes
- Digits: 6000 counts
Measurement Range:
- AC Voltage: 0.1 mV to 750 V
- DC Voltage: 0.1 mV to 1000 V
- AC Current: 0.1 µA to 10 A
- DC Current: 0.1 µA to 10 A
- Resistance: 0.1 Ω to 60 MΩ
- Capacitance: 1 pF to 100 mF
- Frequency: 0.01 Hz to 10 MHz
- Temperature: -20°C to 1000°C (-4°F to 1832°F)
Accuracy:
- AC Voltage: ±(0.8% + 3)
- DC Voltage: ±(0.5% + 2)
- AC Current: ±(1.0% + 3)
- DC Current: ±(0.8% + 2)
- Resistance: ±(0.8% + 2)
- Capacitance: ±(3.5% + 5)
- Frequency: ±(0.1% + 3)
Functions:
- True RMS
- Auto-Ranging
- Data Hold
- Min/Max Recording
- Continuity Test
- Diode Test
- Duty Cycle Measurement
Safety and Compliance:
- Overload Protection: Yes
- Fuse Protection: Yes
- Safety Rating: CAT III 1000V, CAT IV 600V
Power Supply:
- Battery Type: 9V (6F22)
- Battery Life: Approximately 200 hours
Physical Characteristics:
- Dimensions: 190 x 90 x 45 mm
- Weight: 400 g
- Casing: Shock-resistant, durable
Operating Environment:
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: <80% RH
Included Accessories:
- Test Leads
- Thermocouple
- Carrying Case
- User Manual
These detailed technical specifications emphasize the Tekneka M416 TRMS Digital Multimeter’s precision, reliability, and versatility, making it a top choice for professionals and hobbyists alike.
