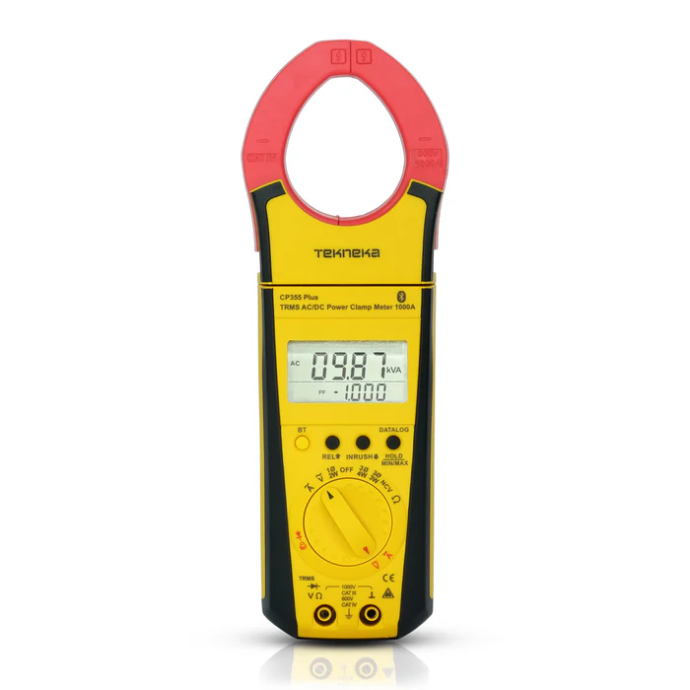

Tekneka CP355 Plus TRMS AC/DC Power Clamp Meter 1000A

https://www.dotearth.ae/web/image/product.template/1969/image_1920?unique=9d932e9
(0 review)

1,059.00 AED 1059.0 AED 1,059.00 AED VAT Excluded 1,079.00 AED

1,059.00 AED VAT Excluded 1,079.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Tekneka
    Warranty: 1 Year


    Name: Tekneka CP355 Plus TRMS AC/DC Power Clamp Meter 1000A

    ​Key Features:

    • High Accuracy: Ensures precise measurements for reliable results.
    • True RMS Technology: Provides accurate readings even with non-linear loads.
    • 1000A AC/DC Current Measurement: Handles high current applications with ease.
    • Versatile Measurements: Measures AC/DC current, voltage, resistance, continuity, diode, and more.
    • Large, Backlit Display: Easy to read in various lighting conditions.
    • Auto Ranging: Simplifies operation and reduces measurement errors.
    • Data Hold Function: Captures readings for analysis and comparison.
    • Low Battery Indication: Prevents unexpected shutdowns.
    • Auto Power Off: Conserves battery life.
    • Robust and Durable Design: Built to withstand tough jobsite conditions.
    • Ergonomic Design: Comfortable to hold and use for extended periods.
    • Safe Operation: Features designed to protect the user.
    • Rotating Clamp Jaws: Allows for easy measurement in tight spaces.
    • Affordable Price: Offers excellent value for its capabilities.


    ​Key Technical Specifications:

    1. Current Measurement

      • AC Current Range: 0 to 1000A.
      • DC Current Range: 0 to 1000A.
      • High-accuracy current measurement suitable for industrial and commercial applications.

    2. Voltage Measurement

      • AC Voltage Range: 0 to 1000V.
      • DC Voltage Range: 0 to 1000V.
      • Wide voltage range for testing various electrical systems.

    3. True RMS Measurement

      • Provides accurate readings for non-linear loads and distorted waveforms, ensuring reliability in complex systems.

    4. Resistance Measurement

      • Range: Up to 60 MΩ.
      • Ideal for continuity testing and troubleshooting electrical circuits.

    5. Capacitance Measurement

      • Range: 10nF to 1000µF.
      • Enables capacitor testing for maintenance tasks.

    6. Frequency Measurement

      • Range: 10Hz to 10kHz.
      • Suitable for analyzing power systems and variable frequency drives (VFDs).

    7. Power Measurement

      • Active Power: Accurate measurement of real power consumption.
      • Reactive Power: Measures the non-working power in electrical systems.
      • Apparent Power: Comprehensive power diagnostics for single and three-phase systems.

    8. Power Factor Measurement

      • Evaluates the efficiency of electrical equipment and systems.

    9. Harmonics Analysis

      • Measures up to the 25th harmonic, aiding in power quality assessments.

    10. Inrush Current Measurement

      • Captures peak current during equipment startup, ideal for motors and transformers.

    11. Jaw Opening Size

      • 45mm, accommodating large cables and conductors for industrial use.

    12. Display Features

      • Large LCD Display with backlighting for easy viewing in low-light environments.
      • Data Hold Function: Retains displayed measurements for convenience.
      • Bargraph Display: Quick visual representation of measurement trends.

    13. Safety Standards

      • Rated CAT IV 600V and CAT III 1000V, ensuring safe operation in high-voltage environments.
      • Overload protection for secure handling during testing.

    14. Data Logging and Connectivity

      • Internal memory for storing measurement data.
      • USB connectivity for exporting data to external devices for analysis.
