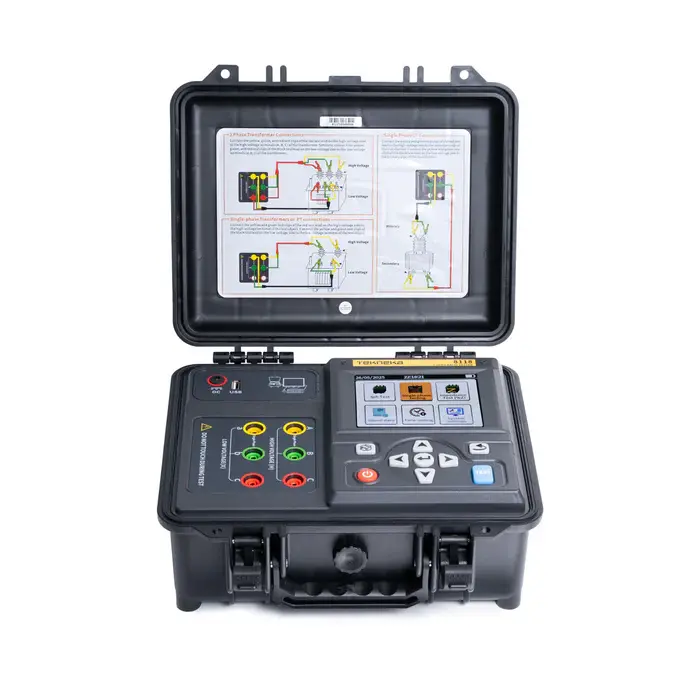

Tekneka 8118 Transformer Turns Ratio Tester

https://www.dotearth.ae/web/image/product.template/2275/image_1920?unique=293b34b
(0 review)

The Tekneka 8118 Transformer Turns Ratio (TTR) Tester delivers professional-grade performance for comprehensive transformer analysis. Featuring an auto-ranging ratio measurement from 0.9 to 10000, this versatile device supports Three-phase transformers, Single-phase transformers, Z-type transformers, and PT/CT ratio verification.

Brand: Tekneka

Model No: 8118

Warranty: 1 Year

7,900.00 AED 7900.0 AED 7,900.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Tekneka
Warranty: 1 Year

Share

Key Features:

High Accuracy Transformer Testing

  • Ensures precise turns ratio measurement with minimal error for single-phase and three-phase transformers.
  • Suitable for both on-site and laboratory testing.

Wide Measurement Range

  • Capable of measuring transformers of various ratings, making it versatile for distribution and power transformers.

User-Friendly Interface

  • Intuitive digital display with easy-to-read results.
  • Simple operation reduces testing time and errors.

Compact and Portable Design

  • Lightweight and rugged design ideal for field use.
  • Built to withstand industrial environments.

Fast and Reliable Testing

  • Quick measurement cycle for efficient workflow.
  • Reduces downtime during transformer maintenance and diagnostics.

Enhanced Safety Features

  • Built-in protection against overvoltage and incorrect connections.
  • Ensures safe operation for technicians.

Data Storage and Connectivity Options

  • Capable of storing test results for documentation and analysis.
  • Supports easy data transfer to PCs for reporting.

Battery Operated for Field Use

  • Long-lasting battery allows extended testing without frequent charging.
  • Ideal for remote locations without reliable power supply.

Multiple Testing Modes

  • Supports both single and three-phase testing.
  • Offers versatility for various transformer types and configurations.

Durable and Reliable Construction

  • High-quality components ensure long-term durability.
  • Maintains performance in harsh environmental conditions.

Key Technical Specifications:

  1. Measurement Range
    • Turns ratio (TTR) measurement: 1–20,000 (depending on transformer type)
    • Suitable for both low-voltage and high-voltage transformers.
  2. Accuracy
    • High-precision measurement with ±0.2% accuracy for turns ratio testing.
    • Ensures reliable readings for distribution and power transformers.
  3. Test Voltage
    • Output test voltage: 4–24 V AC (adjustable)
    • Compatible with a wide range of transformer winding configurations.
  4. Phase Capability
    • Supports single-phase and three-phase transformer testing
    • Includes auto-phase recognition for faster setup.
  5. Display & Interface
    • Large, high-resolution digital LCD for clear readings.
    • Multi-function interface for easy operation and data review.
  6. Load Test Capability
    • Built-in load function to verify transformer under actual load conditions.
    • Ensures accurate performance evaluation of windings.
  7. Safety Features
    • Overvoltage protection to prevent damage during testing.
    • Automatic shutdown in case of improper connection or overload.
  8. Power Supply & Portability
    • Battery-operated with long-lasting performance for field testing.
    • Lightweight, compact, and rugged design for industrial environments.
  9. Data Storage & Connectivity
    • Internal memory for storing multiple test results.
    • Supports data export to PC via USB or other compatible interfaces.
  10. Environmental & Operating Conditions
    • Operating temperature: -10°C to +50°C
    • Humidity: 0–95% non-condensing
    • Designed to withstand harsh field conditions without compromising accuracy.
  11. Compliance & Standards
    • Meets international standards for transformer testing and safety.
    • Ideal for utility, industrial, and laboratory applications.
