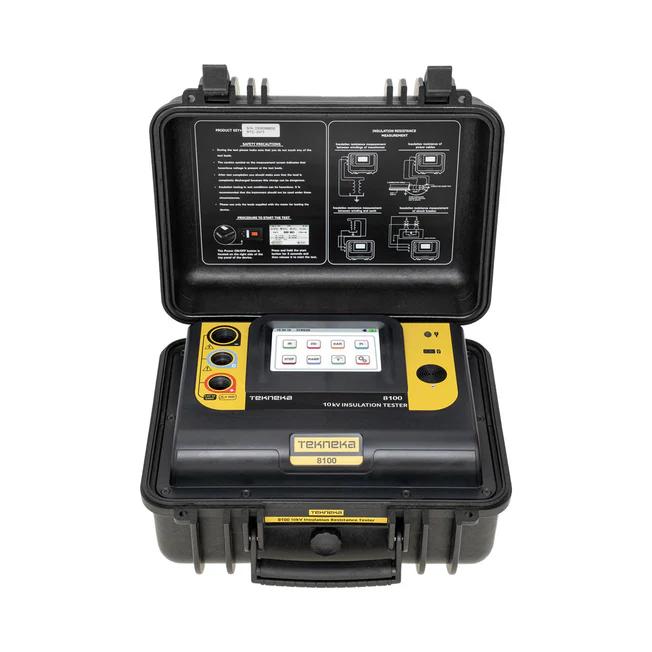

Tekneka 8100 Insulation Tester 10kV

This combination does not exist.

Brand: Tekneka

Warranty: 1 Year

Key Features:

• 5-inch fast response touch screen TFT colour display

• Capable of performing Ramp, Step, DAR, DD, and Pl tests

• It eatures a USB and Bluetooth interface for secure operation

• The range of insulation resistance is 50K to 20T

• Auditory readout along with alert sounds and test result

• Short circuit currents of 1.2mA, 3mA, and 6mA are available

• Digital filters that can be selected by the user

• Rejection of noise 8 mA

• Displays the graphical trend of the insulating resistance measurement in real time

• It utilizes both mains power and a rechargeable Li-ion battery to operate.

• Can store up-to 2000 readings & extracted in .xlsx format

• The test voltage ranges from 100V to 10,000V in increments of 10V, and from 1000V

to 10,000V in increments of 25V

• Measures AC/DC voltages ranging from 20V to 600V

• Power consumption is decreased via auto sleep mode

• Insulation leakage current is easily quantified

Key Technical Specifications:

Test Voltage Range: 100V to 10,000V in increments of 10V (100V to 1000V) and 25V (1000V to 10,000V)
Insulation Resistance Range: 0.01MΩ to 10TΩ
Accuracy: ±(2% + 2 digits)
Testing Modes: IR (Insulation Resistance), PI (Polarization Index), DAR (Dielectric Absorption Ratio), DDT (Dielectric Discharge Test), STEP, RAMP, Voltage Measurement
Display: 5-inch TFT LCD touch-screen
Data Storage: Up to 2000 readings
Connectivity: Bluetooth and USB 2.0
Power Supply: In-built rechargeable battery with up to 6 hours of continuous operation
Safety Rating: 600V CAT IV
Operating Altitude: Up to 2000 meters
Auditory Readout: Alert sounds and test result announcements
Dimensions: 270mm x 250mm x 160mm
Weight: 3.5 kg
