  2. Scarlet ST-12D Professional Class 1 Sound Level Meter

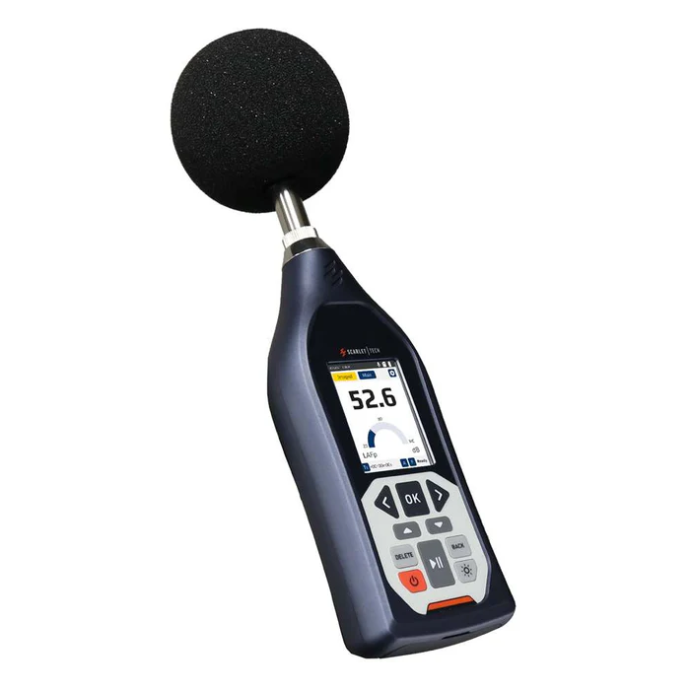

Scarlet ST-12D Professional Class 1 Sound Level Meter

https://www.dotearth.ae/web/image/product.template/2172/image_1920?unique=91d6456
(0 review)

7,299.00 AED 7299.0 AED 7,299.00 AED VAT Excluded 7,400.00 AED

7,299.00 AED VAT Excluded 7,400.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Scarlet
    Warranty: 1 Year


    Name: Scarlet ST-12D Professional Class 1 Sound Level Meter

    ​Key Features:

    • Class 1 Accuracy Compliance: Adheres to IEC 61672-1 Class 1 standards, ensuring high-precision sound level measurement for professional and legal applications.

    • Wide Frequency Range: Measures sound frequencies from 10 Hz to 20 kHz, suitable for environmental, industrial, and occupational noise assessments.

    • High Dynamic Range: Supports a measurement range from 20 dB to 140 dB, ideal for both quiet and high-noise environments.

    • Large LCD Display: Easy-to-read backlit LCD screen with real-time decibel readings, time history, and statistical analysis.

    • Data Logging & Storage: Built-in memory with USB interface for data logging, download, and analysis, perfect for reporting and documentation.

    • Frequency Weighting Filters: Includes A, C, and Z weightings for flexible and accurate sound analysis depending on use case.

    • Time Weightings: Supports Fast, Slow, and Impulse response times for detailed dynamic sound behavior monitoring.

    • Built-In Calibration: Equipped with auto or manual calibration function for reliable and consistent performance.

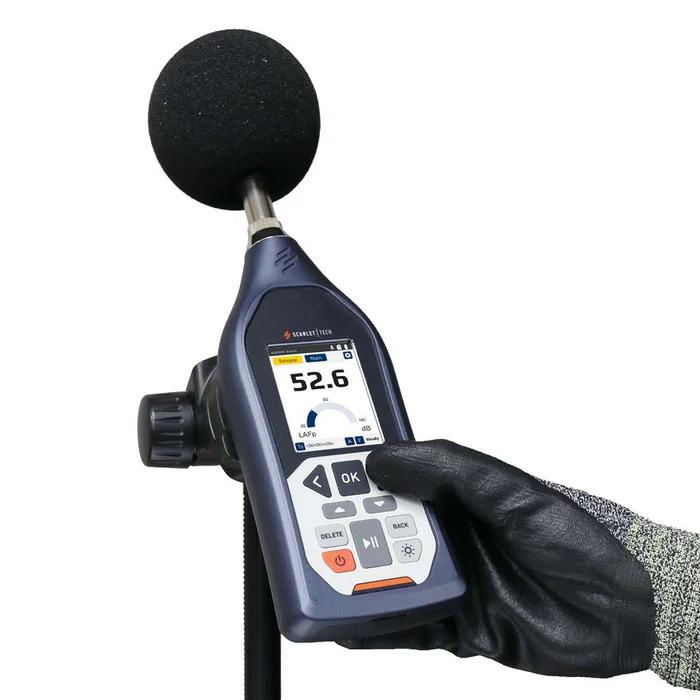

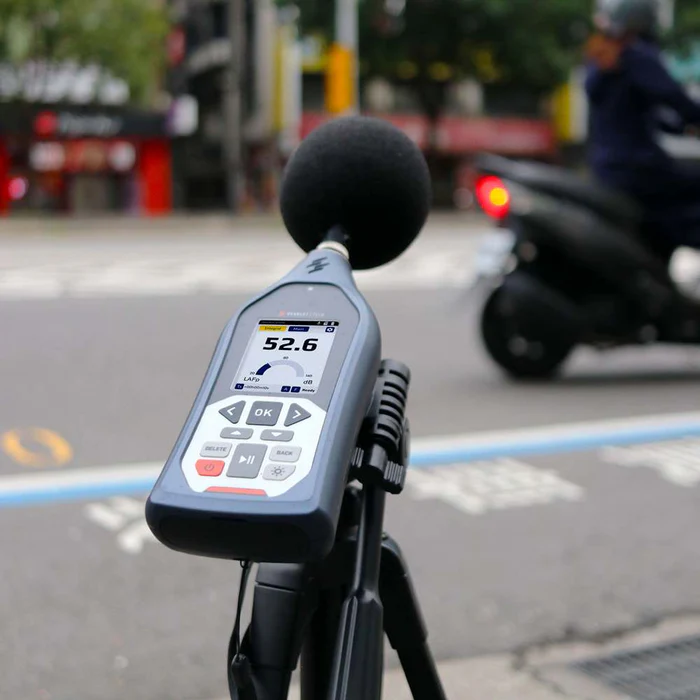

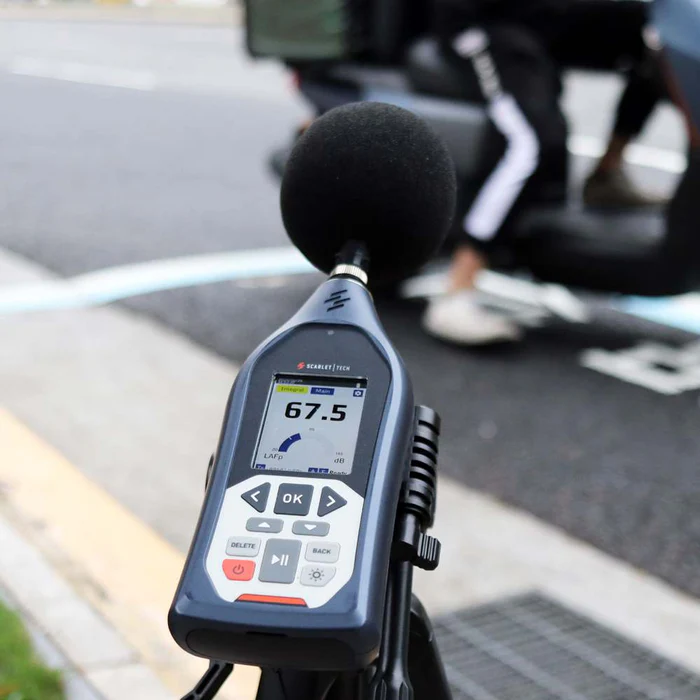

    • Tripod Mountable: Includes standard tripod thread for hands-free long-term monitoring during field surveys.

    • Battery & Power Options: Long-lasting battery life with optional AC power adapter for extended usage.

    • Compact & Portable Design: Rugged and lightweight housing ideal for on-site field measurements in various industries.


    Key Technical Specifications:

    ​

    Standards Compliance:
    IEC 61672-1 Class 1, ANSI S1.4 Type 1 – for precision-grade sound level measurements in professional and legal applications.

    Measurement Range:

    • Level Range: 20 dB to 140 dB

    • Frequency Range: 10 Hz to 20 kHz – ideal for both low and high-frequency sound analysis.

    Frequency Weighting:
    A, C, and Z weighting filters – tailored for environmental noise, occupational safety, and customized sound analysis.

    Display:

    • High-resolution backlit LCD display

    • Real-time dB level display with bar graph

    • Time history and statistical view (Lmin, Lmax, Leq, etc.)

    Microphone:

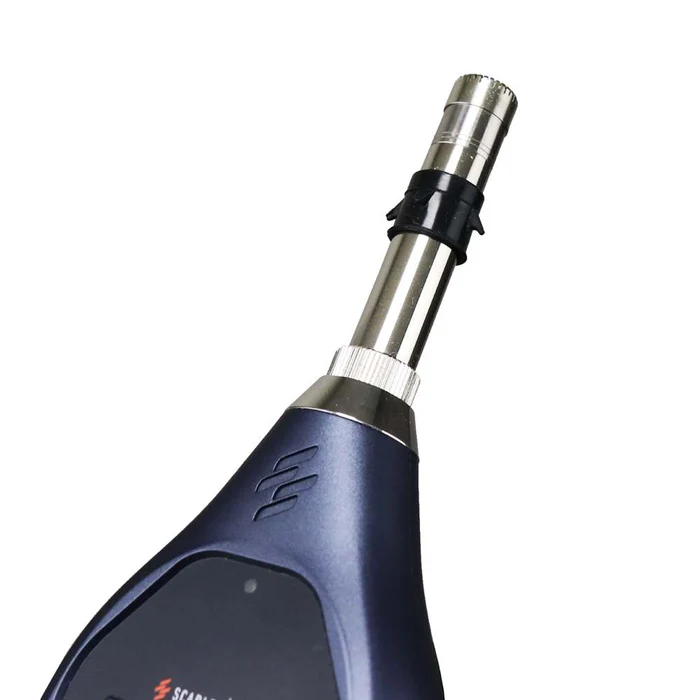

    ½-inch pre-polarized condenser microphone with high sensitivity and low noise floor.

    Data Logging:

    • Internal memory for data storage

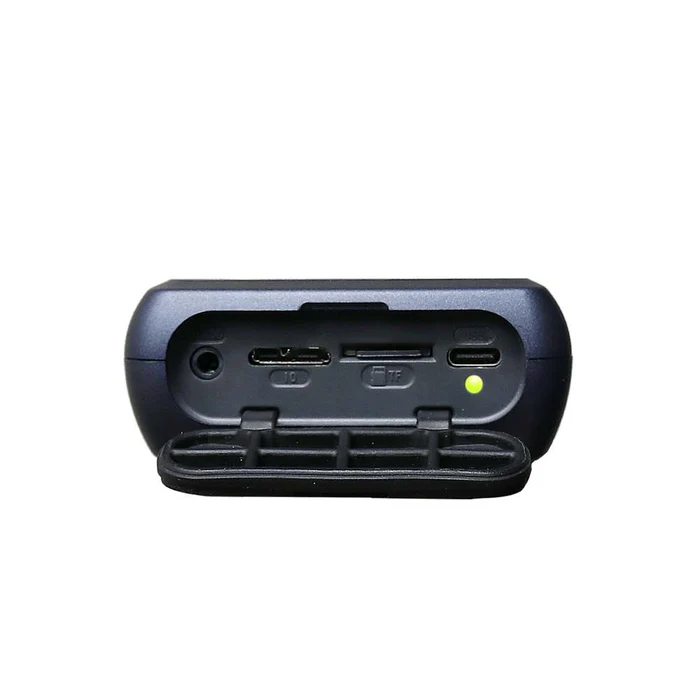

    • USB interface for data transfer and analysis

    • Logging interval: Adjustable (1s to 1hr)

    Calibration:
    Built-in calibration function
    Compatible with standard acoustic calibrators (94 dB/114 dB)

    Power Supply:

    • 4 x AA alkaline batteries

    • External power supply (USB type-C adapter): 5V, 1A

    Operating Environment:

    • Working temperature: -20 ~ 60 ℃

    • Relative humidity: 20% ~ 90%

    Dimensions & Weight:

    • Compact ergonomic design

    • Approx. 250 × 76 × 33mm

    • Weight: ~340g(including battery)

    Mounting Options:
    Standard tripod mount compatible for stationary environmental monitoring.

    Software Compatibility:

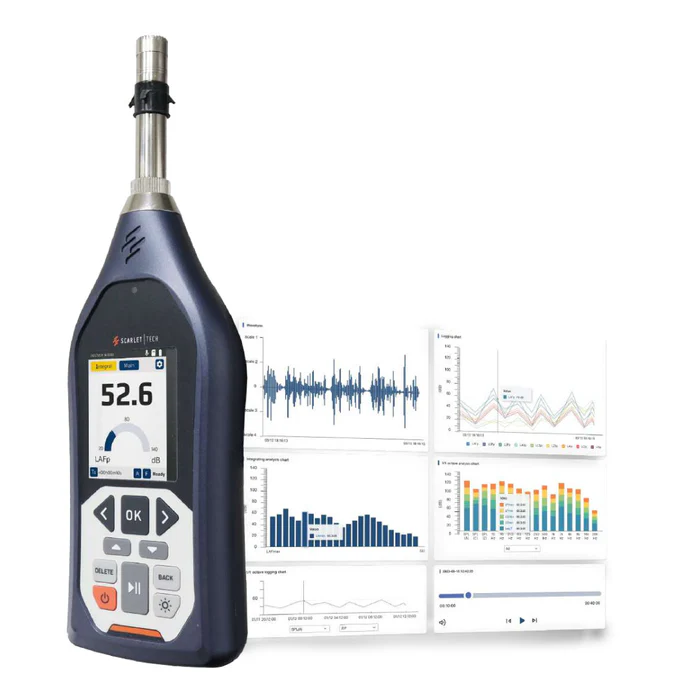

    Supplied with PC software for data review, report generation, and graph plotting.




    ​
