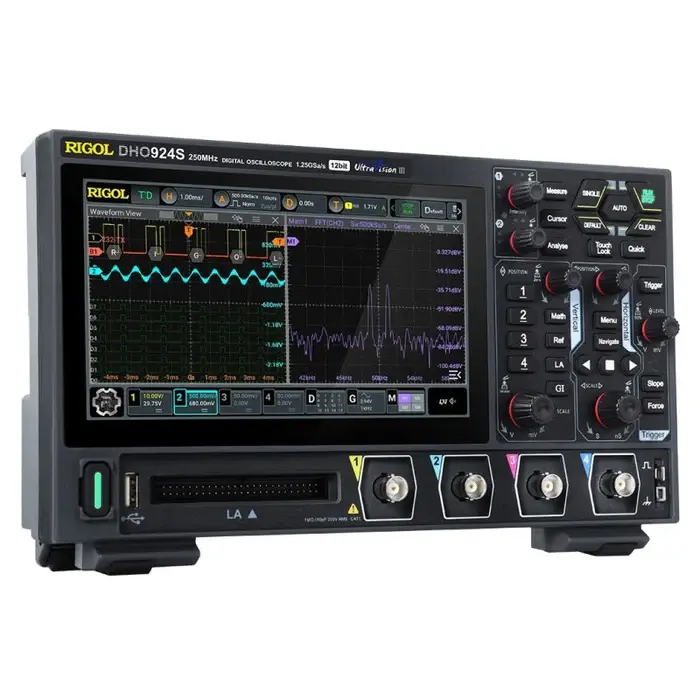

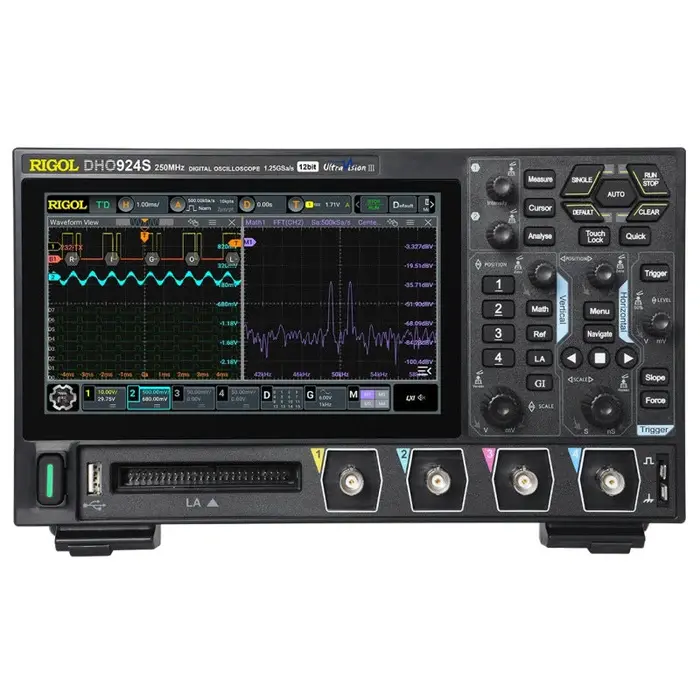

Rigol DHO924S 250MHz, 4 Channel Digital Oscilloscope

Key Features:

• Ultra-low noise floor, purer signal, never miss the small signals

• Up to 12 bits resolution for all the models of this series

• Max. analog bandwidth of 250 MHz, 4 analog channels

• 16 digital channels (std.), logic probe required to be purchased if needed

• Max. real-time sample rate of 1.25 GSa/s

• Max. memory depth of 50 Mpts

• Vertical sensitivity range: 200 μV/div to 10 V/div

• Max. capture rate of 1,000,000 wfms/s (in UltraAcquire mode)

• Digital phosphor display with real-time 256-level intensity grading

• Integrates the AFG function, bode plot analysis, histogram, digital signal analysis, and etc

• Waveform search and navigation function allows you to debug the signal anomalies faster

• 7" (1024x600) capacitive multi-touch screen

• Brand new Flex Knob brings user-friendly experience

• USB Device & Host, LAN, and HDMI interfaces (std.) for all the models of this series

• Novel and delicate industrial design, easy to operate

• Unique online upgrade

Key Technical Specifications:

Bandwidth (–3 dB): 250 MHz (4 analog channels)

Real‑time sample rate: Up to 1.25 GSa/s on single channel

Vertical resolution: 12‑bit (4 096 levels of quantisation) for high‑precision signal capture

Memory depth: Up to 50 Mpts standard memory for detailed waveform storage

Waveform capture rate: Up to 1,000,000 wfms/s in UltraAcquire mode to catch rare signal events

Vertical sensitivity: Range starting at 200 µV/div up to 10 V/div, enabling very small signal measurement

Number of digital channels: 16 digital channels (with optional logic‑probe) in addition to 4 analog channels

Input coupling & impedance: 1 MΩ ±1% input impedance, typical 15 pF input capacitance

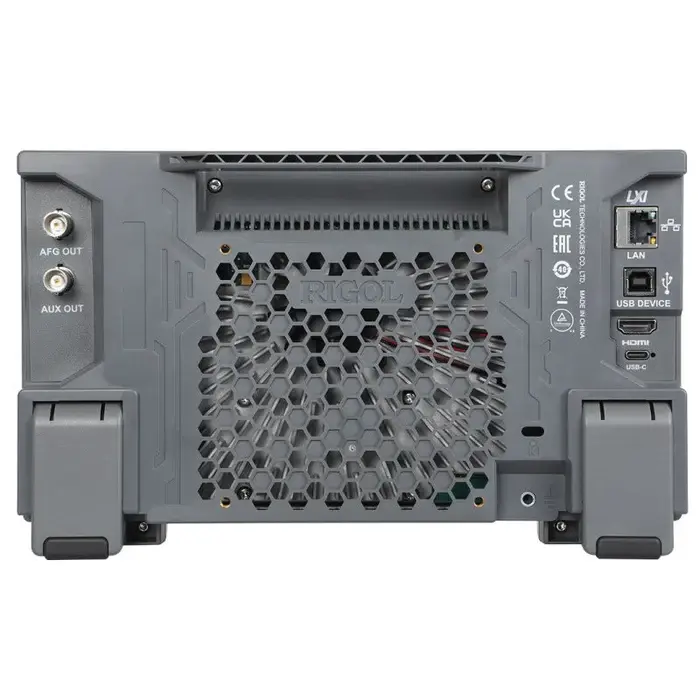

Connectivity & display: 7″ capacitive multi‑touch screen (1024×600), USB Device & Host, LAN and HDMI interfaces standard

Additional features: Arbitrary waveform generator (AWG) built‑in (S‑model version), Bode plot/loop analysis, histogram, digital bus trigger and decode functions

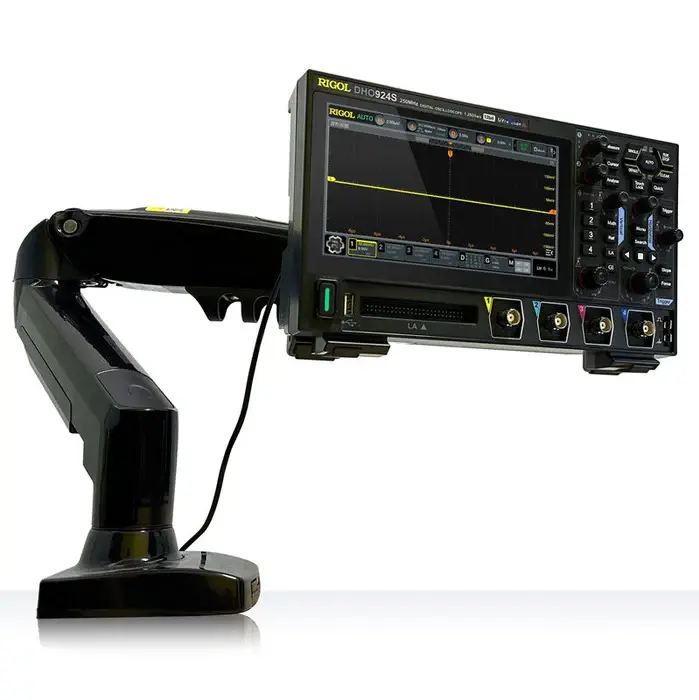

Physical & power details: Compact design supports standard monitor mount, includes Type‑C power interface (field‑portable) option
