Key Features:

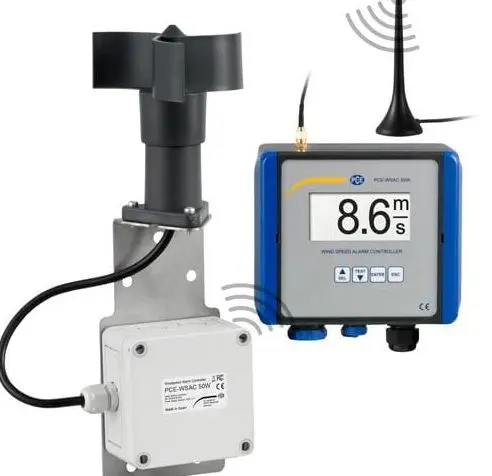

Professional Crane Wind Monitoring System
Designed for crane and industrial wind monitoring, the PCE-WSAC 50W 230
accurately measures and tracks wind speed to ensure safety and operational
control on construction sites and high-risk environments.
Wide Wind Speed Measurement Range
Capable of measuring wind speeds from 4 km/h up to 180 km/h (≈ 50 m/s) —
ideal for tracking both light breezes and strong gusts in challenging outdoor
conditions.
Robust Radio Transmission Capability
Includes a wireless sensor with up to ~750 m (2500 ft) open field range
using the free 2.4 GHz band, enabling remote monitoring of wind conditions from
a safe distance.
Integrated Alarm System with Relay Output
Built-in pre-alarm and main alarm relay system alerts operators when
wind speeds exceed preset thresholds, enhancing safety for crane operation and
site personnel.
Clear Backlit LCD Display
Features a 128 × 64 pixel backlit LC display for easy real-time viewing
of wind speed data in selectable units (km/h, mph, m/s).
Analog Output for External Systems
Equipped with a standard 4 … 20 mA analog output, allowing seamless
integration with external controllers and data acquisition systems for advanced
wind analysis.
Durable Construction & Weather-Resistant Design
The rugged plastic housing with IP65 protection and stainless steel
ball bearings ensure reliable performance in harsh environments and
long-term outdoor use.
Wide Operating Temperature Range
Operates reliably in extreme climates with an ambient temperature range from
–20 °C to +70 °C (–4 °F to +158 °F), suitable for global industrial use.
Portable Wind Sensor with Stainless Steel Mounting
Comes with a stainless steel holder and self-leveling bracket, ensuring
easy installation and stable wind measurement even on moving crane booms.
