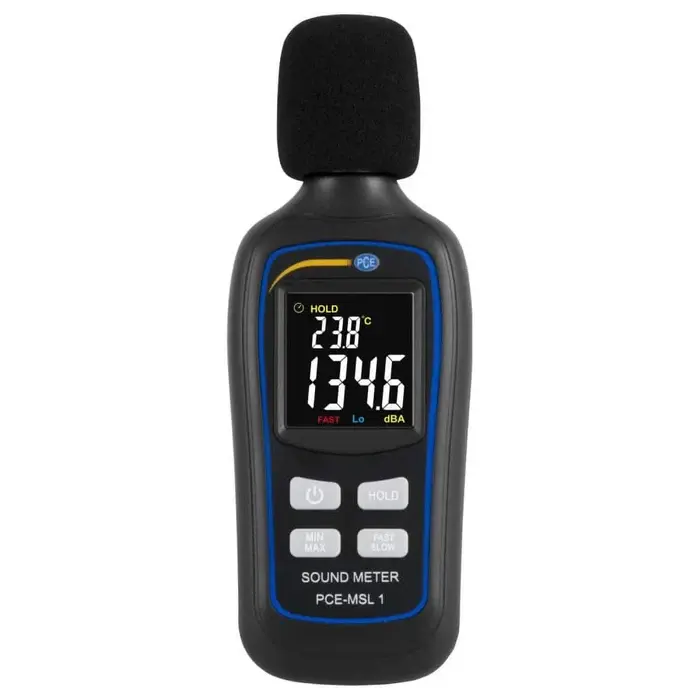

PCE-MSL 1 Mini Sound Level Meter

PCE-MSL 1 Mini Sound Level Meter

https://www.dotearth.ae/web/image/product.template/2297/image_1920?unique=3235ed6
(0 review)

Model No: PCE-MSL 1

145.00 AED 145.0 AED 145.00 AED 199.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: PCE
Warranty: 6 Months

Share

Key Features:

  1. High-Accuracy Sound Measurement (Class II Standard)
    • Meets the IEC 61672-1 Class II standard for sound level meters.
    • Measures sound levels from 35 dB to 135 dB with accuracy of ±2 dB.
    • Dynamic range of 50 dB.
  3. Wide Frequency Range & A-Weighting for Real-World Sound Environments
    • Frequency measurement range from 31.5 Hz to 8 kHz, covering a broad spectrum of ambient noise sources.
    • A-frequency weighting (typical for human hearing relevance) for accurate ambient noise assessment.
  5. Fast / Slow Time Weighting & Real-Time Response
    • Offers FAST time weighting (125 ms) and SLOW (1 s) so you can adapt measurement speed to environment.
    • Display update interval of just 300 ms for responsive readings.
  7. Dual Functionality: Sound + Temperature Measurement
    • Built-in temperature measurement (-20 °C to 70 °C) alongside sound level measurement, letting you monitor environmental conditions in one tool.
    • Temperature accuracy: ±1.5 °C.
  9. User-Friendly Display & Data Features
    • Colour back-lit LCD for clear readings even in low light.
    • Data HOLD function to freeze current measurement and MAX/MIN capture of extreme values.
    • Over-range visual indication (e.g., displays “HI” if above 100 dB) for intuitive alerting.
  11. Compact, Portable Design & Long Battery Life
    • Lightweight (≈ 73 g) and compact dimensions (144 × 56 × 30.5 mm) ideal for mobile use.
    • Operates on 3× AAA batteries with battery life of at least 60 hours in typical usage.
  13. Auto Power-Off Feature & Robust Construction
    • Auto power-off after ~15 minutes of inactivity (can be disabled) helps conserve battery.
    • Sturdy ABS plastic housing for durability in industrial or field settings.
  15. Ideal for Multiple Applications
    • Designed for safety engineers, industrial hygiene, construction site noise assessments, university labs, schools and general ambient noise monitoring.
    • Handy for compliance testing, environmental surveys or quick field checks.



Key Technical Specifications:

  • Measuring (sound level) range: 35 … 135 dB.
  • Dynamic range: 50 dB.
  • Frequency (operating) range: 31.5 Hz … 8 kHz.
  • Frequency weighting: A-weighted (A-rating).
  • Time weighting / response: FAST = 125 ms, SLOW = 1 s.
  • Accuracy (sound measurement): ±2 dB.
  • Resolution (sound) display: 0.1 dB.
  • Microphone type: 1/2″ electret condenser microphone.
  • Temperature measurement (ambient): range -20 °C … +70 °C (-4 °F … 158 °F).
  • Temperature measurement accuracy: ±1.5 °C (±2.7 °F).
  • Update rate / data refresh: 300 ms.
  • Power supply: 3 × 1.5 V AAA batteries.
  • Battery life: < 60 hours (typical usage).
  • Automatic shut-off: after 15 minutes inactivity (can be disabled).
  • Operating conditions: 0 °C … +60 °C (32 °F … 140 °F), 10 … 90 % RH.
  • Storage conditions: 0 °C … +60 °C (32 °F … 140 °F), 10 … 70 % RH.
  • Dimensions: 144 × 56 × 30.5 mm (≈ 5.6″ × 2.2″ × 1.2″).
  • Weight: ≈ 73 g (≈ 2.5 oz) (without batteries).
  • Standard compliance: IEC 61672-1 Class II.
