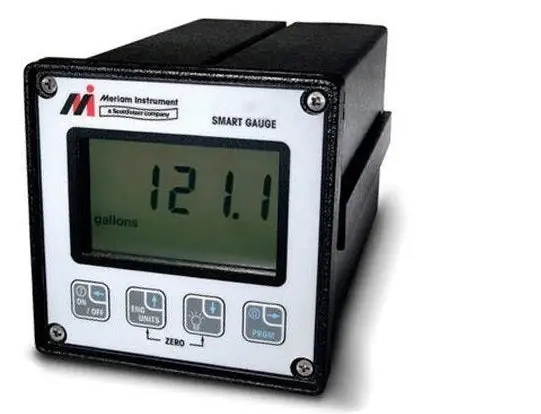

Meriam M2110 Series Digital Smart Gauge

Meriam M2110 Series Digital Smart Gauge

https://www.dotearth.ae/web/image/product.template/2279/image_1920?unique=0bb5609
(0 review)

Meriam’s M2110 Series Smart Gauge is back by popular demand! It features Meriam’s new Embedded Pressure Instrument (EPI) for the latest technology while retaining the same enclosure and user interface as the original design. The large display, fl exible mounting (Panel, Pipe or Bench top) and power options (24 VDC, Battery or AC) make it the ideal gauge for almost any application. The M2110 features NIST traceable accuracy of +0.05% F.S., independent of temperature effect, at a very reasonable price.

Pressure ranges are now available to measure differential, gauge, compound gauge and absolute for a variety of gases and liquids. The display can be read out in any of the selectable engineering units or be scaled for fl ow rate or tank level depending on model selected.

An adjustable damping feature minimizes the effects of pulsating pressures. SPDT relays on AC powered units or the 4-20mA output on 24VDC units make the M2110 an ideal choice for many control and recording functions. Both models also include RS232C communications for additional control and data logging capabilities.

Brand: Meriam

Model No: M2110

Warranty: 1 Year


9,500.00 AED 9500.0 AED 9,500.00 AED 9,599.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Meriam
Warranty: 1 Year

Share

Key Features:

Pressure Accuracy

Accuracy: + 0.05% FS. No temperature effect from -4o to 122o F (-20o to +50o C)

Engineering Units M2110P (Pressure)

mmHg, PSI, in Hg, mbar, Bar, kPA, Inches H2O (Select 20o C, 4o C or 60o F), Kg/cm2, cmH20 and user defined.

M2110F (Flow) & M2110L (Level)

gallons, pounds, cubic feet, liters, percent, kilograms, cubic meters, Inches H2O and user defined.

Damping Rates

Exponential damping with user selectable time constant from 0.1 to 50 seconds.

Media Compatibility

DN: Non-isolated differential sensor for clean, dry, non-corrosive gases.

DI: Isolated differential sensor for fluids compatible with 316L SS and Viton.

GI, CI or AI: Isolated gauge or absolute sensor for fluids compatible with 316L SS

Pressure Limits

DN: 2x F.S. when pressurized on high side only and 150 PSI static when applied to both sides simultaneously.

DI: 3x F.S. (P1-Hi) on Differential units - 1000 PSI static.

DI: 3x F.S. (P2-Lo) or 150 PSI, whichever is less.

GI, CI and AI: 2x F.S.

Selectable Timeout (Battery Models)

User selectable shut-off. Programmable at 1, 2, 5, 10, 15, 25 minutes.

Lockout

Two digit code to prevent inadvertent resetting of configurations

Adjustable Deadband (SPDT Relay Models)

Value can be set to 0, 0.1, 0.2, 0.5, 1, 2, 5 and 10% of F.S.

Key Technical Specifications:

Enclosure

4 pounds. 1/4” DIN (3.8”x3.8”x6.5”) aluminum enclosure with epoxy finish.

Standard unit is NEMA 4X on front panel only. Battery and 4-20mA units are NEMA 4X throughout

Keypad

Sealed membrane type with 4 dome contact style buttons

Display 4.5 digit LCD, 0.6” high (15.24 mm) LED Backlight

Power

Standard unit has selectable 110 VAC 50/60 HZ, 240 VAC 50/60 HZ or 24 VDC power.

Lithium Battery (2 - “D” Cells on battery board).

Wetted Parts

DN: 316L S.S., Brass, Viton

DI: 316L S.S., Viton O-rings

CI, GI and AI: 316L S.S.

Connections

1/8” FNPT, 316L SS

DI Sensors Only: 5/16 - 24 SAE/MS J1926 fl ushing ports with 316L

SS plugs (2 each optional) (Consult factory for other materials)

Accuracy

Pressure: + 0.05% FS.

Analog Output (3 Wire): + 0.05% FS. + 3 Counts

Zero Drift: + 0.015% FS. - Zero prior to use eliminates this effect.

Temperature Specifications

Storage: -40° F to 140° F (-40° C to 60° C)

Operating: -4° F to 122° F (-20° C to 50° C)

Pressure Ranges

(DN) Differential, Non-Isolated,

Dry 0-10”, 0-28”, 0-415”, 0-2,000” H2O

(DI) Differential, Isolated, Wet

0-5, 0-15, 0-30, 0-100,

0-300, 0-500 PSID

(CI) Compound Gauge, Isolated

-15 to 15, -15 to 30, -15 to 50, -15 to 100,

-15 to 300, -15 to 500, -15 to 1,000, -15 to 3,000 PSIG

(AI) Absolute, Isolated

0-17, 0-38, 0-100, 0-1,000 PSIA
