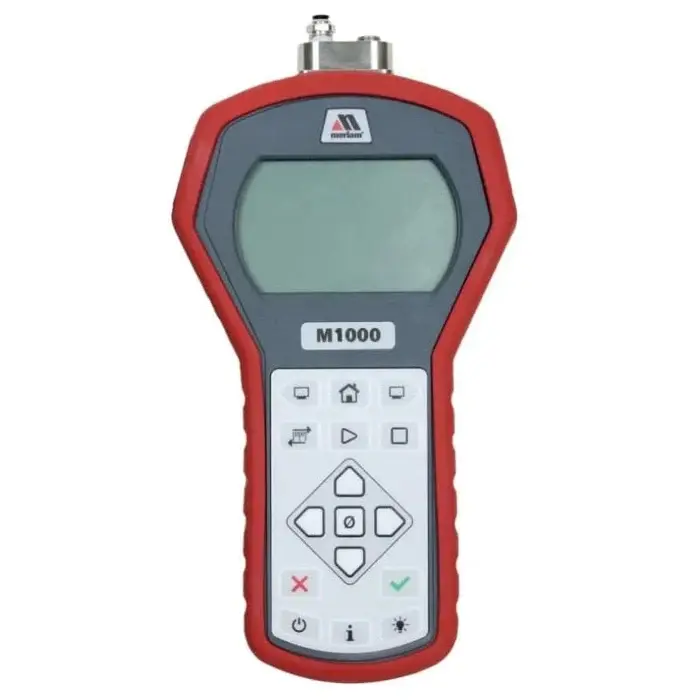

Meriam M1000 Series Smart Calibrator

Key Features:

Features on M1000

▪ Compact and easy to use

▪ Zero key and user adjustments for manual calibration

▪ Compound, Absolute, and Differential pressure sensors

▪ Protective red boot

Applications

▪ Leak testing for low pressure gas systems

▪ Pressure drop monitoring across filters

▪ Monitoring vacuum on condensers and pumps

▪ Common features include damping, Min/Max, averaging

▪ Options: fitting kit, vacuum & pressure hand pumps, carrying case

▪ Device ships with calibration certificate traceable to NIST

Key Technical Specifications:

Accuracy

▪ +/- 0.25% FS

Media

▪ Clean, dry, non-corrosive gas

Pressure ranges

▪ 0 to 15, 30, 100 psi Absolute non-Isolated

▪ -1 to 1, -5 to 5, -14.5 to 15, 30, 50, 100 psi Differential Non-Isolated

▪ -1 to 1, -5 to 5, -14.5 to 15, 30, 50, 100 psi Compound Non-Isolated Measure Units

Measurement Units

▪ 8 units: PSI, inH20, mmH2O, inHg, mmHg, kPa, Bar, mBar

Display Resolution

▪ 6 digits

Temperature Specifications

▪ Storage: –20 °C to 70 °C (–4 °F to 158 °F)

▪ Operating: -4C to 50C

Connections

▪ 1/8” Female NPT 316SS

Dimensions

▪ 9.8 in (248.9 mm) x 5.2 in (132.1 mm) x 2.3 in (58.4 mm) Power

▪ 4 AA
