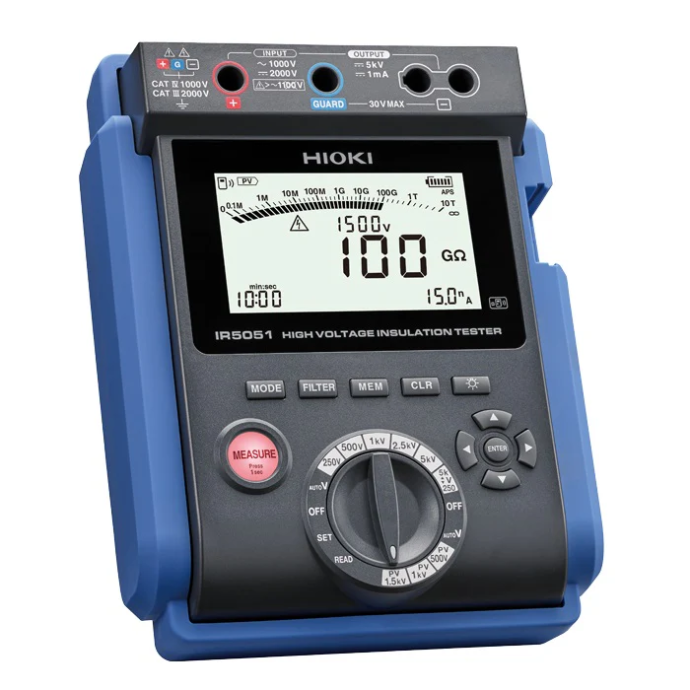

High Voltage Insulation Testing: Accurately measure insulation resistance up to 5kV, essential for high-voltage equipment maintenance and safety.
Wide Measurement Range: Tests insulation resistance from 0.00 MΩ to 10 TΩ, covering a broad spectrum of applications.
Solar PV System Testing: Safely and accurately measure insulation resistance of live solar PV systems up to 2000V, improving efficiency and safety in renewable energy maintenance.
Automatic Diagnostics: Calculates and displays Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Dielectric Discharge (DD) for in-depth insulation analysis.
Data Memory: Stores measurement data, reducing manual reporting errors and streamlining workflows.
Versatile Connectivity: Offers both wireless and USB communication options for seamless data transfer and report generation.
Portable and Rugged: Compact, lightweight design with an IP65-rated carrying case for easy transport and protection in harsh environments.
Key Technical Specifications:
Test Voltage Levels: 500V, 1000V, 2500V, and 5000V (5kV)
Insulation Resistance Measurement Range: Up to 10TΩ
Accuracy: High-precision readings with True RMS technology
Display: Large digital LCD with backlight for enhanced visibility
Data Storage: Built-in memory for storing multiple test results
Automatic Discharge Function: Ensures operator safety by discharging residual voltage
Comparator Function: Pass/fail indication based on preset threshold values
Power Supply: Rechargeable battery with long operational life
Safety Rating:CAT IV
2000V for industrial applications
Build Quality: Rugged, portable, and IP-rated for outdoor and harsh environments
