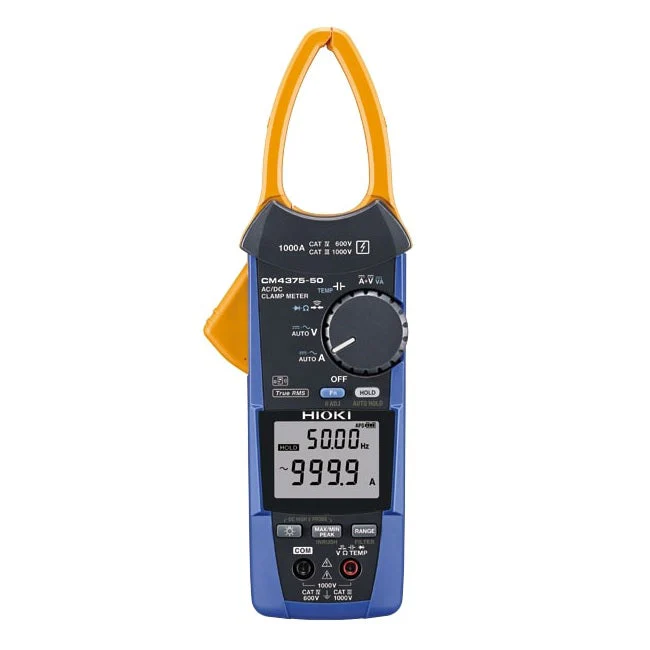

Hioki CM4375-50 AC/DC Clamp Meter
https://www.dotearth.ae/shop/hioki-cm4375-50-ac-dc-clamp-meter-1982 https://www.dotearth.ae/web/image/product.template/1982/image_1920?unique=34169ab
(0 review)
Brand: Hioki |
Warranty: 1 Year |
Name:
Hioki CM4375-50 AC/DC Clamp Meter
Key Features:
- True RMS Measurement: Ensures accurate readings even in non-sinusoidal waveforms, crucial for modern electrical systems.
- Wide Measurement Range: Accurately measures a broad range of AC/DC currents, covering a variety of applications.
- High Accuracy: Delivers precise measurements with minimal error, increasing the reliability of your readings.
- Fast Response Time: Quickly captures transient events and fluctuations, allowing for real-time monitoring and troubleshooting.
- Rugged and Durable: Designed to withstand harsh environments and demanding job site conditions.
- Ergonomic Design: Comfortable to hold and use for extended periods, reducing user fatigue.
- Data Logging Capability: Stores measurement data for later analysis and reporting.
- Bluetooth Connectivity: Enables wireless data transfer to mobile devices or computers for easy data management and analysis.
- Backlit Display: Ensures clear visibility in low-light conditions.
- Safety Features: Equipped with safety features to protect the user from electrical hazards.
Key Technical Specifications:
Current Measurement
- AC/DC Current Range: 1A to 1000A.
- Ideal for a wide range of applications, from low-current circuits to high-capacity power systems.
Voltage Measurement
- AC/DC Voltage Range: 6.000V to 1700V.
- Capable of handling extra-high voltage measurements, making it suitable for industrial and utility-scale systems.
True RMS Technology
- Provides accurate measurements even for distorted waveforms and non-linear loads.
Resistance and Continuity Testing
- Resistance Measurement: 600.0Ω to 60.00MΩ.
- Includes a continuity buzzer for quick circuit checks.
Frequency Measurement
- Range: 10.0Hz to 10.00kHz for analyzing electrical systems with varying frequencies.
Inrush Current Measurement
- Captures startup currents of motors and transformers with precision, ensuring accurate diagnostics.
Jaw Opening Size- 34mm (1.34 inches): Easily clamps around large cables and conductors for versatile use.
Durability
- Dustproof and Waterproof: Rated IP54 for use in harsh conditions.
- Withstands a 1-meter drop, ensuring reliability in rugged environments.
Advanced Features
- Low-Pass Filter: Reduces high-frequency noise for stable readings in inverter circuits.
- Auto-Zero Function: Simplifies DC measurements by eliminating offset errors.
Display
- Large backlit dual-display for clear visibility in dimly lit areas..
Operating Conditions
- Temperature Range: -25°C to 65°C (-13°F to 149°F).
- Designed for reliable performance across extreme environmental conditions.
