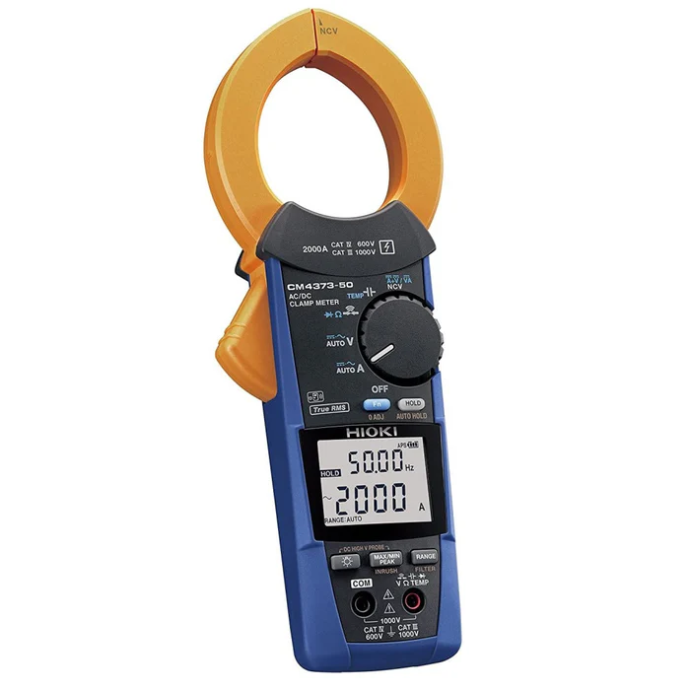

Hioki CM4373-50 AC/DC Current Clamp Meter

Hioki CM4373-50 AC/DC Current Clamp Meter

https://www.dotearth.ae/web/image/product.template/2008/image_1920?unique=96f217c
(0 review)

1,499.00 AED 1499.0 AED 1,499.00 AED 1,519.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Hioki
Warranty: 1 Year

Share

​Key Features:

  • True RMS AC/DC Current Measurement:
    • Accurately measures both AC and DC currents, including distorted waveforms, for precise readings.
  • High Current Capacity:
    • Handles up to 500A AC/DC, making it suitable for high-current applications.
  • Wide Measurement Range:
    • Covers a broad spectrum of current values, from low to high, minimizing the need for multiple meters.
  • Built-in Logger:
    • Records measurement data for later analysis and documentation.
  • Bluetooth Connectivity:
    • Enables wireless data transfer to smartphones or computers for easy data analysis and reporting.
  • Backlit Display:
    • Easy to read in dimly lit environments.
  • Data Hold Function:
    • Freezes readings for easy recording and analysis.
  • Auto Ranging:
    • Automatically selects the appropriate measurement range for optimal accuracy.
  • Compact and Durable Design:
    • Built to withstand tough jobsite conditions.
  • Ergonomic Design:
    • Comfortable to use for extended periods.

​Key Technical Specifications:

Current Measurement Range

  • AC Current: 0.10A to 2000A True RMS.
  • DC Current: 0.10A to 2000A.
  • Accurately measures both low and high current levels for versatile applications.

Voltage Measurement Range

  • AC Voltage: 1.0V to 1000V True RMS.
  • DC Voltage: 1.0V to 1000V.
  • Supports high-voltage measurement suitable for industrial and renewable energy systems, including solar power.

Resistance Measurement

  • Range: 0.1Ω to 600kΩ.
  • Ideal for checking circuit continuity and troubleshooting.

Frequency Measurement

  • Range: 10Hz to 1kHz.
  • Accurately measures system frequency for detailed analysis.

Inrush Current Measurement

  • Measures inrush currents during motor and equipment startup, aiding in diagnostics and system optimization.

True RMS Technology

  • Delivers precise measurements of sinusoidal and non-sinusoidal waveforms, critical for modern electrical systems..

Safety Ratings

  • CAT IV 600V, CAT III 1000V: Ensures safe operation in high-energy environments.
  • Designed for both residential and industrial electrical systems.

Jaw Opening Capacity

  • Maximum Diameter: 55mm (2.17 inches).
  • Suitable for measuring large conductors and cables..

Bluetooth Compatibility

  • Wireless data transfer for real-time monitoring and seamless integration with mobile devices or PC software.

Display

  • Large backlit LCD with dual display capability for easy visibility in low-light conditions.

Data Hold Function

  • Freezes the displayed reading for convenient viewing in complex situations.

Auto Zero DC Function

  • Eliminates offset errors, ensuring accurate DC current measurements.

Auto Power Off

  • Automatically powers down the device during inactivity to extend battery life.

Accessories Included

  • Comes with test leads, batteries, carrying case, and a user manual for immediate use.
