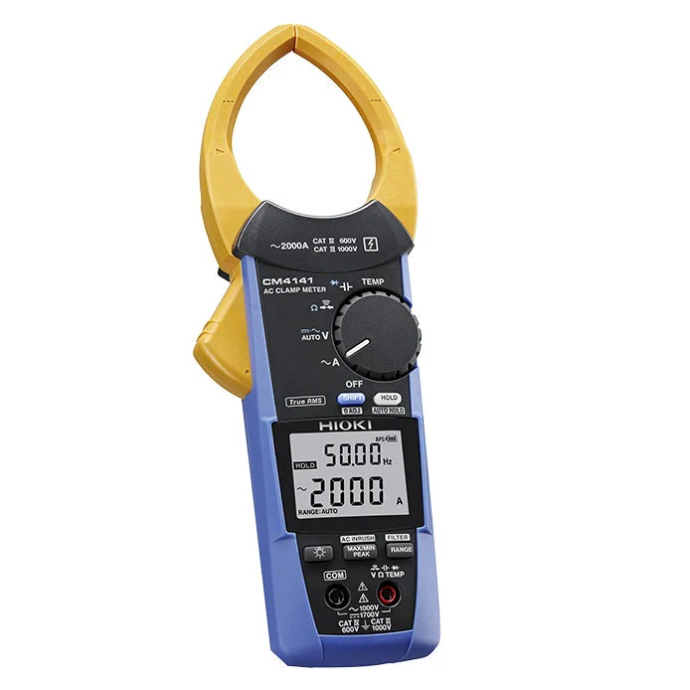

Hioki CM4141 AC Clamp Meter

https://www.dotearth.ae/web/image/product.template/1971/image_1920?unique=60236a7
(0 review)

1,079.00 AED 1079.0 AED 1,079.00 AED VAT Excluded 1,099.00 AED

1,079.00 AED VAT Excluded 1,099.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Hioki
    Warranty: 1 Year


    Name: Hioki CM4141 AC Clamp Meter

    ​Key Features:

    • High Accuracy: Ensures precise measurements for reliable results.
    • True RMS Technology: Provides accurate readings even with non-linear loads.
    • 2000A AC Current Measurement: Handles high current applications with ease.
    • Slim Jaw Design: Allows for easy measurement in tight spaces.
    • Wireless Communication: Enables easy data transfer to smartphones or tablets.
    • Versatile Measurements: Measures AC/DC current, voltage, resistance, frequency, and more.
    • Large, Backlit Display: Easy to read in various lighting conditions.
    • Auto Ranging: Simplifies operation and reduces measurement errors.
    • Data Hold Function: Captures readings for analysis and comparison.
    • Low Battery Indication: Prevents unexpected shutdowns.
    • Auto Power Off: Conserves battery life.
    • Robust and Durable Design: Built to withstand tough jobsite conditions.
    • Ergonomic Design: Comfortable to hold and use for extended periods.


    ​Key Technical Specifications:

    1. Current Measurement

      • AC Current Range: 0 to 2000A.
      • High-accuracy current measurement for industrial and commercial applications.
      • Capable of capturing both low and high currents accurately.

    2. Voltage Measurement

      • Compatible with Hioki Voltage Measurement Modules for extended functionality (optional).

    3. True RMS Measurement

      • Delivers precise readings for non-linear waveforms and distorted signals, ensuring accuracy in complex electrical environments.

    4. Jaw Opening Size

      • 55mm: Suitable for large-diameter cables and busbars, ideal for industrial systems.

    5. Frequency Response

      • Wide frequency bandwidth from 10Hz to 1kHz, enabling detailed analysis of electrical systems.

    6. Durability and Ruggedness

      • Withstands harsh environmental conditions with a robust design.
      • Drop-resistant up to 1 meter, ensuring reliability in demanding field conditions.

    7. Safety Certifications

      • Rated CAT IV 600V and CAT III 1000V, providing safety during high-voltage testing.
      • Overvoltage protection enhances safe operation.

    8. Display Features

      • Large and clear LCD Display with backlighting for visibility in low-light environments.
      • Data Hold Function: Freezes the reading for easy observation.

    9. Connectivity and Integration

      • Wireless connectivity compatible with Hioki Wireless Adapters (optional) for data transfer and remote operation.
      • Supports real-time data logging and monitoring.

    10. Operating Conditions

      • Operating Temperature: -25°C to 65°C, ensuring reliable performance in extreme environments.
      • Humidity: Up to 80% RH.
