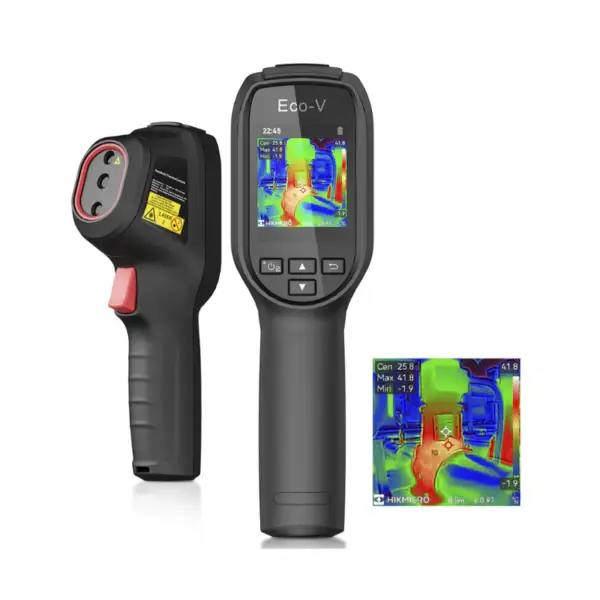

HIKMICRO Eco-V Handheld Thermal Camera

Key Features:

Thermal resolution: 96 × 96 (9,216 pixels)

112:1 Distance to spot ratio (D:S)

SuperIR: 240 × 240 (57,600 pixels)

NETD: < 50 mK (@ 25°C, F# = 1.0)

Measurement presets: center spot, hot spot, cold spot, off

25 Hz image frequency

Laser pointer

Built-in 4 GB flash memory: 30,000 pictures

Up to 8 hours continuous running

Thermal/Visual/Fusion

Key Technical Specifications:

Model: HIKMICRO Eco-V Handheld Thermal Camera

Thermal Imaging Module

• IR Detector Resolution: 96 × 96 (9,216 pixels)
• SuperIR Upscaled Resolution: 240 × 240 (57,600 pixels)
• Distance-to-Spot Ratio (D:S): 112 :1
• Thermal Sensitivity (NETD): < 50 mK (at 25 °C, F#=1.0)
• Detector Pitch: 12 µm
• Spectral Range: 7.5 – 14 µm
• Focal Length: 1.35 mm, F-number: F1.0

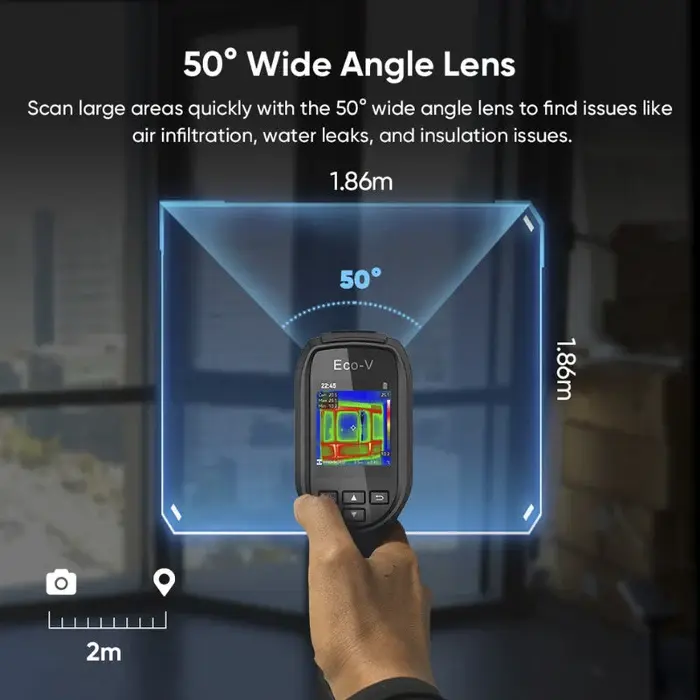

• Field of View (FOV): 50° × 50°
• Spatial Resolution (IFOV): 8.89 mrad
• Minimum Focus Distance: 0.1 m (0.33 ft)
• Focus Mode: Fixed (Focus-Free)
• Image Frequency (Frame Rate): 25 Hz

Display & Image Modes

• Display: 2.4″ LCD Screen, Resolution 240 × 320 pixels
• Image Modes: Thermal, Visual, Fusion
• Visual Camera (for Fusion mode): 640 × 480 pixels
• Colour Palettes: White Hot, Black Hot, Rainbow, Ironbow, Red Hot, Fusion
• Colour Alarm: Above Alarm / Below Alarm settings

Temperature Measurement & Analysis

• Object Temperature Range: –20 °C to +150 °C (–4 °F to 302 °F) and +100 °C to +550 °C (212 °F to 1022 °F)
• Accuracy: ±2 °C / ±2% (at ambient 25 °C and object temperature above 0 °C)
• Measurement Tools: Center Spot, Hot Spot, Cold Spot
• Additional Tools: Auto/Manual Level & Span modes for image optimisation

Storage, Connectivity & Power

• Built-in Memory: 4 GB (eMMC) internal storage (~30,000 images)
• Interface: USB Type-C
• Battery: Rechargeable Li-ion battery, up to ~8 hours continuous runtime
• Charging Time: Approx. 3 hours (Adapter: 5 V / 2 A)

Durability & Physical

• Protection Rating: IP54 (dust & water resistant)
• Drop Resistance: 2 m (6.56 ft) drop tested
• Operating Temperature: –10 °C to +50 °C (14 °F to 122 °F)
• Storage Temperature: –40 °C to +70 °C (–40 °F to 158 °F)
• Relative Humidity: < 95% non-condensing
