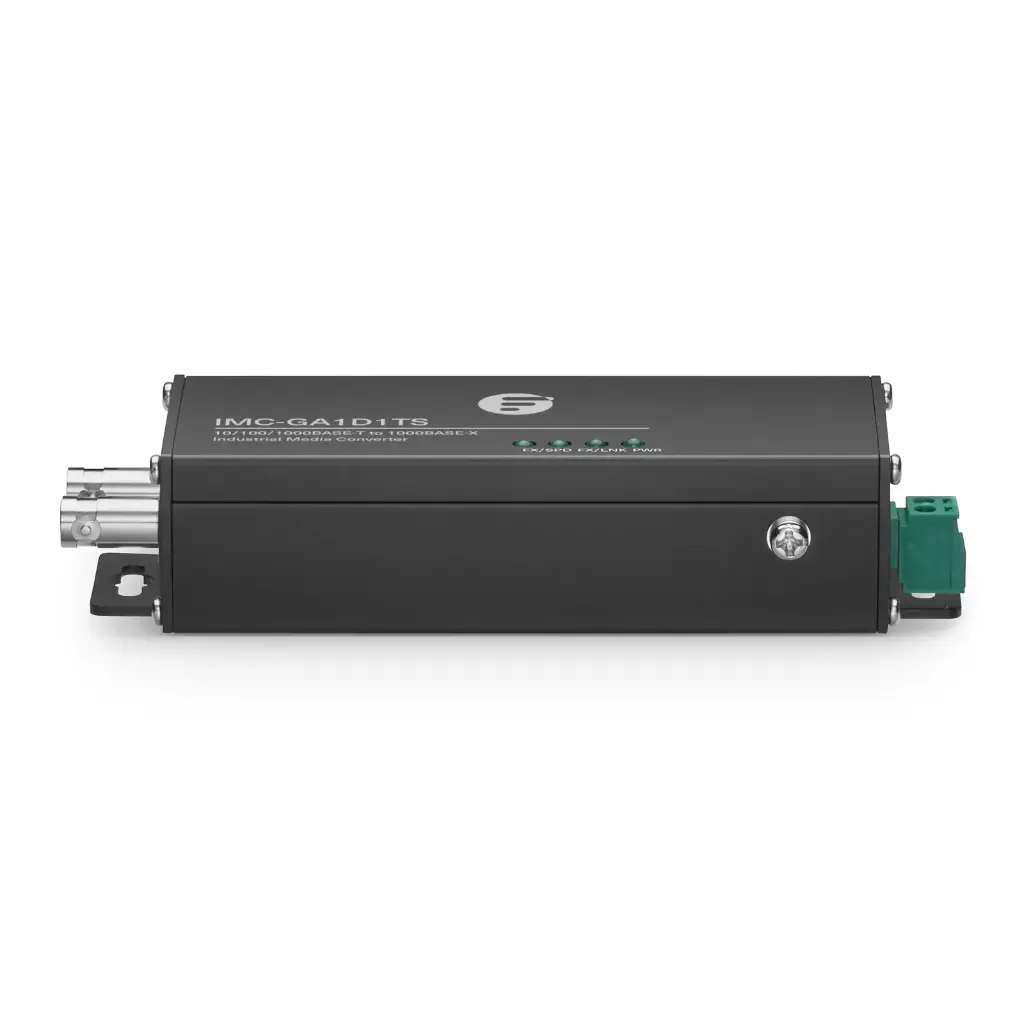

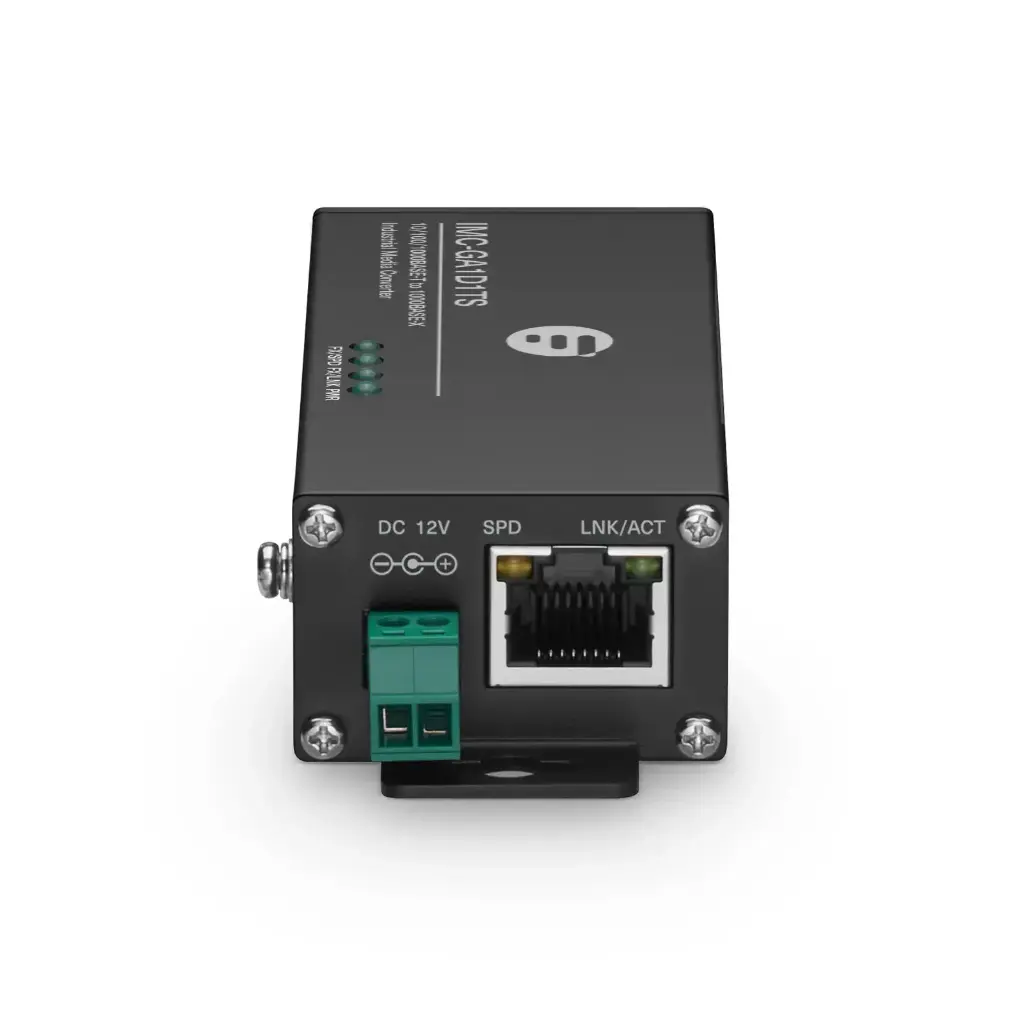

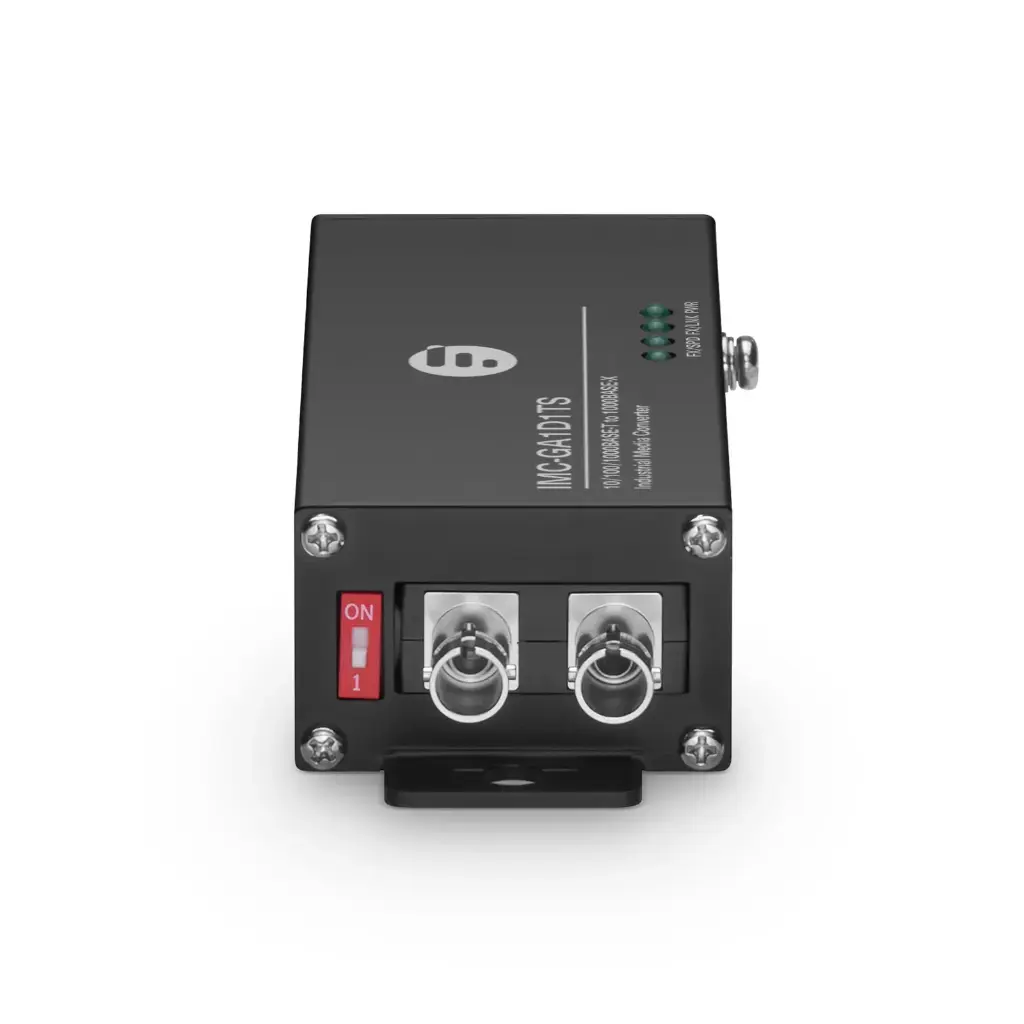

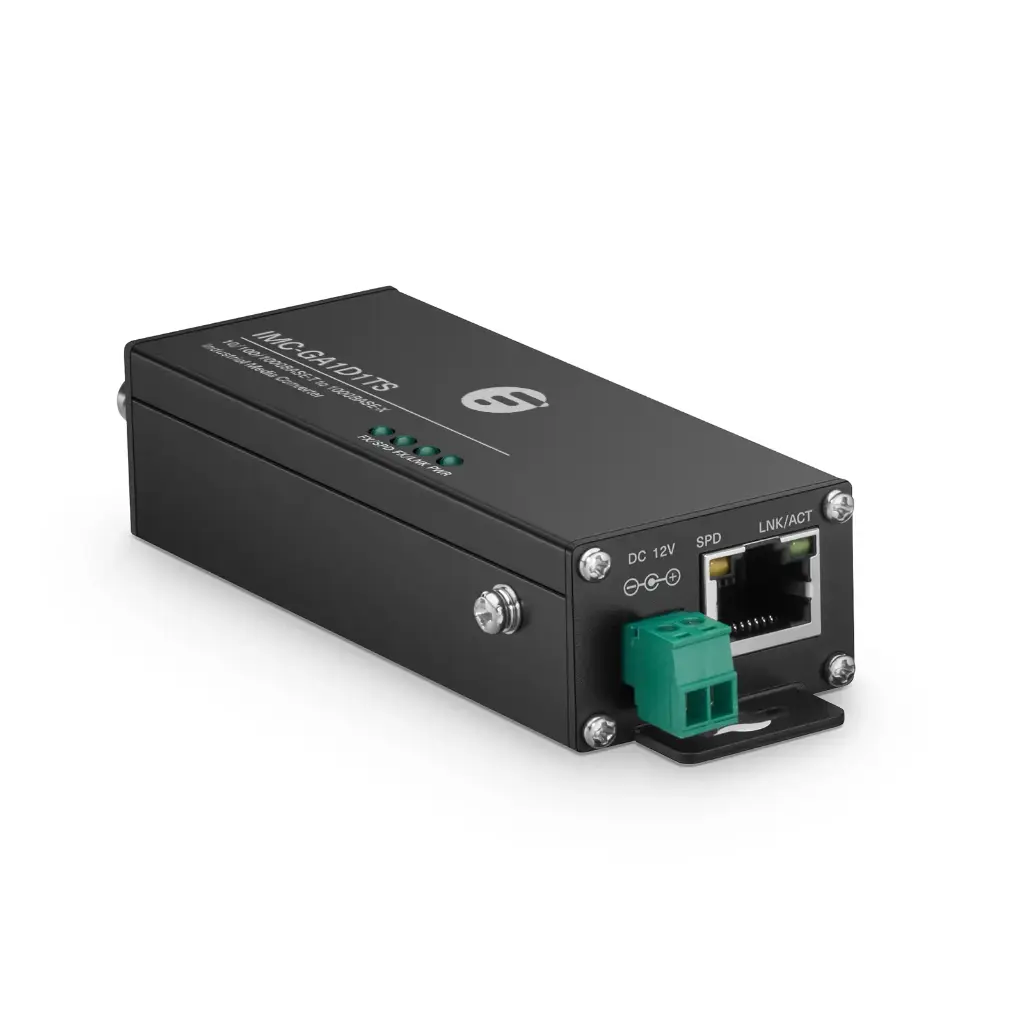

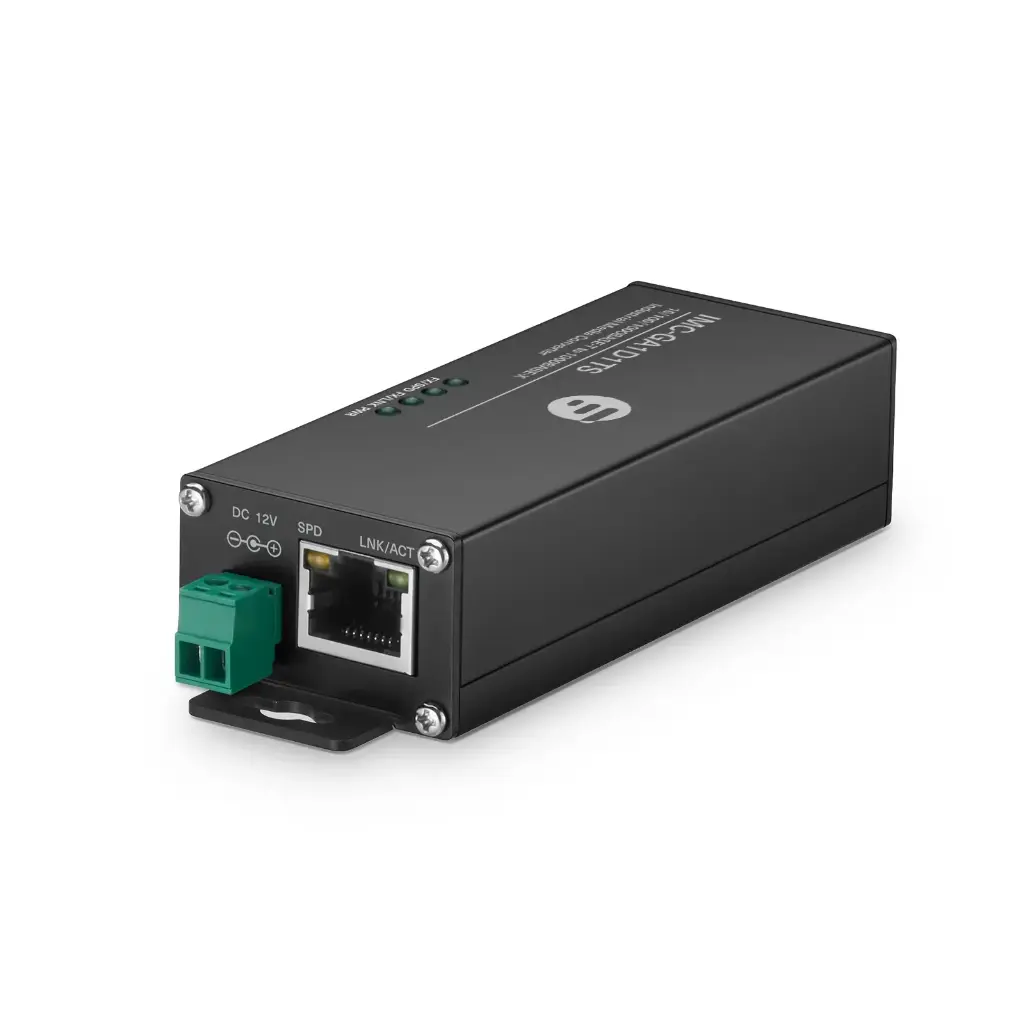

FS Mini Industrial Unmanaged 1x 10/100/1000Base-T RJ45 to 1x 1000Base-X Single Mode ST 1310nm 20km Gigabit Ethernet Media Converter, American Plug Standard






DOT EARTH · BUSINESS SUPPLY

FS Mini Industrial Unmanaged 1x 10/100/1000Base-T RJ45 to 1x 1000Base-X Single Mode ST 1310nm 20km Gigabit Ethernet Media Converter, American Plug Standard

P/N:IMC-GA1D1TS SKU:357193

780.00 AED 780.0 AED 780.00 AED 830.00 AED

Brand
Installation
- Desktop or Wall-Mount
Copper Port
- 1x 10/100/1000Base-T Ethernet RJ45
Fiber Port
- 1x 1000Base-X ST

This combination does not exist.

Add to cart Buy now

Brand: FS

Installation: Desktop or Wall-Mount

Copper Port: 1x 10/100/1000Base-T Ethernet RJ45

Fiber Port: 1x 1000Base-X ST

KEY FEATURES:

Industrial Gigabit Ethernet Media Converter
1 × 10/100/1000Base-T RJ45 Copper Port
1 × 1000Base-X ST Fiber Port
Single-Mode Fiber Support – 9/125μm
Gigabit Ethernet – 1000Base-T / 1000Base-X
ST Fiber Connector
Long Operating Temperature: -30°C to 75°C
Industrial IP40 Metal Enclosure
Wide DC Power Input: 9–56V
Low Power Consumption: <3W
Link Fault Pass-through (LFP)
10K Jumbo Frame Support
MTBF >100,000 Hours
Desktop or Wall-Mount Installation

KEY SPECIFICATIONS:

Specification	Details
Copper Port	1 × 10/100/1000Base-T Ethernet RJ45
Fiber Port	1 × 1000Base-X ST
Cable Type (Copper)	Cat5 / Cat5e / Cat6
Cable Type (Fiber)	Single-mode 9/125μm
Jumbo Frame	10K
MTBF	>100,000 Hrs
Input Power	DC 9–56V, 0.5/0.25A
Enclosure Material	IP40 Rated Metal
Max. Power Consumption	<3W
Dimensions (H × W × D)	1.02" × 1.54" × 4.65" (26 × 39 × 118 mm)
DIP Switch	LFP
Weight	120g

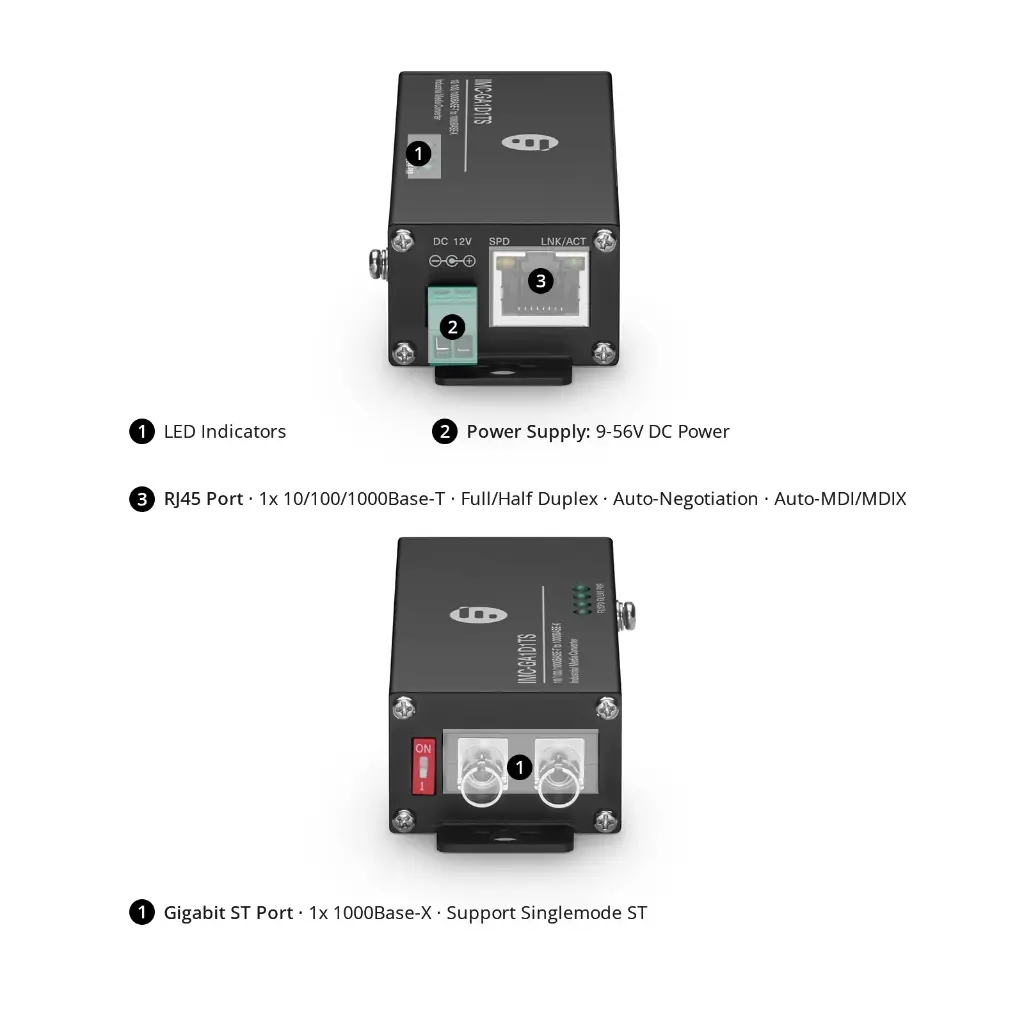

LED Indicators	FX/SPD, FX/LNK, PWR, LNK/ACT, SPD
Installation	Desktop or Wall-Mount
Operating Humidity	5% to 90% (Non-condensing)
Standards and Protocols	IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, 1000Base-TX/FX
Operating Temperature	-30°C to 75°C (-22°F to 167°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

Datasheet
