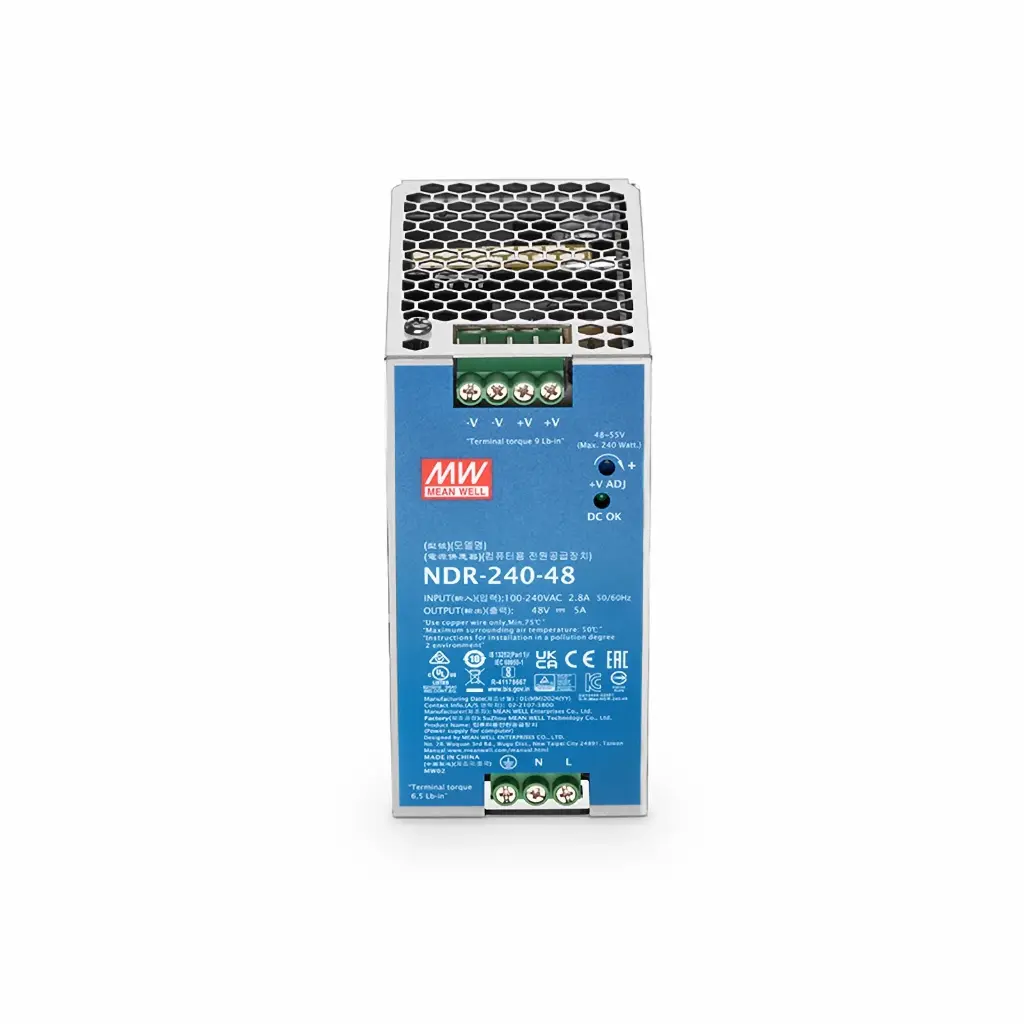

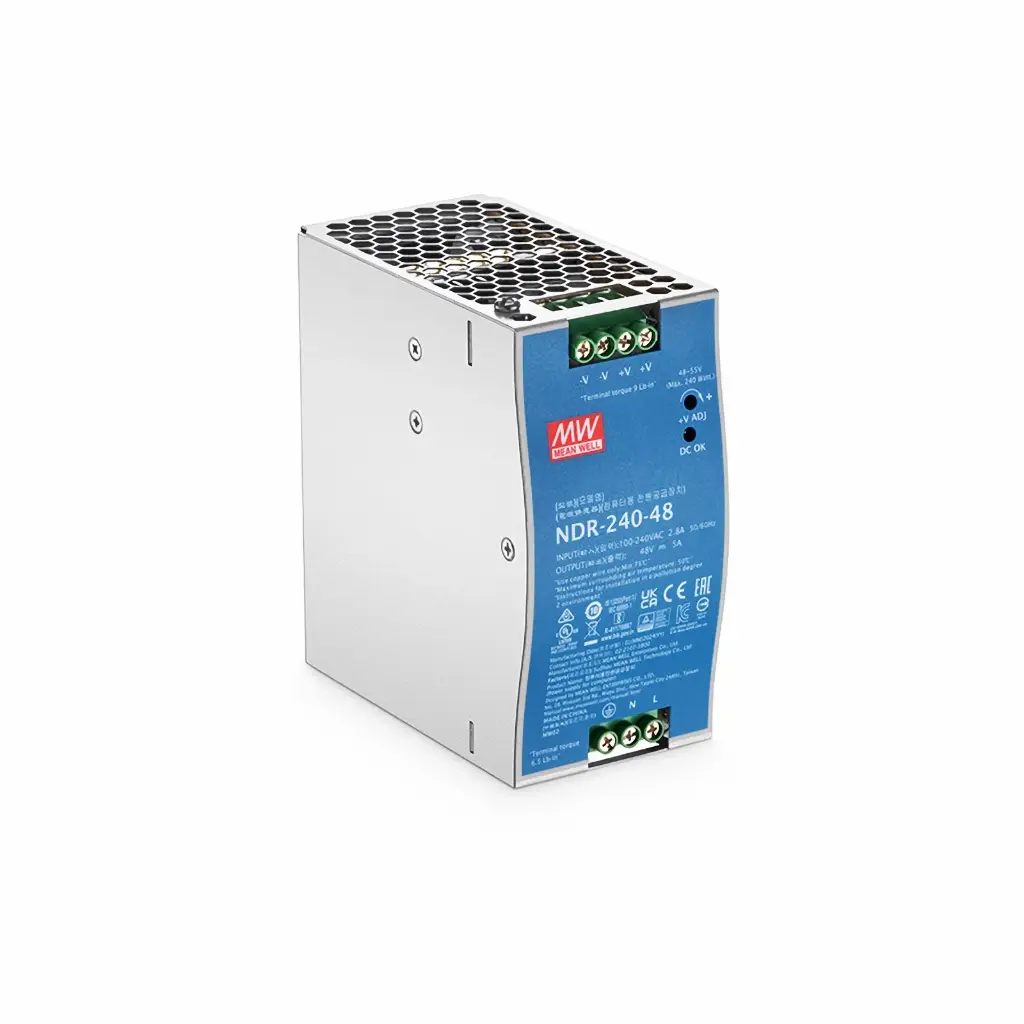

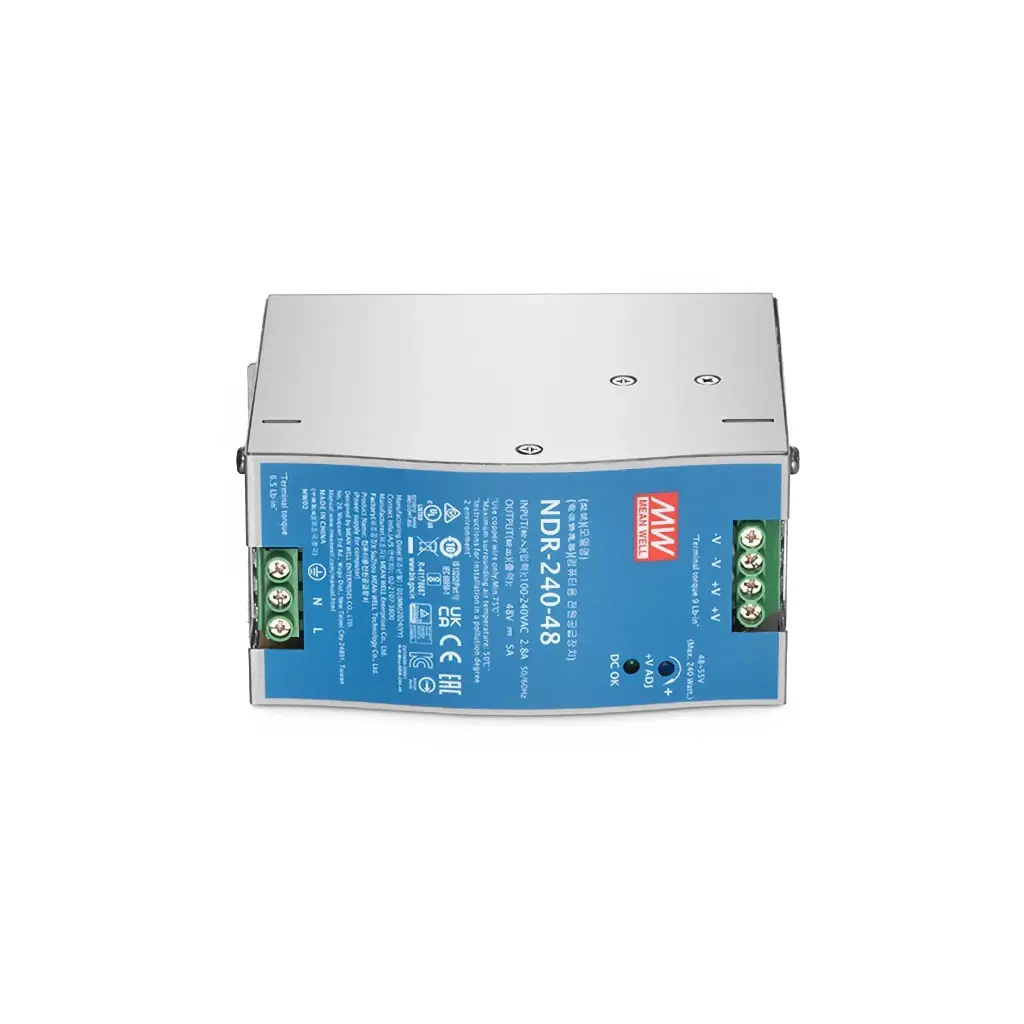

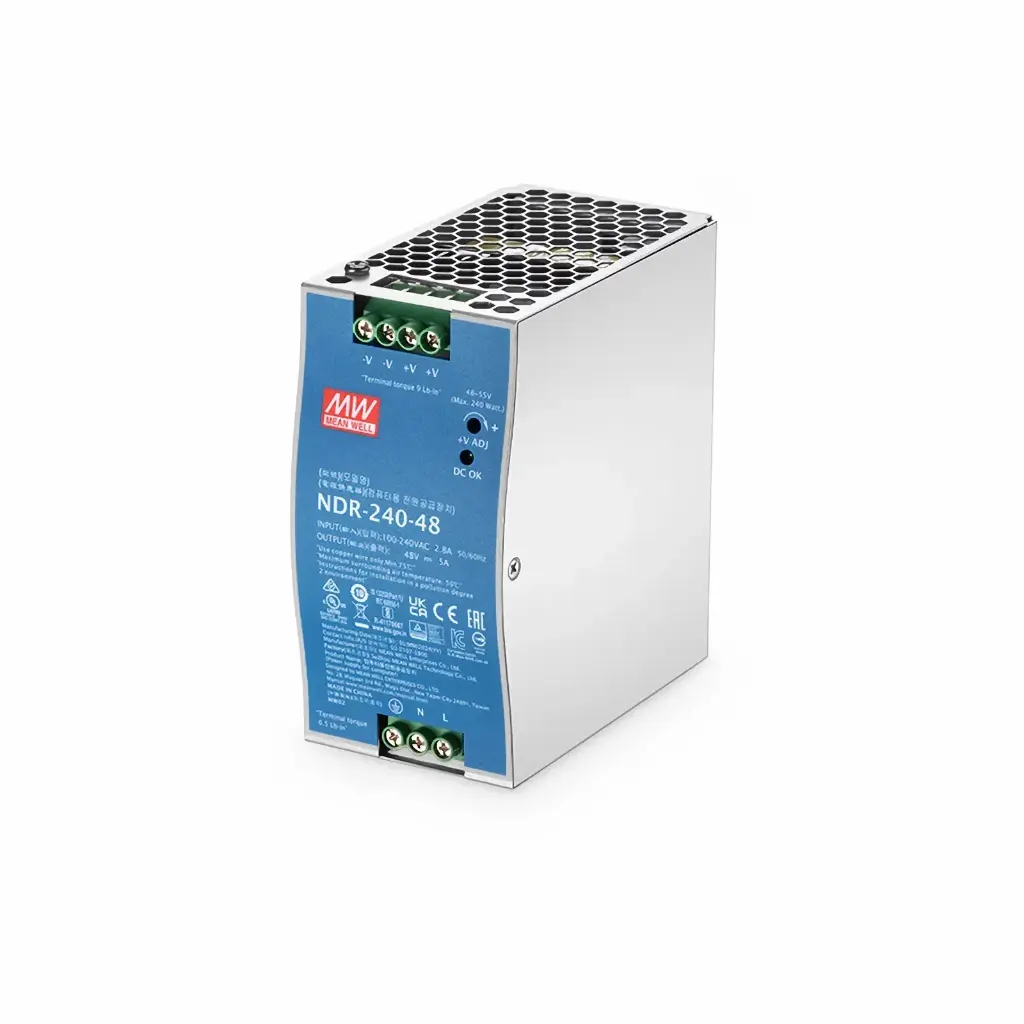

FS 240W 48VDC Slim DIN Rail Economical Industrial Power FS Supply with PFC Function

https://www.dotearth.ae/web/image/product.template/2523/image_1920?unique=e720220
(0 review)

P/N:NDR-240-48    SKU:248357

780.00 AED 780.0 AED 780.00 AED 860.00 AED

Not Available For Sale

  • Brand
  • Installation
  • Power Factor

This combination does not exist.

Contact Us
Brand: FS
Installation: DIN rail TS-35/7.5 or 15
Power Factor: PF>0.98/115VAC PF>0.95/230VAC at full load

Share

Key Features:

    • 240W 48V DC DIN Rail Power Supply – Delivers reliable 48V DC power with a 240W output capacity for industrial and automation equipment.
    • Wide Range AC/DC Input – Supports 90–264VAC and 127–370VDC input, providing flexible compatibility with different power systems.
    • High-Efficiency Power Conversion – Provides up to 90% efficiency for reduced energy loss and heat generation.
    • High Power Factor – Achieves PF >0.98 at 115VAC and PF >0.95 at 230VAC at full load for efficient power utilization.

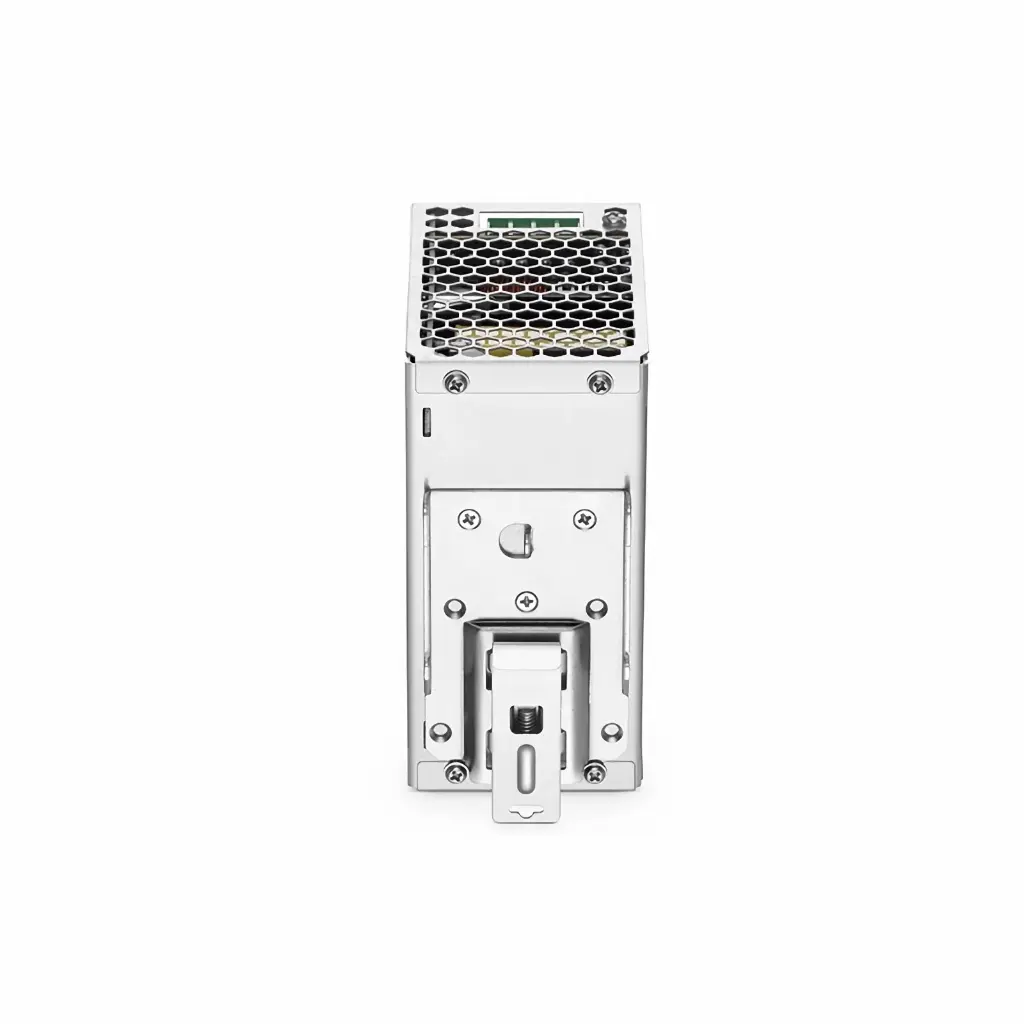

    • DIN Rail Mount Power Supply – Compatible with TS-35/7.5 and TS-35/15 DIN rails for convenient installation in electrical cabinets and control panels.
    • Wide Operating Temperature Range – Designed for reliable operation from -20°C to 70°C (-4°F to 158°F) in demanding industrial environments.
    • Compact 240W Power Supply Design – Space-saving form factor helps optimize cabinet and control-panel space.
    • 48V DC Industrial Power Solution – Suitable for industrial automation, control systems, networking equipment, and other 48V DC applications.

Specifications

SpecificationDetails
Input Voltage Range90 to 264 VAC
127 to 370 VDC
Input Current2.5 A / 115 VAC
1.3 A / 230 VAC
Output DC Voltage48 V
Output Power240 W
Power FactorPF > 0.98 / 115 VAC
PF > 0.95 / 230 VAC at full load
Efficiency90%
Operating Humidity20% to 90%
Operating Temperature-20 to 70°C (-4 to 158°F)
InstallationDIN rail TS-35/7.5 or TS-35/15
Dimensions (H × W × D)4.93 × 2.48 × 4.47 in (125.2 × 63 × 113.5 mm)


Datasheet
