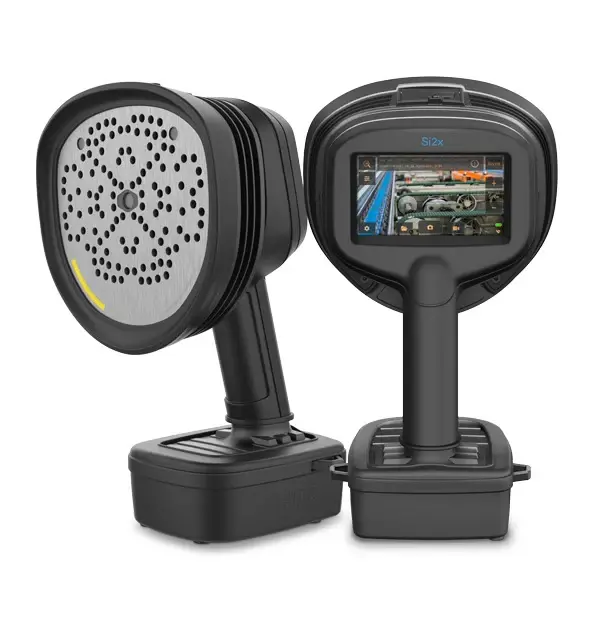

FLIR Si2x-Pro Hazardous Location Acoustic Imaging Camera

Key Features:

Hazardous Area Certification (ATEX & IECEx) for Gas & Dust Zones
Certified for Zone 2 explosive gas atmospheres and Zone 22 dust environments. Designed for safe operation in hazardous locations.

Advanced Leak, Mechanical Fault & Partial Discharge Detection
All-in-one device: detects, locates, and measures compressed air/gas leaks, bearing or mechanical faults, and partial discharges.

High Sensitivity Acoustic Measurement System
124 low-noise MEMS microphones, with real-time sound visualization over bandwidth of 2-130 kHz, allowing detection of subtle ultrasonic signals in noisy industrial environments.

Long Detection Range & Fine Leak Rate Sensitivity
Operates from ~0.3 m (1 ft) up to 200 m (656 ft); Minimum detectable leak rate: 0.0032 L/min at 2.5 m, 0.0044 L/min at 6 m.

High-Resolution Imaging & Visual Context
12 MP colour camera, 75° diagonal field of view, 8× digital zoom, with built-in LED lights for low-light conditions; overlay of acoustic sound map on visual image to pinpoint issues.

Automatic AI-Based Diagnostics & Severity Assessment
On-camera and in-software partial discharge type classification and severity scoring, plus mechanical condition assessment via metrics like sound pressure level, crest factor etc., enabling pre-emptive maintenance.

Fleet Management & Enterprise Integration
Supports Over-The-Air (OTA) firmware/software updates, cloud data transfers (WiFi dual band 2.4 & 5 GHz), compatibility with FLIR Thermal Studio and Acoustic Viewer, facilitating reporting, data centralization and fleet health tracking.

Robust Design & Usability in Harsh Environments
IP54 ingress protection; operates from −10 °C to 50 °C; compact design with durable housing; large resistive touch display (5-inch, 1280×720) & intuitive UI to reduce training requirement.

Measurement & Cost-Saving Analytics
Quantifies leak rates and estimates financial losses (gas/compressed air leaks), allowing priority setting of repair work and supporting energy efficiency / ESG objectives.

Wide Gas Compatibility
Detects leaks of multiple industrial gases: compressed air, nitrogen, ammonia, hydrogen, carbon dioxide, methane, helium, argon, etc.

Key Technical Specifications:

FLIR Si2x-Pro

Acoustic measurement: 124 low-noise MEMS microphones, real-time sound visualization

Detection threshold: 20 kHz: -8 dB SPL

35 kHz: 4 dB SPL

50 kHz: 13 dB SPL

80 kHz: 42 dB SPL

100 kHz: 58 dB SPL

Bandwidth: 2-130 kHz

Directional resolution: From 1° up to 0.125°

Operating distance: From 0.3 m (1.0 ft) up to 200 m (656 ft)

PD Severity assessment: Automatic AI-based severity assessment including recommended actions on-board camera

Leak localization and detection: Automatic leak recognition including estimated leak size and annual cost

Leak rate detection threshold: 0.0032 l/min from 2.5 m, 0.0044 l/min from 6 m

Supported gases: Compressed air, hydrogen, carbon dioxide, methane, natural gas, helium, argon, ammonia, nitrogen

Other acoustic analysis modes Mechanical fault detection, condition assessment, and fault measurement

Analysis and Reporting

On-line: FLIR Acoustic Camera Viewer (cloud service)* acousticviewer.flir.com

Off-line: FLIR Thermal Studio (desktop software)*

Imaging & Optical

Digital camera: 12 MP color

Camera field of view: 75° diagonal

Video frame rate: Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps

Zoom: 8x Digital zoom

Video image resolution: 1280 × 720

User Interface

Display: Size: 5 in. 1280 × 720

Resistive touch screen, TFT LCD, MIPI DSI

Integrated flashlight: LEDs, two modes: ON / OFF

Communication and Data Storage

Data transfer: Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN USB memory stick

Camera software update: Automatic Over The Air (OTA) wireless update or via USB connection

Still image format: .nlz and .jpg

Video recording and format: Up to 5 minutes (.nlz format)

Storage, internal: 128 GB (SD card)

Storage, external: USB 8 GB, Cloud storage capacity is unlimited

Image annotations: Image tags, comments, QR Code data

Battery: Li-Ion rechargeable battery pack

Usage: Up to 2.5 h

Charge time: approx. 2 h

Battery charger: Input: 19-26 V DC, 2.8 A

Max output: 17.4 V DC, 4.8 A

Environmental Data

Operating temperature range: -10°C to 50°C (14°F to 122°F)

Ingress protection: IP54
