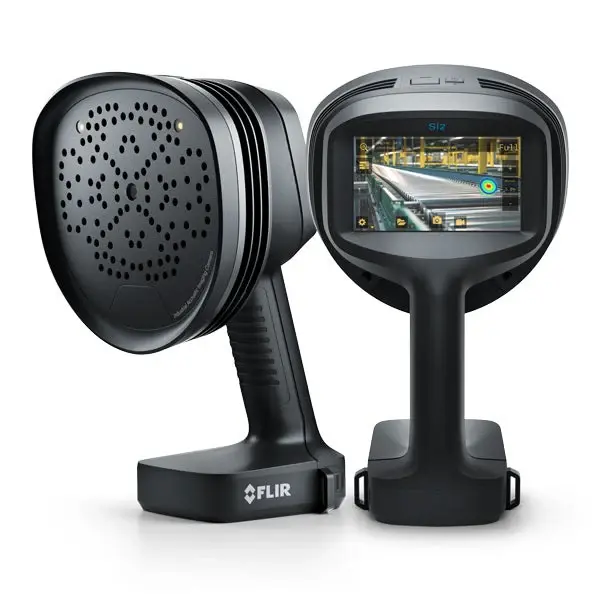

FLIR Si2-Pro Industrial Acoustic Imaging Camera

https://www.dotearth.ae/web/image/product.template/2255/image_1920?unique=ce05a0a
(0 review)

90,500.00 AED 90500.0 AED 90,500.00 AED 91,000.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Flir
Warranty: 1 Year

Share

Key Features:

High-Precision Leak & Partial Discharge Detection
Detect, locate, and measure compressed air and gas leaks plus partial discharges up to 200 m (656 ft) away. Identify issues early to reduce energy waste and avoid costly downtime.

Mechanical Fault & Bearing Health Monitoring
Advanced mechanical fault detection mode lets you spot bearing issues and other moving-part defects well before failure, enabling proactive maintenance.

Extremely Low Leak Rate Sensitivity
Capable of detecting leaks as low as 0.0032 L/min at 2.5 m and 0.0044 L/min at 6 m, helping you identify small, hard-to-see leaks and quantify cost impact.

Large-Distance Acoustic Detection
Performance maintained over long range: leak/PD detection up to 200 m, enabling inspections from safer distances and across large facilities.

124 Low-Noise MEMS Microphones with Real-Time Sound Visualization
High sensitivity and detailed acoustic mapping using an array of 124 MEMS mics; real-time overlays make diagnostics intuitive.

Wide Bandwidth Audio Capture (2-130 kHz)
Enables detection of ultrasonic signals across a broad spectrum, useful in differentiating mechanical faults, leaks and partial discharge patterns.

AI-Based Severity Assessment & Fault Classification
Built-in AI tools evaluate severity of partial discharge events, classify types, and recommend corrective actions directly on-camera and in software.

High-Resolution Imaging & Display
12MP digital camera, 8× digital zoom and a 5-inch, 1280×720 color screen with wide 75° diagonal field of view; built-in LED lamps for low light conditions.

Fleet & Enterprise Management Features
Wireless data transfer via dual-band WiFi (2.4 & 5 GHz), cloud integration, Over-The-Air (OTA) firmware/software updates, plus tools for managing units across large operations.

Rugged, Industrial-Grade Build & Environmental Tolerance
Rated IP54 for protection against dust and water, operational from about −10 °C to +50 °C; built for industrial environments.

Cost-Analysis & ROI Estimation
On-camera tools to quantify leak rates, estimate associated costs, prioritize repair actions, helping justify maintenance spend.

Key Technical Specifications:

Acoustic Measurement

Detection threshold: 20 kHz: -7 dB SPL

35 kHz: 4 dB SPL

50 kHz: 10 dB SPL

80 kHz: 36 dB SPL

100 kHz: 51 dB SPL

Bandwidth: 2-130 kHz

Directional resolution: From 1° up to 0.125°

Operating distance: From 0.3 m (1.0 ft) up to 200 m (656 ft)

Severity assessment: Automatic AI-based severity assessment including recommended actions onboard camera

Leak localization and detection: Automatic leak recognition including estimated leak size and annual cost

Leak rate detection threshold: 0.0032 l/min from 2.5 m, 0.0044 l/min from 6 m

Supported gases: Compressed air, hydrogen, CO2, methane, natural gas, helium, argon, ammonia

Other acoustic analysis modes: Mechanical fault detection

Imaging & Optical

Digital camera: 12 MP color

Camera field of view: 75° diagonal

Video frame rate: Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps

Zoom: 8x Digital zoom

Video image resolution: 1280 × 720

User Interface

Display: Size: 5 in. 1280 × 720

Resistive touch screen, TFT LCD, MIPI DSI

Integrated flashlight: LEDs, three modes off, normal and bright

Communication and Data Storage

Data transfer: Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN USB memory stick

Camera software update: Automatic Over The Air (OTA) wireless update or via USB connection

Still image format: .nlz and .jpg

Video recording & format: Up to 5 minutes (.nlz format)

Storage, internal: 128 GB (SD card)

Storage, external: USB 8 GB, Cloud storage capacity is unlimited

Image annotations: Image tags and comments

Power Supply

Camera power input: Nominal input voltage: 12 V DC

Max input: 17 V DC , 3.3 A (limited)

Battery: Li-Ion rechargeable battery pack (RRC 2054):14.4 V DC, 3.45 Ah, 49.68 Wh

Usage: Up to 2.5 h (depends on ambient conditions & usage, needs to be retested and confirmed with final product)

Charge time: approx. 2 h

Max output: 16.8 V DC, 5 A

Battery charger: Input: 19-26 V DC, 2.8 A

Max output: 17.4 V DC, 4.8 A

Environmental Data

Operating temperature range: -10°C to 50°C (14°F to 122°F)

Storage temperature range: -20°C to 50°C max -20°C to 25°C recommended (determined by the battery)

Relative humidity: 0-90% recommended

EMC: CFR47 FCC Part 15 Subpart B

Radio: CFR47 FCC Part 15 Subpart C/E, ETSI EN 301 489-1/-17/-19, ETSI EN 300 328, ETSI EN 301 893

Protection class: IP54

Safety: IEC 62368-1
