FLIR Si1-LD Industrial Acoustic Imaging Camera (Leak Detection)

https://www.dotearth.ae/web/image/product.template/2251/image_1920?unique=c09d772
(0 review)

33,000.00 AED 33000.0 AED 33,000.00 AED 34,500.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Flir
Warranty: 1 Year

Share

Key Features:

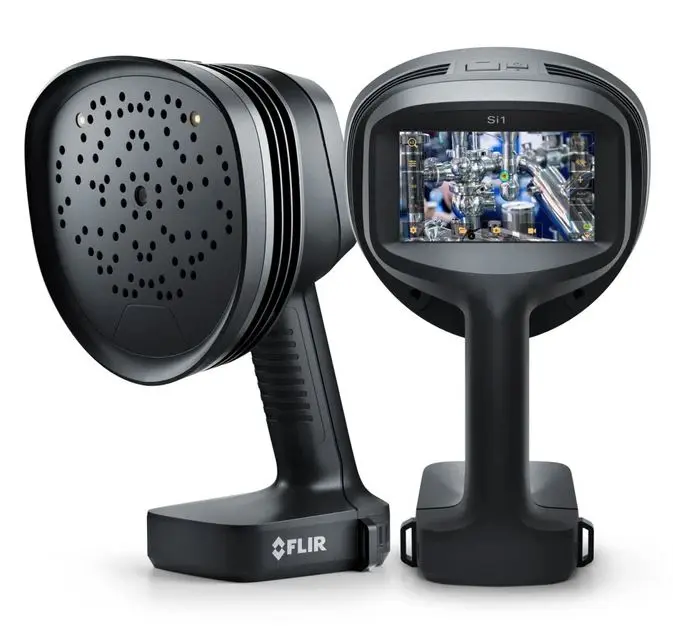

  • High-Sensitivity Acoustic Array with 96 MEMS Microphones — Ensures precise ultrasonic sound detection even in noisy industrial environments.
  • Wide Frequency Bandwidth (2 kHz to 100 kHz) — Enables detection of both low and high ultrasonic frequencies for early, accurate leak identification.

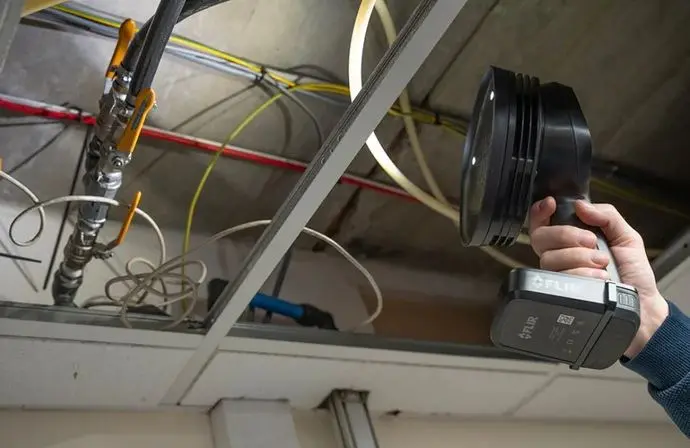

  • Long Detection Distance (Up to 130 m / 427 ft) — Allows safe, remote locating of compressed air or vacuum leaks without needing to get too close.
  • Minimum Detectable Leak Rate (MDLR): ~0.01 L/min @ 2.5 m — Detects very small leaks, enabling early intervention and energy savings.
  • Real-Time Leak Quantification & Cost Estimation — On-device analytics that calculate leak rate and associated cost, helping prioritise repairs.
  • Band-Pass Filter & Noise Suppression Technology — Manual frequency tuning via band-pass filter and robust filtering algorithms allow accurate detection even in loud settings.
  • 12 MP Color Digital Camera with Overlay Imaging — Visual clarity with a high-resolution digital image; acoustic image overlaid on real scene to easily pinpoint leak location.
  • 8× Digital Zoom & Broad Field of View (≈ 65° Diagonal) — Enables zooming in for detail without losing situational context.

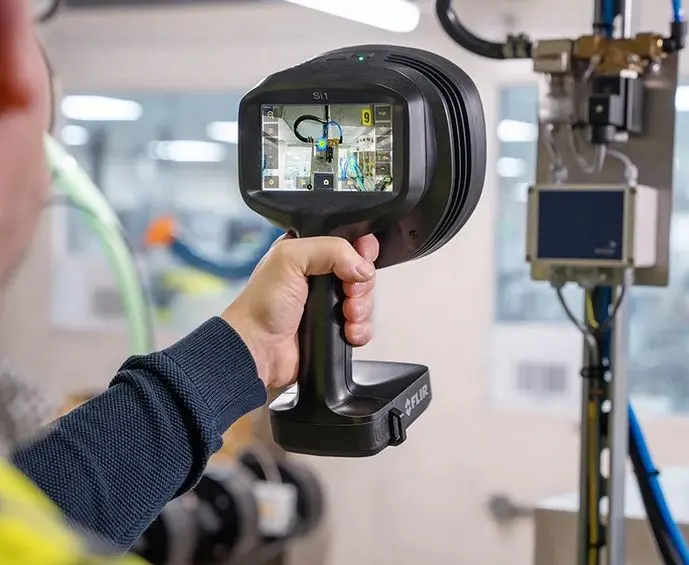

  • Lightweight, Single-Handed Ergonomic Design — Facilitates fast, large-facility inspections by reducing operator fatigue.
  • Touch-Screen Interface with High-Resolution Display — Clear, intuitive user interface for immediate feedback on images, metrics and settings.
  • Robust Data Connectivity & Reporting Tools — Options include Wi-Fi (2.4 / 5 GHz), USB/data cable transfers; compatible with FLIR Acoustic Viewer (cloud) and FLIR Thermal Studio (offline) for reporting and analysis.
  • Durable Build & Field-Ready Protection (IP54 Rated) — Protection against dust & water splashes for reliable performance in industrial sites.

Key Technical Specifications:

Measurement & Analysis

Acoustic measurement: 96 low-noise MEMS microphones, real-time sound visualization

Detection threshold: 20 kHz: −5 dB

35 kHz: 9 dB

50 kHz: 15 dB

80 kHz: 41 dB

100 kHz: 56 dB

Bandwidth: 2 kHz to 100 kHz

Directional resolution: From 1° up to 0.125°

Operating distance: From 0.3 m (1.0 ft) up to 130 m (427 ft)

Auto distance: Automatic distance up to 5 m (16.45 ft)

Leak localization and detection: Automatic leak recognition including estimated leak size and annual cost

Leak rate detection threshold: 0.5 m: 0.004 l/min

2.5 m: 0.010 l/min

6.0 m: 0.017 l/min

Autofilter, automatic frequency selection: No

Band-pass filter: Yes

Supported gases: Compressed air

Mechanical mode: No

Imaging & Optical

Digital camera: 12 MP color

Camera field of view: 65° diagonal

Video frame rate: Camera: 60 fps / Acoustic image: 30 fps / Screen: 70 fps

Zoom: 8x Digital zoom

Video image resolution: 1280 × 720

User Interface

Display: Size: 5 in. 1280 × 720,

Resistive touch screen, TFT LCD, MIPI DSI

Integrated flashlight: LEDs, two modes: ON / OFF

Communication & Data Storage

Data transfer: - Wi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN

- USB memory stick

Camera software update: - Automatic over Wi-Fi

- USB via computer

Still image format: .nlz and .jpg

Video recording & format: Up to 5 minutes (.nlz format)

Storage, internal: 32 GB (SD card)

Storage, external: 8 GB (USB), Cloud storage capacity is unlimited

Image annotations: Image tags and comments

Power

Camera power input: Nominal input voltage: 12 V DC

Max input: 17 V DC, 3.3 A (limited)

Battery: Li-ion rechargeable battery pack (RRC 2054):14.4 V DC,

3.45 Ah, 49.68 Wh

Usage: Up to 2.5 h Charge time: approx. 2 h

Max output: 16.8 V DC, 5 A

Battery charger: Input: 19 V to 26 V DC, 2.8 A

Max output: 17.4 V DC, 4.8 A

Environmental Data

Operating temperature range: −10°C to 50°C (14°F to 122°F)

Storage temperature range: −20°C to 50°C (−4°F to 122°F) max

−20°C to 25°C (−4°F to 77°F) recommended

Relative humidity: 0% to 90% recommended

EMC: CFR47 FCC Part 15 Subpart B,
