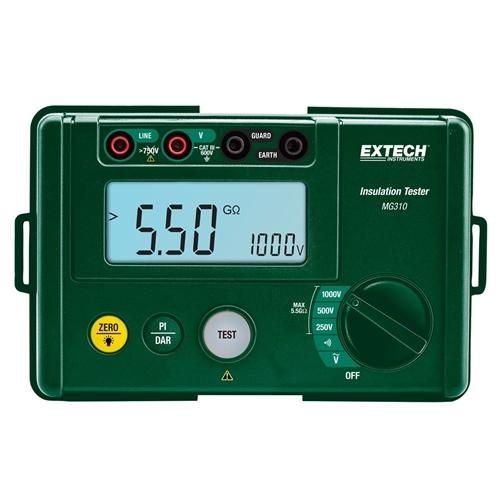

Multiple Test Voltages – Offers 250V, 500V, and 1000V test voltages for versatile insulation resistance testing Wide Insulation Resistance Range – Measures insulation resistance up to 5.5GΩ for comprehensive diagnostics Live Circuit Detection – Prevents testing if voltage exceeds 30V, enhancing user safety Large Backlit LCD Display – Ensures clear readings in low-light environments Automatic Discharge Function – Safely discharges residual voltage after testing Low Resistance Measurement – Measures continuity with 200mA test current Data Hold & Auto Power-Off – Retains measurements and saves battery life Durable & Portable Design – Compact, lightweight, and designed for rugged field use Safety Rated – CAT III 600V ensures safe operation in electrical environments
Technical Specifications:
Test Voltages: 250V, 500V, 1000V Insulation Resistance Range: Up to 5.5GΩ Accuracy: ±3% of reading Live Circuit Detection: Prevents testing if voltage exceeds 30V Continuity Test: 200mA test current Automatic Discharge: Ensures user safety after testing Display: Large backlit LCD screen for easy reading Data Hold: Freezes displayed measurements for easy reference Auto Power-Off: Increases battery life by shutting down when inactive Power Supply: 6 x AA batteries Safety Rating:CAT III 600V for electrical safety compliance Dimensions:
6 x 4 x 2.8" (150 x 100 x 71mm)
Weight:
1.5lbs (0.7kg)
