    Brand: Extech Instruments
    Warranty: 1 Year


    Name: Extech MA640-K: Phase Rotation/Clamp Meter Test Kit

    ​Key Features:

    • Phase Rotation Tester:
      • Accurately determines phase rotation (phase sequence) in three-phase systems.
    • True RMS Clamp Meter:
      • Measures AC/DC current, voltage, resistance, and continuity for comprehensive electrical troubleshooting.
    • Non-Contact Voltage Detection (NCV):
      • Quickly and safely identifies the presence of AC voltage without physical contact.
    • Backlit Display:
      • Easy to read in dimly lit environments.
    • Data Hold Function:
      • Freezes readings for easy recording and analysis.
    • Auto Ranging:
      • Automatically selects the appropriate measurement range for optimal accuracy.
    • Compact and Durable Design:
      • Built to withstand tough jobsite conditions.
    • Ergonomic Design:
      • Comfortable to use for extended periods.

    Benefits:

    • Enhanced Safety: Phase rotation tester helps prevent equipment damage and ensures safe operation of three-phase systems.
    • Versatility: Includes a multi-function clamp meter for comprehensive electrical troubleshooting.
    • Improved Efficiency: Non-contact voltage detection and auto-ranging features save time and effort.
    • Reliability: Durable construction ensures long-lasting performance in demanding environments.


    ​Key Technical Specifications:

    Clamp Meter Capabilities

    • AC Current Measurement: 0.1A to 600A True RMS.
    • DC Current Measurement: 0.1A to 600A.
    • Suitable for residential, commercial, and industrial electrical systems.

    Voltage Measurement

    • AC Voltage: 0.1V to 600V True RMS.
    • DC Voltage: 0.1V to 600V.
    • High precision for troubleshooting electrical faults.

    Phase Rotation Testing

    • Quickly identifies phase sequence and detects live phases in three-phase systems.

    Resistance and Continuity

    • Resistance Range: Up to 60MΩ.
    • Continuity Test: Audible alert for circuit continuity below 30Ω.

    Frequency Measurement

    • Range: 0.001Hz to 10.00kHz .
    • Enables monitoring of frequency stability in power systems.

    Capacitance Testing

    • Range: Up to 60mF.
    • Ideal for testing capacitors in HVAC and electrical applications.

    True RMS Technology

    • Ensures accurate measurements for both linear and non-linear loads.

    Non-Contact Voltage (NCV) Detection

    • Built-in NCV function for fast and safe detection of live wires without contact.

    Data Hold Function

    • Freeze readings on the display for convenient data recording.

    Backlit LCD Display

    • Large and easy-to-read screen with a backlight for low-light environments.

    Jaw Opening Capacity

    • Maximum Diameter: 35mm (1.38 inches).
    • Allows testing of medium-sized cables and conductors.

    Safety Ratings

    • CAT IV 600V, CAT III 1000V: Safe for use in high-energy environments.

    Durable and Compact Design

    • Lightweight and rugged construction for portability and durability in tough conditions.

    Included Accessories

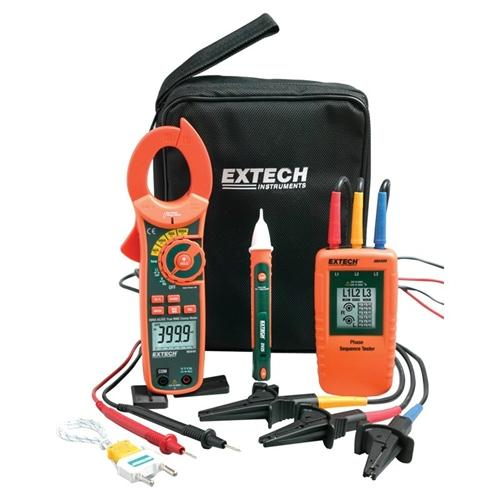

    • Kit includes the MA640 clamp meter, phase rotation tester, test leads, carrying case, and batteries for ready-to-use convenience.
