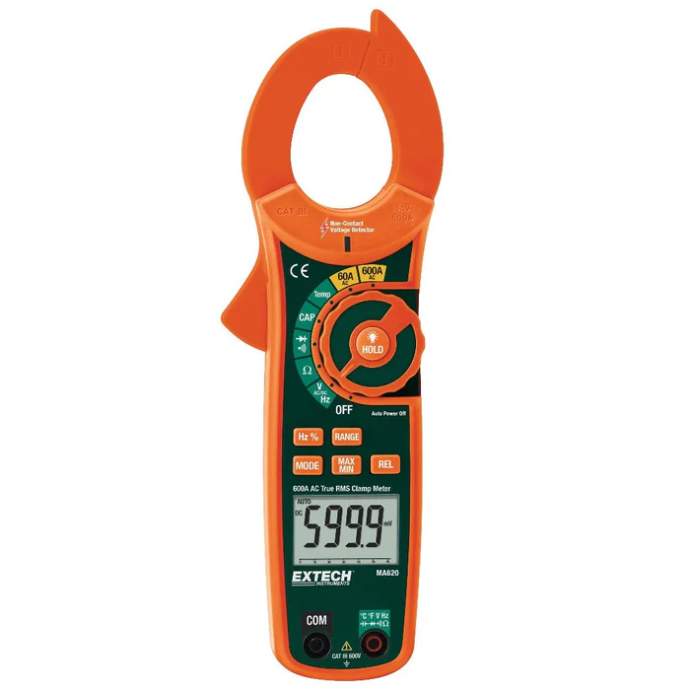

Extech MA620 600A True RMS AC Clamp Meter + NCV

https://www.dotearth.ae/web/image/product.template/2016/image_1920?unique=2d2cfc7
(0 review)

439.00 AED 439.0 AED 439.00 AED VAT Excluded 469.00 AED

439.00 AED VAT Excluded 469.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Extech Instruments
    Warranty: 1 Year


    Name: Extech MA620 600A True RMS AC Clamp Meter + NCV

    ​Key Features:

    • True RMS AC Current Measurement:
      • Accurately measures AC currents, including distorted waveforms, for precise readings.
    • High Current Capacity:
      • Handles up to 600A AC, making it suitable for high-current applications in industrial and commercial settings.
    • Non-Contact Voltage Detection (NCV):
      • Quickly and safely identifies the presence of AC voltage without physical contact.
    • Backlit Display:
      • Easy to read in dimly lit environments.
    • Data Hold Function:
      • Freezes readings for easy recording and analysis.
    • Auto Ranging:
      • Automatically selects the appropriate measurement range for optimal accuracy.
    • Compact and Durable Design:
      • Built to withstand tough jobsite conditions.
    • Ergonomic Design:
      • Comfortable to use for extended periods.


    ​Key Technical Specifications:

    Current Measurement

    • AC Current: 0.1A to 600A True RMS.
    • Ideal for measuring electrical loads in residential, commercial, and industrial applications.

    Voltage Measurement

    • AC Voltage: 0.1V to 600V True RMS.
    • DC Voltage: 0.1V to 600V.
    • Accurate readings for troubleshooting and diagnostics.

    Resistance Measurement

    • Range: Up to 60MΩ.
    • Useful for identifying circuit conditions and component testing.

    Continuity Testing

    • Audible alert for continuity checks below 50Ω.
    • Quick identification of open or closed circuits.

    Capacitance Testing

    • Range: Up to 60mF.
    • Designed for testing capacitors in HVAC systems and other electrical equipment.

    Frequency Measurement

    • Range: 0.001Hz to 10.00kHz .
    • Enables monitoring of power system frequency stability.

    Non-Contact Voltage (NCV) Detection

    • Built-in NCV function for safe and contactless detection of live wires.
    • Visual and audible alerts improve safety.

    True RMS Technology

    • Ensures accurate measurements for linear and non-linear loads.

    Data Hold Function

    • Freezes displayed readings for easy recording and analysis.

    Jaw Opening Capacity

    • Maximum Jaw Size: 40mm.
    • Allows testing of medium-sized cables and conductors.

    Auto-Ranging Function

    • Automatically selects the appropriate measurement range for efficiency and accuracy.

    Large Backlit LCD Display

    • 6000 count, backlit LCD display.

    Auto Power Off

    • Conserves battery life by shutting off the device during inactivity.

    Durable and Lightweight Design

    • Ergonomic build for comfortable use during prolonged operations.
