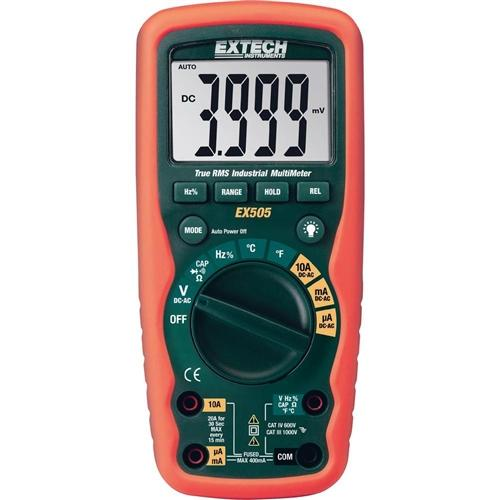

Extech EX505: 11 Function Heavy Duty True RMS Industrial MultiMeter

https://www.dotearth.ae/web/image/product.template/1921/image_1920?unique=166fea8
(0 review)

399.00 AED 399.0 AED 399.00 AED VAT Excluded 419.00 AED

399.00 AED VAT Excluded 419.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Extech Instruments
    Warranty: 1 Year


    Name: Extech EX505: 11 Function Heavy Duty True RMS Industrial MultiMeter

    ​Key Features:

    • True RMS Measurements: Ensures accurate readings of AC voltage and current, even for distorted waveforms commonly found in industrial settings.
    • Rugged and Durable Construction: Built to withstand drops, shocks, and harsh conditions, making it ideal for demanding industrial, construction, and field service applications.
    • Large, Backlit LCD Display: Ensures easy readability in various lighting conditions, improving user experience.
    • Data Hold Function: Freezes readings on the display for easy recording and analysis.
    • Auto Power Off: Conserves battery life by automatically shutting down the meter after a period of inactivity.
    • CAT IV 600V Safety Rating: Provides enhanced safety for users working in higher voltage environments.
    • Comprehensive Measurement Capabilities: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, temperature, diode test, and continuity.


    ​Technical Specifications

    • DC Voltage:
      • Resolution: 0.1mV
      • Range: 600.0mV to 1000V
      • Accuracy: ±0.5% ±2 digits
    • AC Voltage (True RMS):
      • Resolution: 0.1V
      • Range: 6.00V to 750V
      • Accuracy: ±1.2% ±5 digits
    • DC Current:
      • Resolution: 0.1µA
      • Range: 60.00µA to 10.00A
      • Accuracy: ±1.0% ±3 digits
    • AC Current (True RMS):
      • Resolution: 0.1mA
      • Range: 600.0µA to 10.00A
      • Accuracy: ±1.5% ±5 digits
    • Resistance:
      • Resolution: 0.1Ω
      • Range: 60.00Ω to 40.00MΩ
      • Accuracy: ±1.0% ±3 digits
    • Capacitance:
      • Resolution: 1nF
      • Range: 20.00nF to 20.00µF
      • Accuracy: ±3.5% ±5 digits
    • Frequency:
      • Resolution: 0.01Hz
      • Range: 99.99Hz to 99.99kHz
      • Accuracy: ±0.1%
    • Duty Cycle:
      • Resolution: 0.1%
      • Range: 0.1% to 99.9%
      • Accuracy: ±0.5% ±5 digits
    • Temperature:
      • Resolution: 0.1°C
      • Range: -20.0°C to +70.0°C
      • Accuracy: ±2.0°C
    • Diode Test:
      • Voltage: Approx. 2.0V
    • Continuity Test:
      • Audible and visual indication
    • Safety:
      • CAT IV 600V
      • IEC 61010-1
