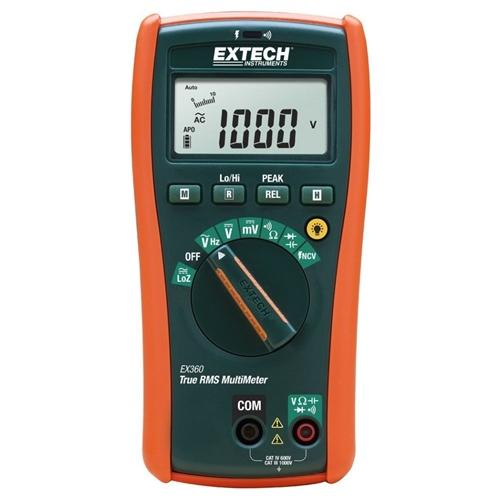

Extech EX360: 8 Function True RMS Multimeter

https://www.dotearth.ae/web/image/product.template/1917/image_1920?unique=e393111
(0 review)

439.00 AED 439.0 AED 439.00 AED VAT Excluded 459.00 AED

439.00 AED VAT Excluded 459.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Extech Instruments
    Warranty: 1 Year


    Name: Extech EX360: 8 Function True RMS Multimeter

    Key Features:

    • True RMS Measurements: Ensures accurate readings of AC voltage and current, even for distorted waveforms, in demanding applications.
    • Low Impedance Mode (LoZ): Eliminates false readings caused by "ghost voltages" in high-impedance circuits.
    • Large, Backlit LCD Display: Ensures easy readability in various lighting conditions.
    • Data Hold Function: Freezes readings on the display for easy recording and analysis.
    • Auto Power Off: Conserves battery life by automatically shutting down the meter after a period of inactivity.
    • Rugged and Durable: Designed to withstand drops and impacts, making it suitable for field use.
    • Comprehensive Measurement Capabilities: Measures AC/DC voltage, AC/DC current, resistance, capacitance, frequency, and temperature.


    Key Technical Specifications:

    • DC Voltage:
      • Range: 1000V AC/DC
    • AC Voltage (True RMS):
      • Range:  1000V AC/DC
    • DC Current:
      • Resolution: 0.1µA
      • Range: 60.00µA to 10.00A
      • Accuracy: ±1.0% ±3 digits
    • AC Current (True RMS):
      • Resolution: 0.1mA
      • Range: 600.0µA to 10.00A
      • Accuracy: ±1.5% ±5 digits
    • Resistance:
      • Resolution: 0.1Ω
      • Range: 60.00Ω to 40.00MΩ
      • Accuracy: ±1.0% ±3 digits
    • Capacitance:
      • Resolution: 1nF
      • Range: 20.00nF to 20.00µF
      • Accuracy: ±3.5% ±5 digits
    • Frequency:
      • Resolution: 0.01Hz
      • Range: 0.001Hz to 40MHz
      • Accuracy: ±0.5% ±5 digits
    • Temperature:
      • Resolution: 0.1°C
      • Range: -20.0°C to +70.0°C
      • Accuracy: ±2.0°C
    • Diode Test:
      • Voltage: Approx. 2.0V
    • Continuity Test:
      • Audible and visual indication
    • Safety:
      • CAT III 600V, CAT IV 300V
      • IEC 61010-1
