- Extech AN200: CFM/CMM Mini Thermo-Anemometer with built-in InfaRed Thermometer

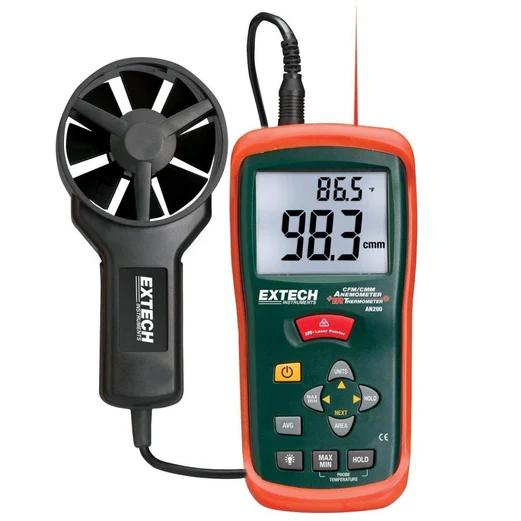

Extech AN200: CFM/CMM Mini Thermo-Anemometer with built-in InfaRed Thermometer
https://www.dotearth.ae/shop/extech-an200-cfm-cmm-mini-thermo-anemometer-with-built-in-infared-thermometer-1596 https://www.dotearth.ae/web/image/product.template/1596/image_1920?unique=dc4281eAN200 is a CFM/CMM Mini Thermo-Anemometer with built-in InfraRed Thermometer. Built-in non-contact IR Thermometer measures remote surface temperatures to 500°F (260°C) with 8:1 distance to spot ratio and Laser Pointer. This CFM/CMM Thermo-Anemometer can simultaneously display of Air Flow or Air Velocity plus Ambient Temperature. Easy to set area dimensions (cm2) are stored in the meter’s internal memory for the next power on. Additional features include: 20 point average for Air Flow and 3% velocity accuracy via low friction 2.83 in.D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable. Comes complete with 9-Volt battery, protective rubber holster, and case.
Brand: Extech Instruments |
Warranty: 1 Year |
Name:
Extech AN200: CFM/CMM Mini Thermo-Anemometer with built-in InfaRed Thermometer
Dual Functionality: Combines a CFM/CMM Thermo-Anemometer with a built-in non-contact InfraRed Thermometer, providing comprehensive airflow and temperature measurements in one device
High-Temperature Range: The IR thermometer measures remote surface temperatures up to 500°F (260°C) with an 8:1 distance-to-spot ratio, ensuring accurate readings from a safe distance2.
Simultaneous Display: Offers simultaneous display of air flow or air velocity along with ambient temperature, making it easy to monitor multiple parameters at once3.
Large LCD Backlit Display: Features a super large (9999 count) backlit LCD display for clear visibility in various lighting conditions2.
Memory Storage: Easy-to-set area dimensions (cm²) are stored in the meter’s internal memory for quick setup during the next use2.
High Accuracy: Provides a 3% velocity accuracy via a low friction 2.83" (72mm) ball bearing vane wheel on a 3.9ft (120cm) cable2.
Versatile Measurement Units: Measures air velocity in multiple units including FPM, MPS, MPH, KPH, and Knots, catering to diverse user needs2.
Portable and Durable: Compact design with a protective rubber holster, making it ideal for field use and ensuring durability1.
Complete Package: Comes with a vane sensor, 9V battery, and protective rubber holster, ready for immediate use2.
User-Friendly: Designed for ease of use with intuitive controls and a straightforward interface1.
Air Velocity
- Range: 80 to 5906 ft/min (0.4 to 30 m/s)
- Accuracy: ±3% of reading
- Resolution: 1 ft/min, 0.01 m/s
Air Volume
- Range: 0 to 999,999 CFM (Cubic Feet per Minute), 0 to 999,999 CMM (Cubic Meters per Minute)
- Resolution: 0.1 CFM/CMM
Temperature (Air)
- Range: 14 to 140°F (-10 to 60°C)
- Accuracy: ±6.0°F (3°C)
- Resolution: 0.1°F/°C
Temperature (InfraRed)
- Range: -58 to 500°F (-50 to 260°C)
- Accuracy: ±9.0°F/5.0°C (< -4°F); ±2% of reading or ±4°F/2°C (> -4°F)
- Resolution: 0.1°F/°C
General Features
- Display: Large backlit LCD (9999 count)
- Memory: Stores up to 8 area dimensions (ft² or cm²)
- Vane Wheel: 2.83" (72mm) ball bearing vane wheel on a 3.9ft (120cm) cable
- Power: 9V battery
- Accessories: Includes vane sensor, protective rubber holster, and carrying case
