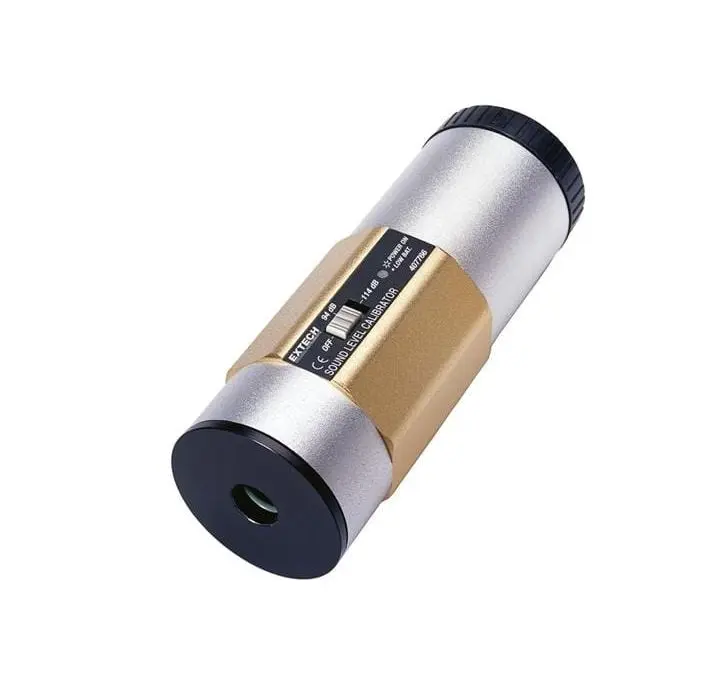

Extech 407766: 94/114dB Sound Calibrator

Extech 407766: 94/114dB Sound Calibrator

https://www.dotearth.ae/web/image/product.template/2318/image_1920?unique=def5ca7
(0 review)

1,650.00 AED 1650.0 AED 1,650.00 AED 1,699.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Extech
Warranty: 1 Year

Share

Key Features:

Dual-level calibration output (94 dB & 114 dB): Provides selectable reference levels to calibrate and verify sound level meters — useful for both everyday checks and high-level acoustic instruments.

1 kHz sine wave signal for accurate calibration: Outputs a stable 1 kHz tone to ensure your SLM’s microphone is reading correctly.

High accuracy and low distortion: Signal accuracy of ± 0.5 dB at 94 dB and ± 1.0 dB at 114 dB. Distortion (THD) is kept under 2% at 94 dB.

Compatibility with standard microphones: Designed for use with sound level meters that have 0.5-inch or 1.0-inch microphones — common in professional acoustic instruments.

Meets international calibration standards: Compliant with IEC 60942 (1997-11) standard for sound calibrators — ensuring reliability and industry-recognized calibration quality.

Rugged, portable housing: Durable die-cast aluminum body provides reliability and longevity; compact and lightweight for field or lab use.

Easy operation — quick calibration check: Simple 3-position switch (OFF / 94 dB / 114 dB) and LED power indicator make calibration fast, clear and user-friendly.

Complete kit included: Comes with two 9 V batteries, screwdriver, and carrying case — ready to use out of the box for calibration tasks.

Key Technical Specifications:

Output Sound Pressure Level: 94 dB and 114 dB calibration signals.

Signal Frequency: 1,000 Hz sine wave.

Frequency Accuracy: ± 5%.

Sound Level Accuracy: ± 0.5 dB at 94 dB; ± 1.0 dB at 114 dB.

Total Harmonic Distortion (THD): < 2% at 94 dB; < 5% at 114 dB.

Compatible Microphone Size: Designed for sound level meters with 0.5″ or 1.0″ microphones.

Operating Temperature Range: 0 to 50 °C (32 to 122 °F).

Power Supply: Two 9 V batteries (alkaline).

Power Consumption: Approx. 10 mA DC.

Physical Dimensions: 50 mm diameter × 127 mm length (approx. 2.2″ × 5.6″).

Weight: Approx. 0.75 lbs (≈ 340 g).

Standards Compliance: Meets IEC 60942 (class 2) standard for sound calibrators.

Included Accessories: Two 9 V batteries, screwdriver, carrying case, and user manual.
