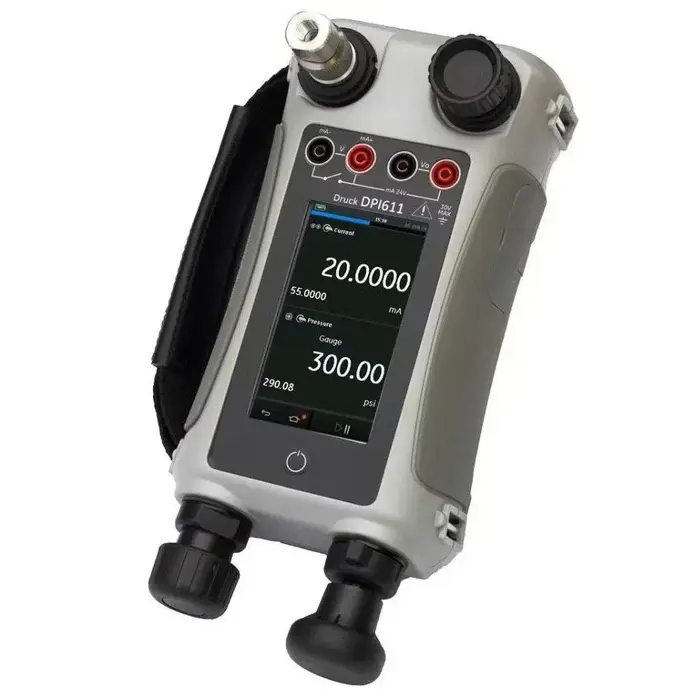

Druck DPI611 Handheld Pressure Calibrator -1 to 1 bar

Key Features:

Compact, handheld design – 50% smaller and 33% lighter than its predecessor, the DPI610 series.

Full self-contained pressure calibration system – Combines pressure generation, signal measurement and loop power in one unit.

Range from -1 to +1 bar (-14.5 to +15 psi) gauge version – Ideal for low-pressure calibrations (also available in other ranges).

High accuracy – Pressure accuracy of 0.0185 % FS (full scale) typical at 10°-30 °C for the -1 to 1 bar range.

Quick pressure generation & vacuum capability – Capable of generating 0 to 20 bar in under 30 seconds, plus 95% vacuum capability for broader calibration tasks.

Simplified touchscreen interface with applications dashboard – Quick task selection, favourites storage and intuitive setup to speed workflow.

Robust and field-ready design – Rugged housing, tool-less quick-fit pressure connection adaptors and ergonomic hand strap make it suitable for on-site calibration.

Electrical I/O and loop power support – Includes measurement/source of mA, V, mV, switch contacts and provides 24 V loop power to support transmitter and loop calibrations.

Data documentation and automation friendly – Features pass/fail error calculation, multi-channel data logging, USB connectivity and compatibility with calibration software (e.g., 4Sight).

Wide environmental and connectivity features – Large colour touchscreen display, USB ports, IP54 rated (dust & splash protected) for reliable performance in the field.

Key Technical Specifications:

Pressure measurement range: -1 to +1 bar (-14.5 to +15 psi) gauge.

Accuracy (gauge mode, 10 °C to 30 °C, one year): 0.0185 % FS (non-linearity, hysteresis, repeatability)

Total uncertainty (inclusive of temperature variation): 0.025 % FS typical.

Resolution: 0.01 bar (for the indicated range).

Over-pressure protection: Up to 150 % FS internal relief valve.

Pressure generation: Capable of generating up to 20 bar / 300 psi in under ~30 seconds (for higher-range models).

Vacuum capability: Can generate ~95% vacuum (-0.95 bar approx).

Display: Colour touchscreen, 110 mm (4.3″) diagonal, 480 × 272 pixels.

Memory & data logging: 8 GB internal user memory for automated procedures, calibration data and log files.

Environmental / general specs:

• Operating temperature: -10 °C to +50 °C (14 °F to 122 °F) (when on batteries).
• Storage temperature: -20 °C to +70 °C (-4 °F to 158 °F).
• Ingress protection: IP54 (protected against dust and splashing water).
• Size (L×W×H): ≈ 270 × 130 × 120 mm (10.6″ × 5.1″ × 4.7″).
• Weight: ≈ 1.96 kg (4.3 lbs) with batteries (for full unit).

Pressure connection: Tool-less quick-fit connection; supplied with G1/8 female and 1/8” NPT female adaptors.

Electrical measurement/source capability (in addition to pressure):

• DC Voltage: ±200 mV, ±2 000 mV, ±20 V, ±30 V.
• Current: ±20 mA, ±55 mA.
• Source: 10 V fixed (<25 mA max), 24 V fixed (<25 mA max), 0-24 mA source (internal loop power).
