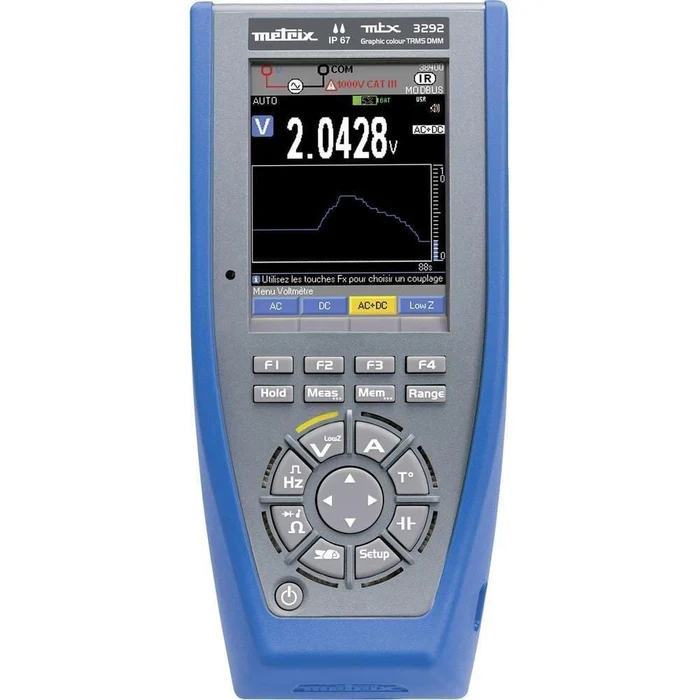

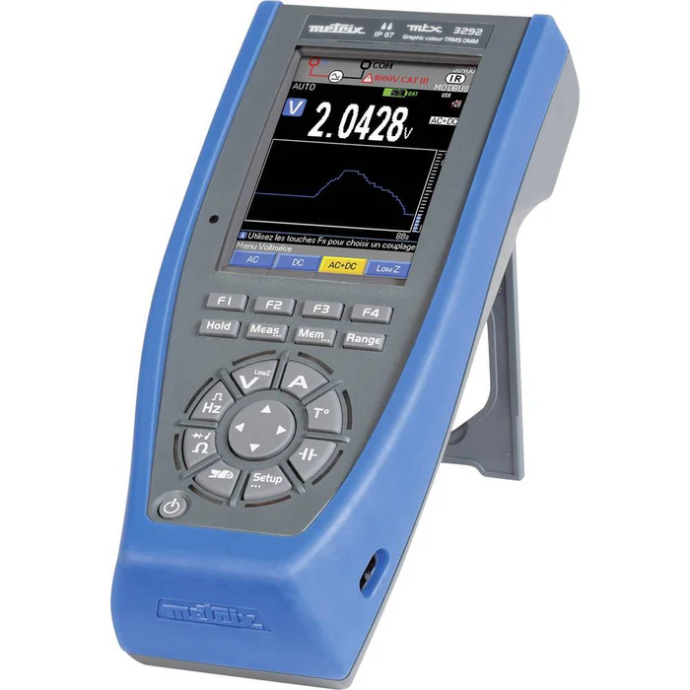

Color Graphic Display: Provides clear, intuitive visualization of measurement data with trend graphs, bar charts, and histograms for easier analysis and troubleshooting.
True RMS Measurements: Ensures accurate readings of complex AC signals, including distorted waveforms, for reliable results in real-world applications.
High Safety Rating: High CAT IV 600V / CAT III 1000V safety rating provides superior protection for users working in demanding electrical environments.
Advanced Communication: Bluetooth and USB connectivity allow for easy data transfer, remote control, and integration with other devices and software.
Data Logging Capabilities: Records measurements over time for trend analysis, data logging, and documentation.
Versatile Measurement Functions: Covers a wide range of electrical parameters, including AC/DC voltage, current, resistance, frequency, capacitance, and more.
Ergonomic Design: Compact and ergonomic design ensures comfortable and secure grip for prolonged use.
Rugged and Durable: Designed to withstand the rigors of professional use, ensuring long-term reliability and minimizing downtime.
Key Technical Specifications:
Display:
Large, high-resolution color graphic display for intuitive and clear data visualization.
100,000-count display capability for precise measurements.
Measurement Functions:
AC/DC Voltage: Up to 1,000V.
AC/DC Current: Up to 10A.
Resistance: Up to 100 MΩ.
Capacitance: From 1 pF to 60 mF.
Frequency: From 0.5 Hz to 1 MHz.
Temperature: -200°C to +1,200°C (-328°F to +2,192°F) with compatible probes.
True RMS Accuracy:
Ensures accurate measurements for non-linear and distorted signals.
Safety Ratings:
Complies with IEC 61010 standards.
CAT IV 600V / CAT III 1,000V safety rating for maximum protection in industrial and high-voltage environments.
Advanced Data Logging:
Built-in memory for up to 10,000 measurements with timestamps.
Data can be stored and retrieved for comprehensive analysis.
Connectivity Options:
Equipped with USB and Bluetooth interfaces for seamless data transfer.
Compatible with Chauvin Arnoux DataView software for advanced analysis and reporting.
Power Supply:
Operates on a rechargeable lithium-ion battery for extended usage.
Features an auto power-off function for energy efficiency.
Durable Design:
Robust, ergonomic design with IP67 rating for protection against dust, water, and tough working conditions.
Drop-resistant for reliable performance in field environments.
Additional Features:
Automatic and manual ranging modes.
Continuity buzzer and diode testing.
Harmonics measurement up to the 25th order for detailed signal analysis.
Included Accessories:
Supplied with test leads, alligator clips, a magnetic multi-position stand, and a carrying case.
