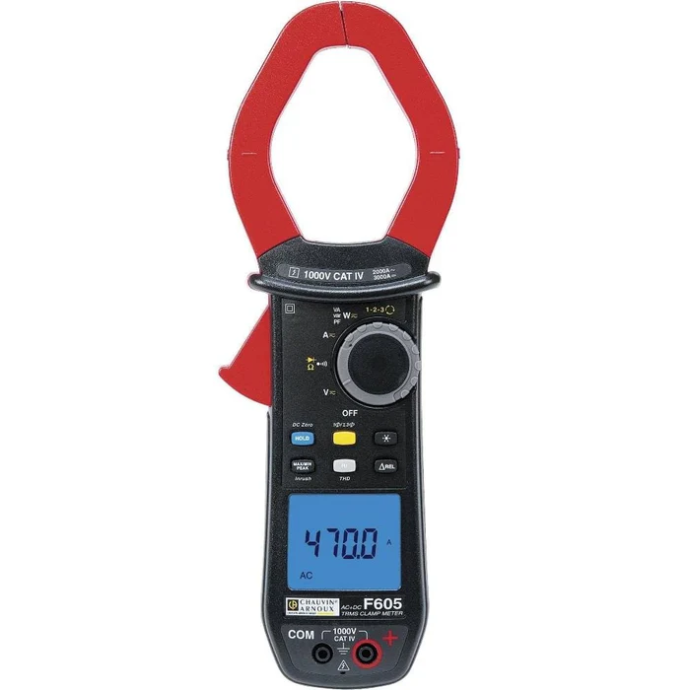

Chauvin Arnoux F605 True RMS AC/DC digital clamp meter

https://www.dotearth.ae/web/image/product.template/2001/image_1920?unique=fc45ebb
(0 review)

2,772.00 AED 2772.0 AED 2,772.00 AED 2,899.00 AED

Not Available For Sale

  • Brand
  • Warranty

This combination does not exist.

Contact Us
Brand: Chauvin Arnoux
Warranty: 1 Year

Share

Key Features:

  • True RMS Measurement: Ensures accurate readings for both AC and DC currents, even in non-sinusoidal waveforms, providing reliable results in various applications.
  • AC/DC Current Measurement: Measures both AC and DC currents, offering flexibility and versatility in different electrical environments.
  • Compact and Lightweight: Easy to handle and maneuver in tight spaces.
  • Large, Backlit LCD Display: Provides clear and easy-to-read measurements, even in low-light conditions.
  • Data Hold Function: Freezes readings on the display for convenient recording and analysis.
  • Low Battery Indication: Warns users of low battery levels, preventing unexpected shutdowns.
  • Rugged and Durable Design: Built to withstand tough jobsite conditions with a durable housing and protective rubber overmold.
  • Ergonomic Design: Comfortable to hold and use for extended periods, reducing user fatigue.
  • Auto/Manual Range Selection: Offers flexibility and convenience in different measurement scenarios.
  • Safety Rated: Meets relevant safety standards for user protection.


​Key Technical Specifications:

Current Measurement Range

  • AC Current: 0.15A to 2000A True RMS.
  • DC Current: 0.15A to 3000A.
  • Designed for high-precision current measurement in industrial systems.

Voltage Measurement Range

  • AC Voltage: 0.1V to 1000V RMS.
  • DC Voltage: 0.1V to 1000V.
  • Handles high-voltage applications with superior accuracy.

True RMS Technology

  • Ensures accurate measurements for both sinusoidal and non-sinusoidal waveforms, critical for modern power systems.

Resistance Measurement

  • Range: 0.1Ω to 99.99kΩ.
  • Enables circuit testing and fault diagnostics.

Frequency Measurement

  • Range: 5Hz to 20kHz.
  • Provides precise frequency analysis for AC systems.

Power Measurement

  • Measures active, reactive, and apparent power, along with power factor for in-depth energy analysis.
  • Ensures comprehensive insights into electrical system performance.

Harmonic Analysis

  • Supports harmonic measurements up to the 25th order for power quality monitoring.

Jaw Opening Capacity

  • Maximum Conductor Size: 60mm.
  • Capable of handling large cables and busbars.

Safety Ratings

  • CAT IV 1000V: High-level protection for industrial and utility-grade environments, ensuring operator safety.

Inrush Current Measurement

  • Accurately captures transient currents during equipment startup or system changes.

Data Logging and Storage

  • Memory Capacity: Stores up to 300 measurements for tracking and analysis.
  • Ideal for maintenance and diagnostic reporting.

Display

  • Large backlit LCD with an integrated bar graph for easy reading in any lighting condition.

Durability

  • Built to withstand rugged industrial environments with a robust design.

Operating Temperature Range

  • Suitable for extreme environments, ensuring reliable operation over a wide temperature range.
