  3. Chauvin Arnoux F205 True RMS AC/DC Digital Power Harmonic Clamp Meter

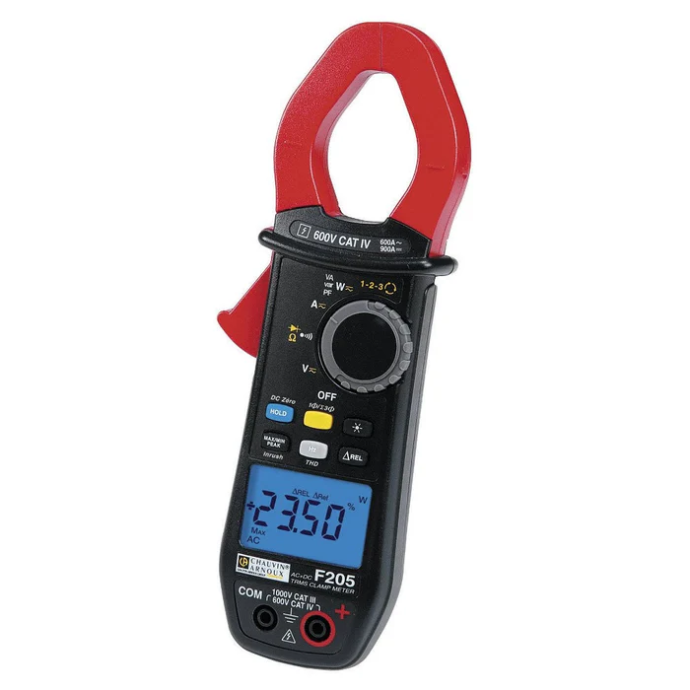

Chauvin Arnoux F205 True RMS AC/DC Digital Power Harmonic Clamp Meter

https://www.dotearth.ae/web/image/product.template/2003/image_1920?unique=e3dfad3
(0 review)

1,299.00 AED 1299.0 AED 1,299.00 AED VAT Excluded 1,349.00 AED

1,299.00 AED VAT Excluded 1,349.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Chauvin Arnoux
    Warranty: 1 Year


    Name: Chauvin Arnoux F205 True RMS AC/DC Digital Power Harmonic Clamp Meter

    Key Features:

    • True RMS Measurement: Ensures accurate readings for both AC and DC currents, even in non-sinusoidal waveforms, providing reliable results in complex electrical environments.
    • Power Measurements: Measures key parameters like voltage, current, power (active, reactive, apparent), power factor, and energy consumption.
    • Harmonics Analysis: Detects and analyzes harmonic distortion, identifying potential sources of power quality issues.
    • AC/DC Current Measurement: Measures both AC and DC currents, offering flexibility and versatility in different electrical environments.
    • Large, Backlit LCD Display: Provides clear and easy-to-read measurements, even in low-light conditions.
    • Data Hold Function: Freezes readings on the display for convenient recording and analysis.
    • Low Battery Indication: Warns users of low battery levels, preventing unexpected shutdowns.
    • Rugged and Durable Design: Built to withstand tough jobsite conditions with a durable housing and protective rubber overmold.
    • Ergonomic Design: Comfortable to hold and use for extended periods, reducing user fatigue.
    • Auto/Manual Range Selection: Offers flexibility and convenience in different measurement scenarios.
    • Safety Rated: Meets relevant safety standards for user protection.


    ​Key Technical Specifications:

    Current Measurement Range

    • AC Current: 0.15A to 600A True RMS.
    • DC Current: 0.15A to 900A.
    • Delivers accurate current readings for industrial and commercial applications.

    Voltage Measurement Range

    • AC Voltage: 0.1V to 1000V True RMS.
    • DC Voltage: 0.1V to 1000V.
    • Designed to handle high-voltage measurements with precision.

    True RMS Technology

    • Ensures precise measurements for both sinusoidal and non-sinusoidal waveforms, suitable for modern power systems.

    Resistance Measurement

    • Range: 0.1Ω to 99.99kΩ.
    • Facilitates continuity testing and fault detection.

    Frequency Measurement

    • Range: 5Hz to 20kHz.
    • Provides accurate frequency analysis for diverse applications.

    Power Measurement

    • Measures active, reactive, and apparent power, along with power factor for comprehensive energy analysis.
    • Supports power monitoring and diagnostics.

    Harmonic Analysis

    • Monitors harmonics up to the 25th order for power quality evaluation and troubleshooting.

    Inrush Current Measurement

    • Captures transient current surges during equipment startup or switching.

    Jaw Opening Capacity

    • Maximum Diameter: 34mm (1.34 inches).
    • Accommodates standard cable sizes for convenient use.

    Safety Ratings

    • CAT IV 600V, CAT III 1000V: Ensures safety for operation in high-energy environments.

    Display

    • Large, backlit LCD with bar graph functionality for enhanced visibility and real-time data representation.

    Data Logging and Storage

    • Stores up to 300 measurements for easy review and reporting.

    .
