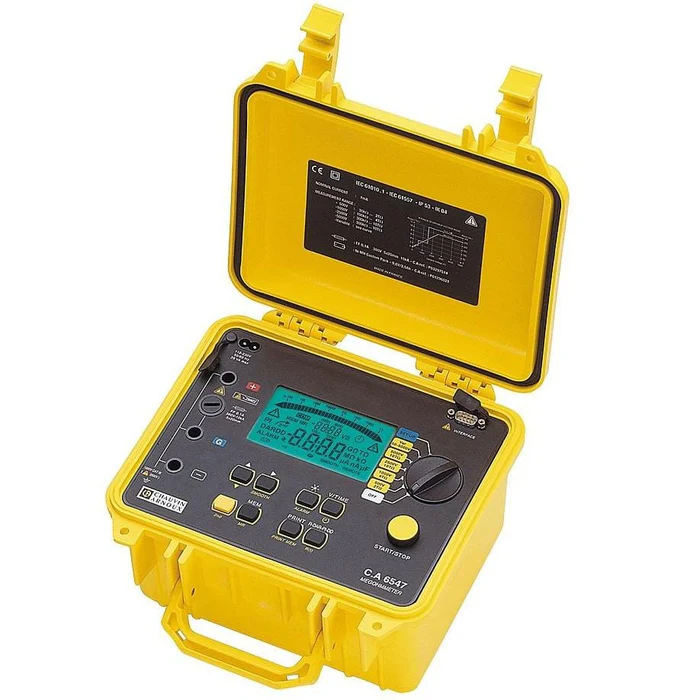

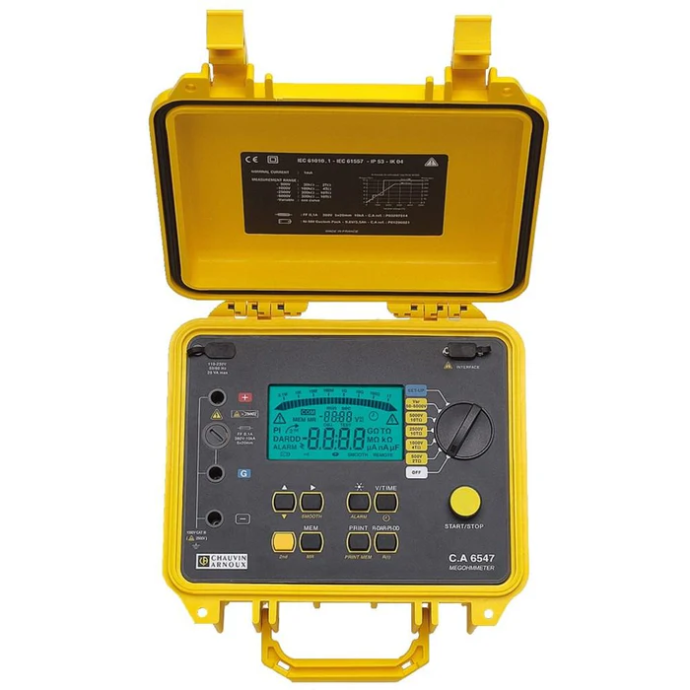

Chauvin Arnoux CA6547 Digital Insulation Tester, 5000V

​Key Features:

The Chauvin Arnoux CA6547 is a robust and versatile 5kV digital insulation tester designed for demanding applications in various industries. It offers a wide range of features for comprehensive insulation diagnostics and predictive maintenance.

Insulation Testing Capabilities:

• High Voltage Testing up to 5kV: Performs insulation resistance measurements at test voltages up to 5000V, ideal for high-voltage equipment and cables.
• Wide Measurement Range: Measures insulation resistance from 0.01 MΩ to 10 TΩ, covering a broad spectrum of insulation materials and equipment.
• Programmable Testing: Offers adjustable test voltages, test durations, and ramp rates for customized testing procedures.
• Diagnostic Test Modes: Includes Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Step Voltage testing for in-depth insulation analysis.
• Automatic Discharge: Safely discharges capacitive energy from the tested circuit after insulation testing, ensuring operator safety.

Measurement and Display:

• Large Backlit LCD: Provides clear and easy-to-read display of measurements, test parameters, and diagnostic results.
• Real-time Graphing: Displays insulation resistance trends in real-time for immediate analysis of insulation condition.
• Data Logging and Transfer: Stores test results for later analysis and report generation. Data can be transferred via USB to a PC.

Safety and Durability:

• CAT IV 600V Safety Rating: Ensures user safety in high-energy electrical environments.
• Rugged and Portable Design: Built to withstand harsh job site conditions for reliable performance in the field.
• Double Insulation: Provides enhanced protection against electrical shock.
